Climate Control Unit Installation [Manual Air Conditioner]




CLIMATE CONTROL UNIT INSTALLATION [MANUAL AIR CONDITIONER]

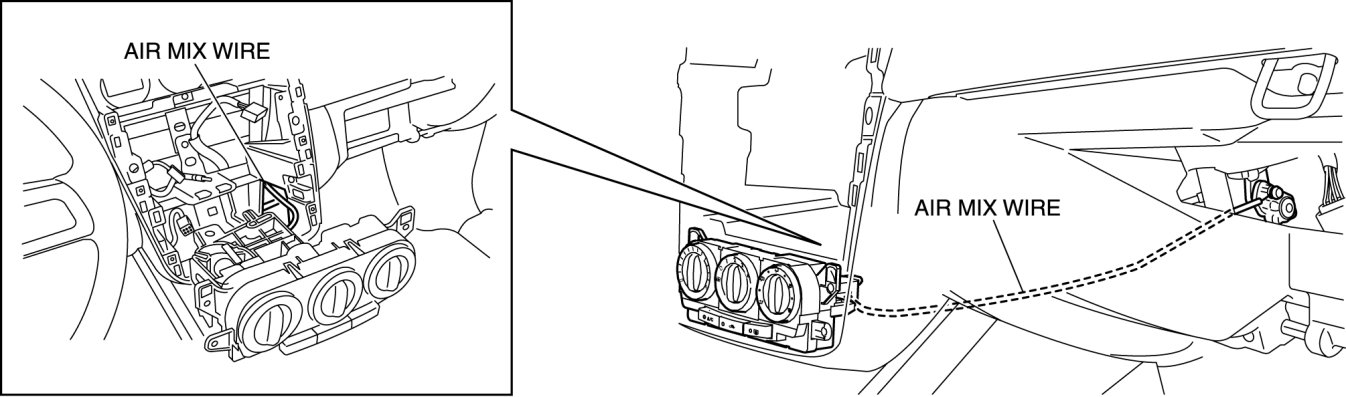

1. Pass air mix wire through the following routes then connect to A/C unit. (Manual air conditioner)






2. Install the following parts:
a. Climate control unit to the dashboard.

b. Audio unit Audio Unit Removal/Installation

c. Center panel Center Panel Removal/Installation

d. Lower panel Lower Panel Removal/Installation

e. Console Console Removal/Installation

3. Adjust the air mix wire. Adjustments

4. Install the globe compartment.
