Home >> Mazda >> 2009 >> CX-7 AWD L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Audio Control Switch/Cruise Control Switch/Audio Control Switch Illumination/Cruise Control Switch Illumination/Clock Spring
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

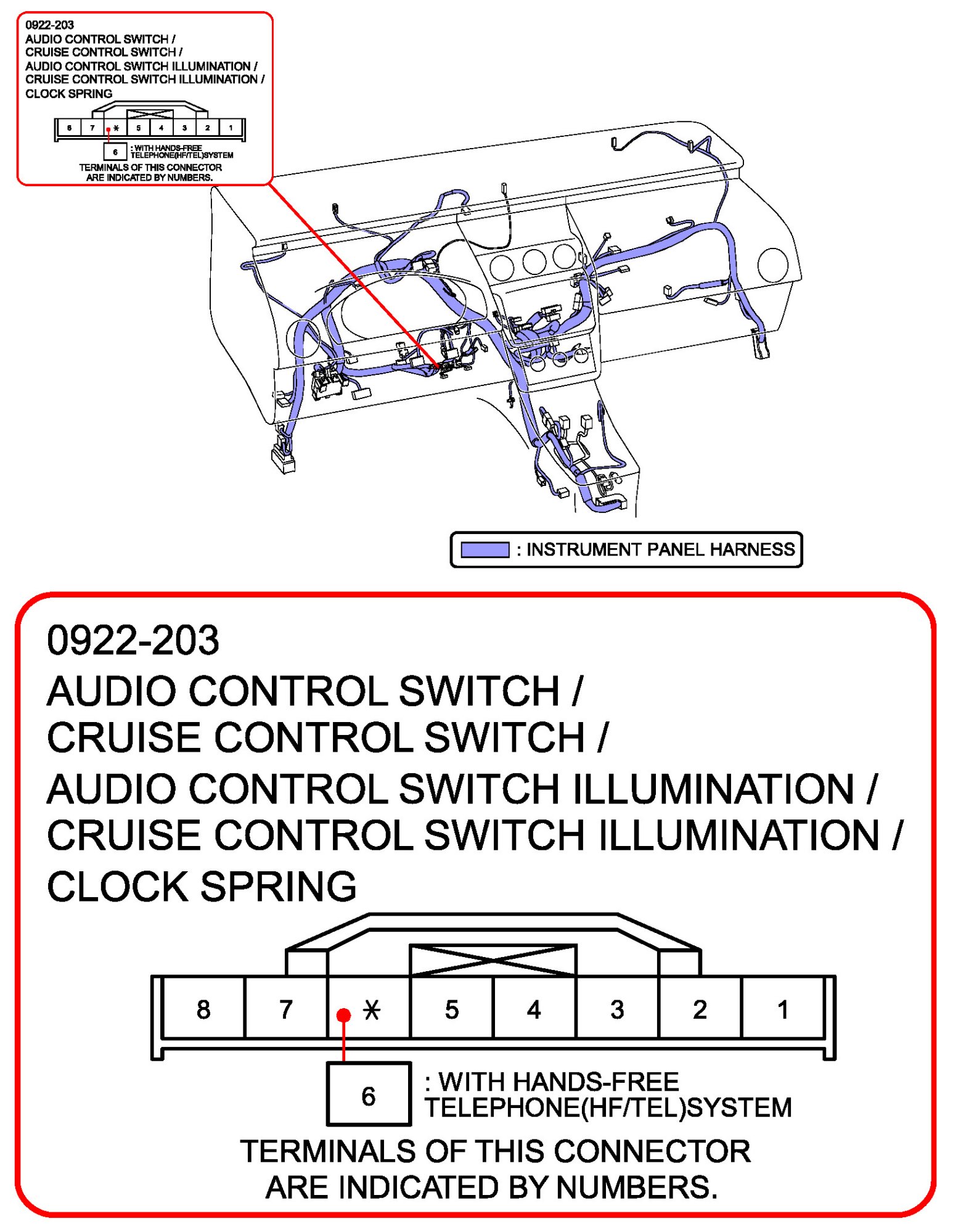

Audio Control Switch/Cruise Control Switch/Audio Control Switch Illumination/Cruise Control Switch Illumination/Clock Spring

Audio Control Switch/Cruise Control Switch/Audio Control Switch Illumination/Cruise Control Switch Illumination/Clock Spring:
