Drive/Propeller Shaft




PROPELLER SHAFT STRUCTURAL VIEW

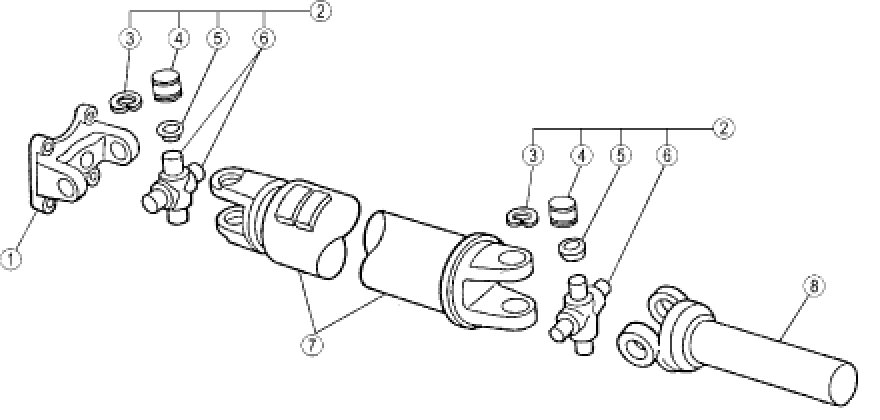

Front Propeller Shaft (4WD)

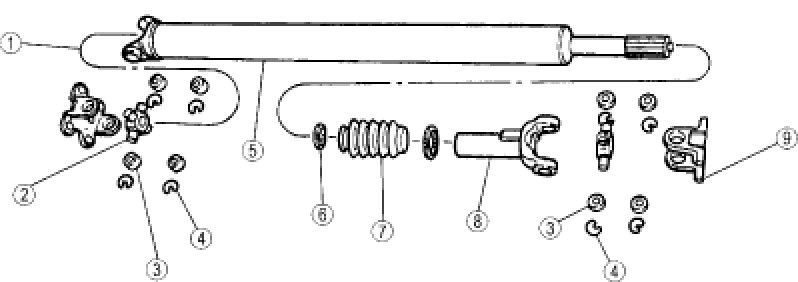

Rear Propeller Shaft (4WD)

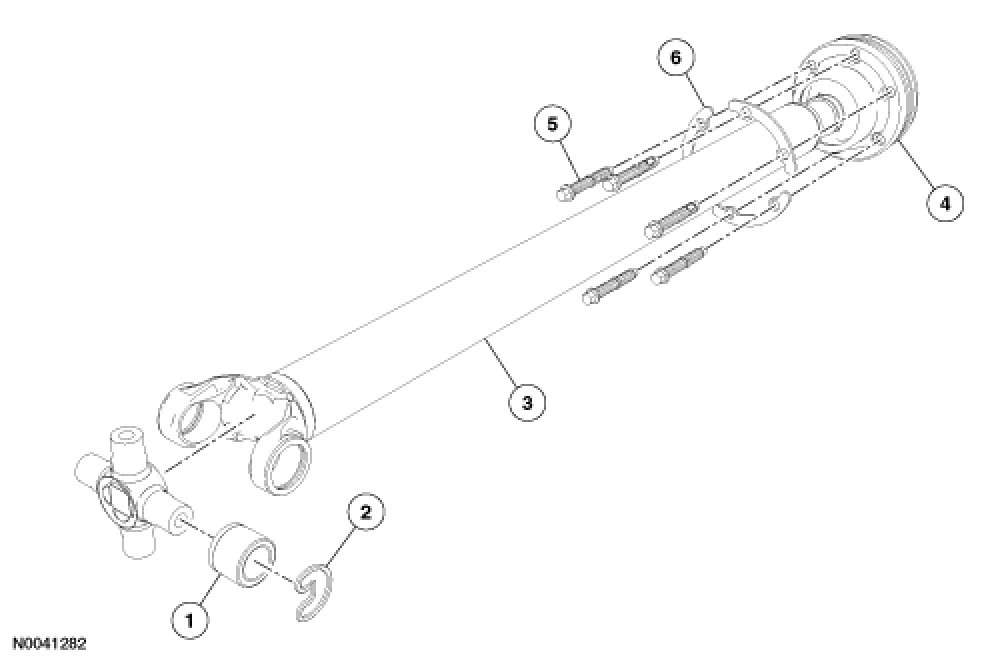

Rear Propeller Shaft (4x2)
