Throttle Position Sensor Connector End View (C1189)

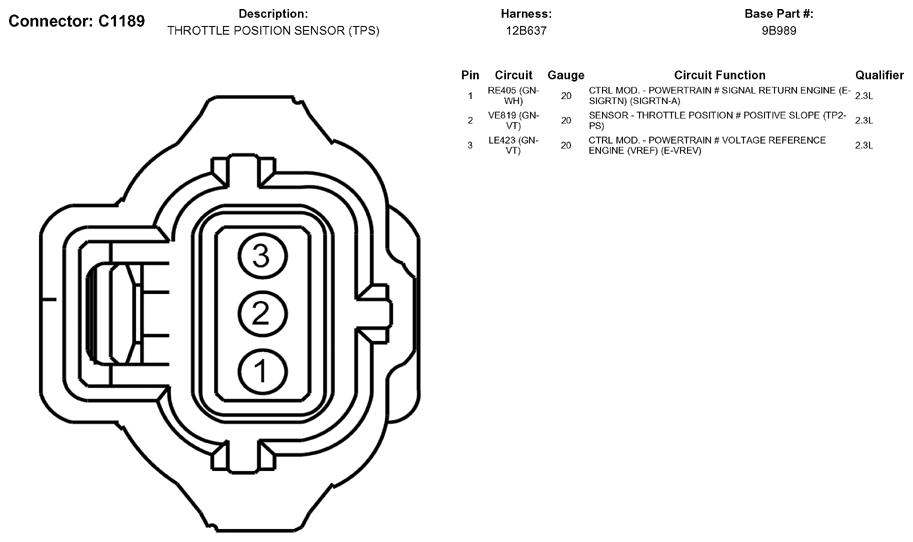

Fig 1: Throttle Position Sensor Connector End View (C1189)
