Vehicles Without Auto Light/Wiper System

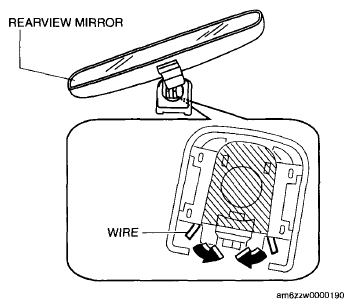

- Push the wire in the direction of the arrow shown in the figure.
Courtesy of MAZDA MOTORS CORP.

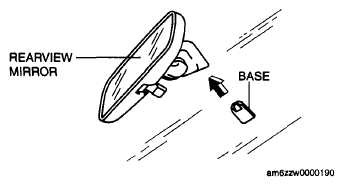

- Insert a flathead screwdriver between the rearview mirror and base.

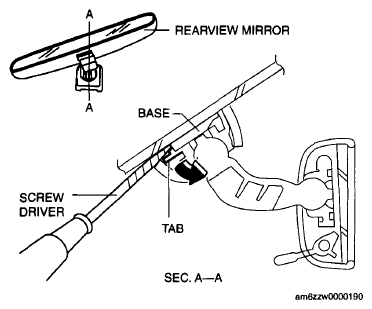

- Insert a tape-wrapped flathead screwdriver to the position shown in the figure and press the center part of the spring.
Courtesy of MAZDA MOTORS CORP.
- Pull out the rearview mirror toward the vehicle rear.
Courtesy of MAZDA MOTORS CORP.
