Oil Pan, Engine

Install the oil pan and the bolts to the cylinder block.

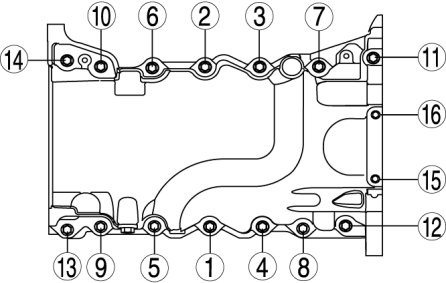

Tighten the bolts in the order shown in the figure.





Tightening torque 3.0 Nm {31 kgf-cm, 27 in-lbf}
Loosen the bolts 180°.

Tighten the bolts in the order shown in the figure.





Tightening torque
