AW6AX-El Automatic Transaxle Specifications

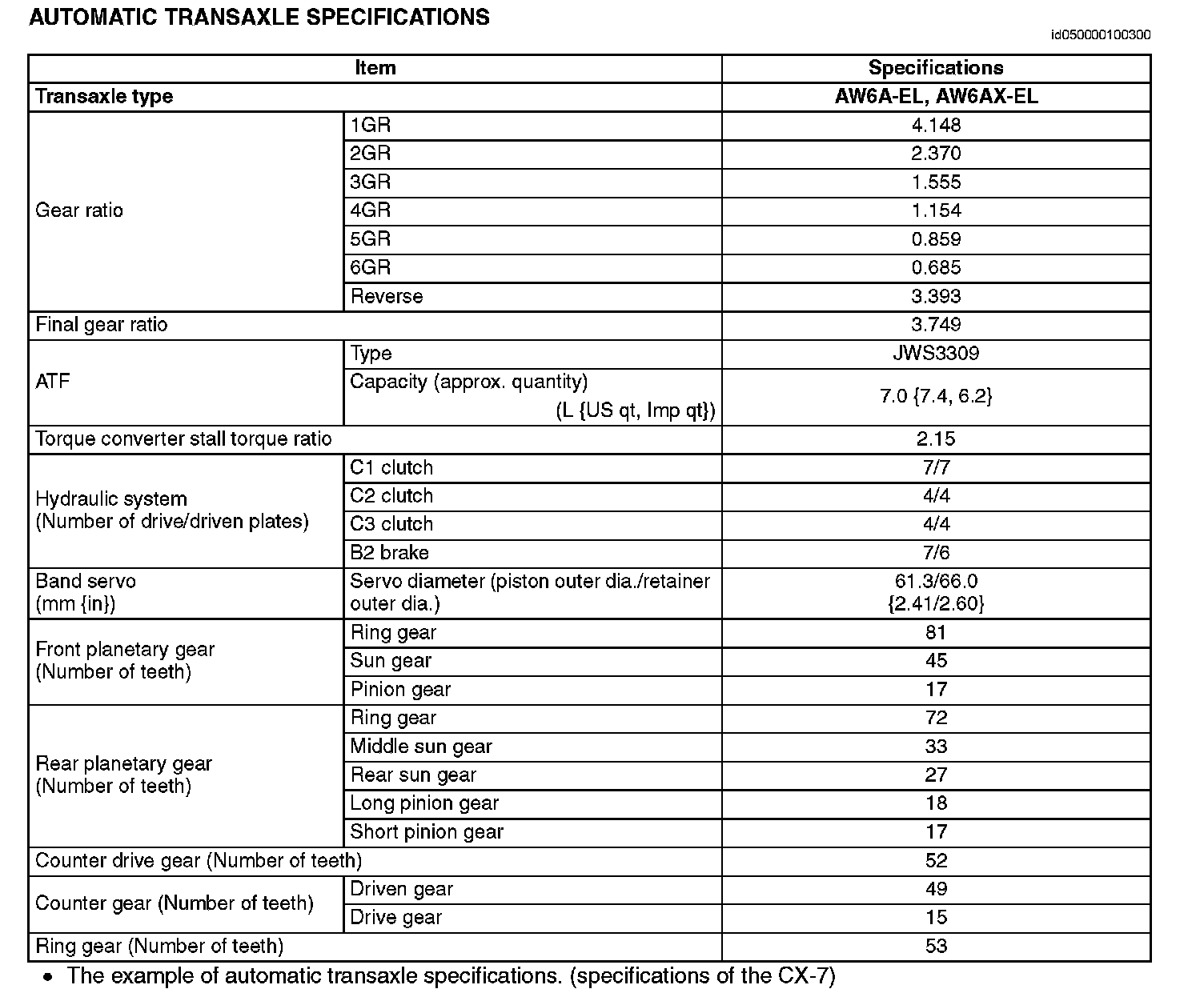

AUTOMATIC TRANSAXLE SPECIFICATIONS
Automatic Transaxle Specifications:
