Power Window Subswitch RF

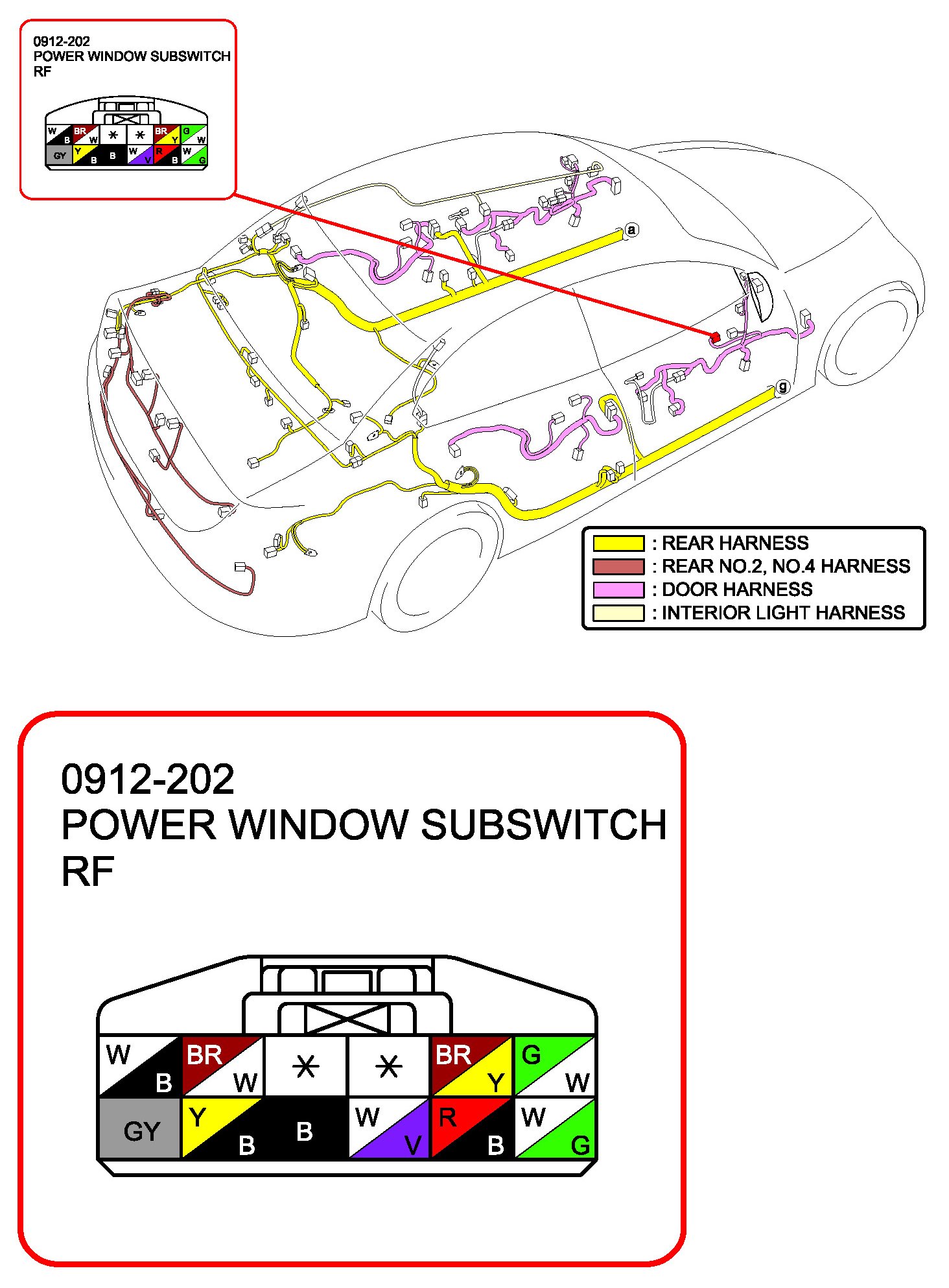

Power Window Subswitch RF (Without Retractable Outer Mirror):



Power Window Subswitch RF (With Retractable Outer Mirror):
