Climate Control Unit

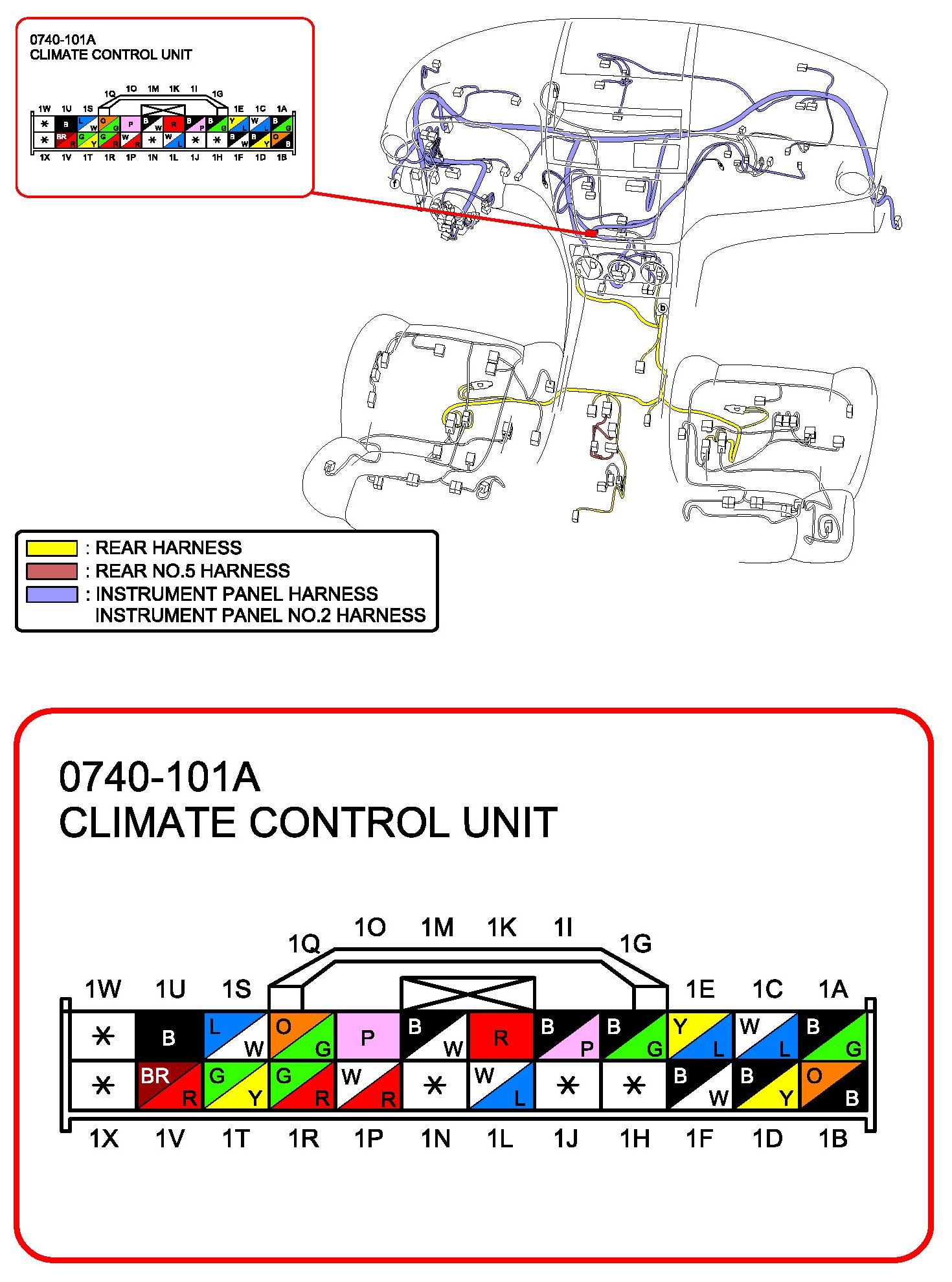

Climate Control Unit (Manual A/C):

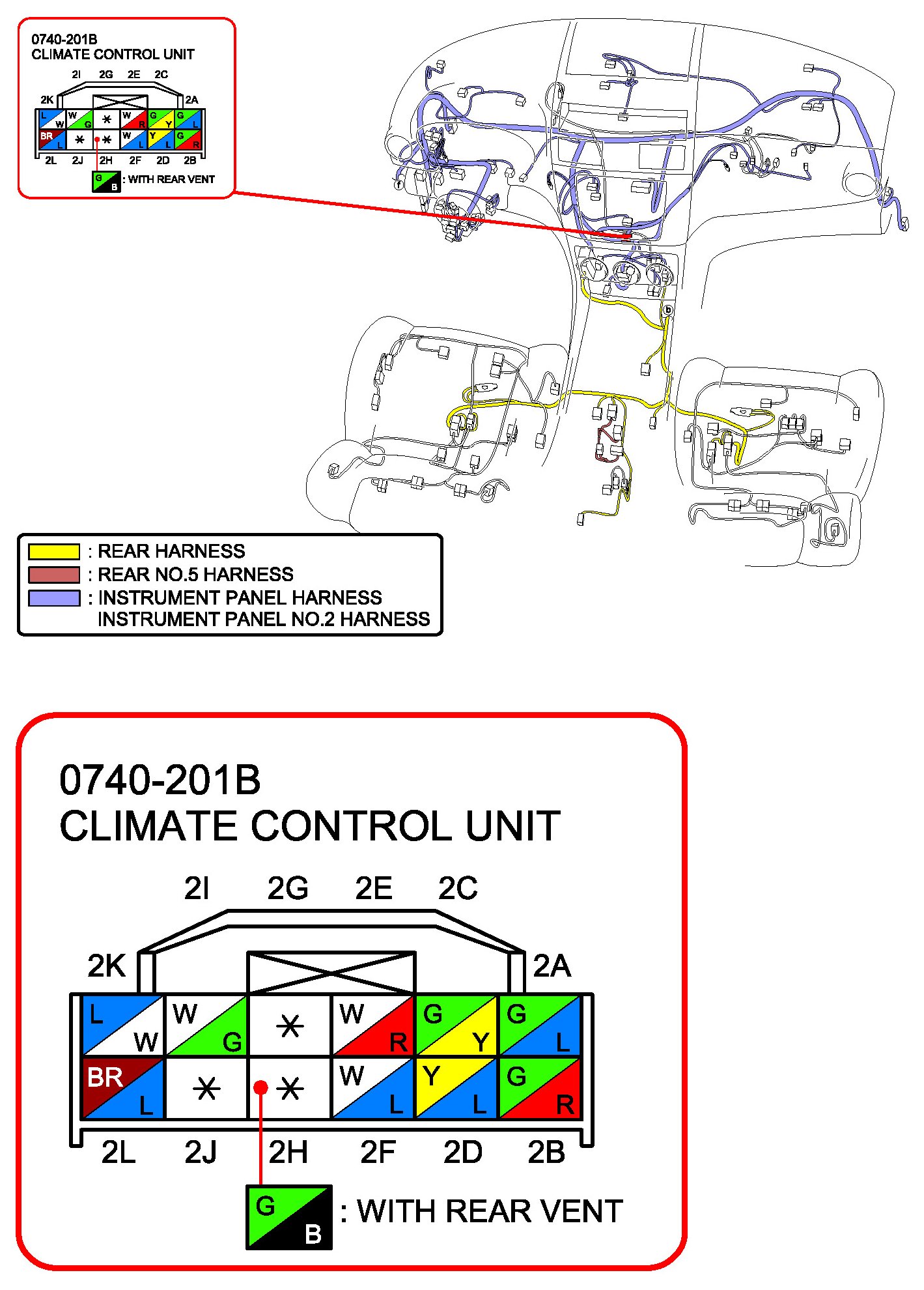

Climate Control Unit (Manual A/C):

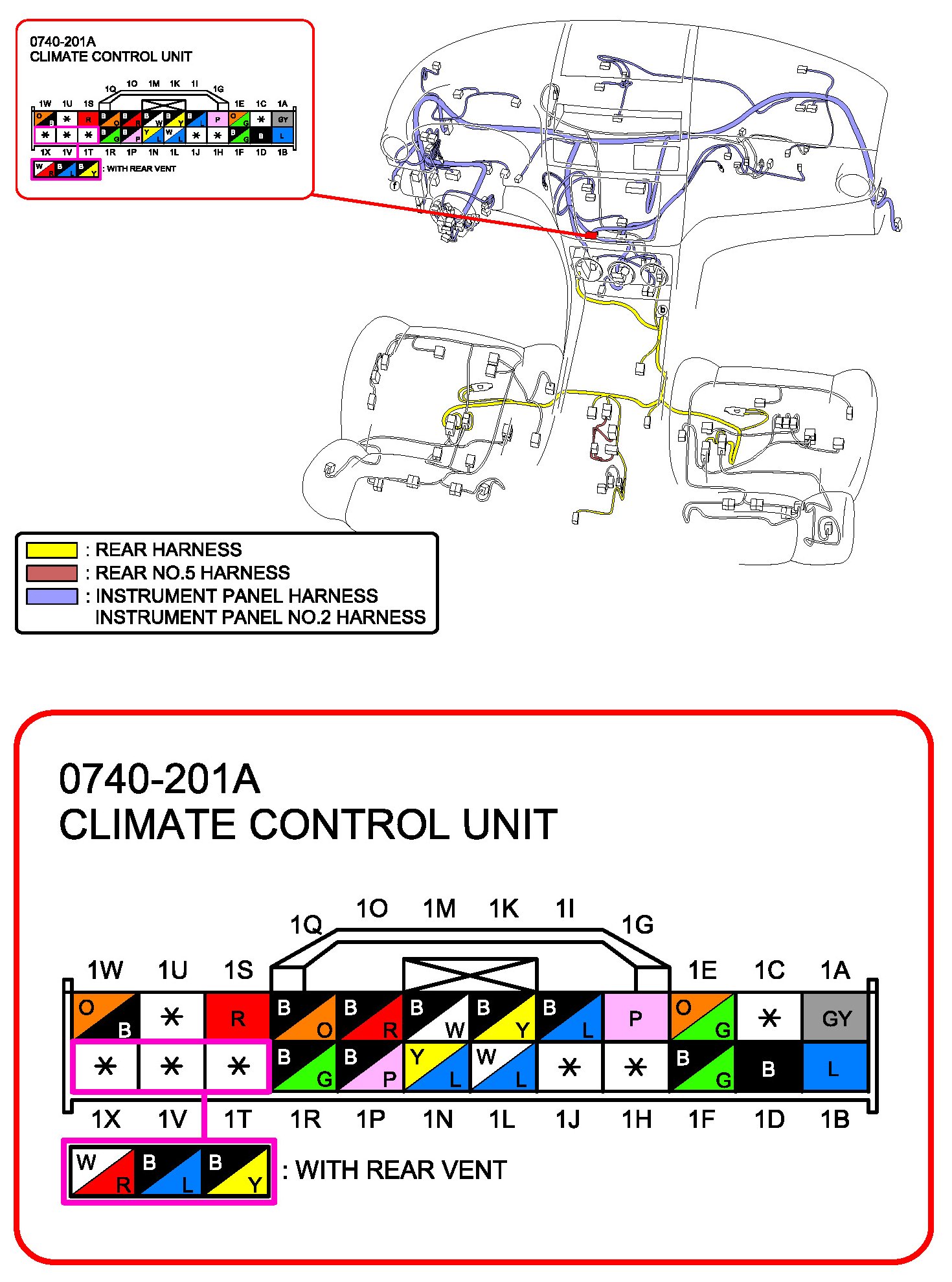

Climate Control Unit (Auto A/C):

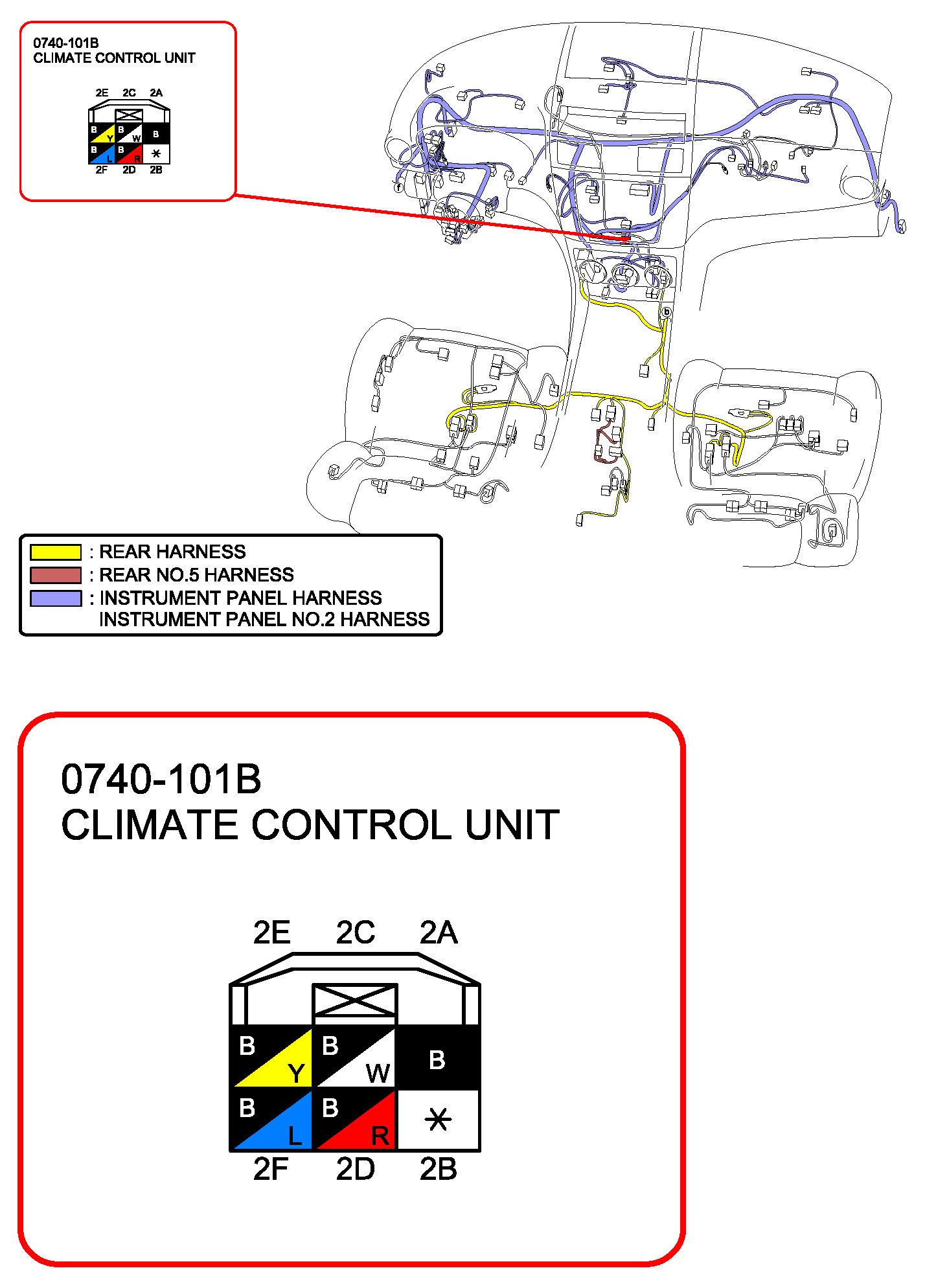

Climate Control Unit (Auto A/C):
