Steering Angle Sensor: Testing and Inspection

STEERING ANGLE SENSOR INSPECTION

1. Remove the meter hood Meter Hood Removal/Installation

2. Remove the column cover Service and Repair

3. Remove the steering angle sensor connector.

4. Connect battery positive voltage to terminal A and ground to terminal D of the steering angle sensor.

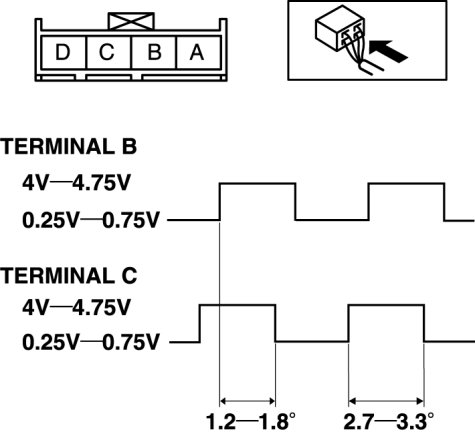

5. Turn the steering wheel to the right and left, and verify that the voltage and pulses at the terminals are as shown in the figure.






- If not as specified, replace the steering angle sensor.
