Trunk Lamp: Testing and Inspection

CARGO COMPARTMENT LIGHT INSPECTION

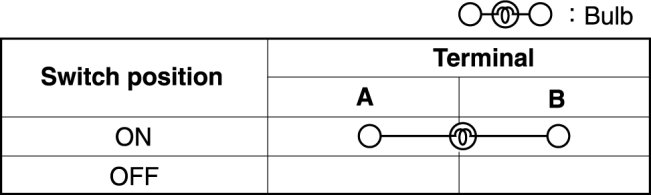

1. Verify that the continuity between the cargo compartment light terminals is as indicated in the table.






- If not as indicated in the table, replace the cargo compartment light.
