Daytime Running Lamp

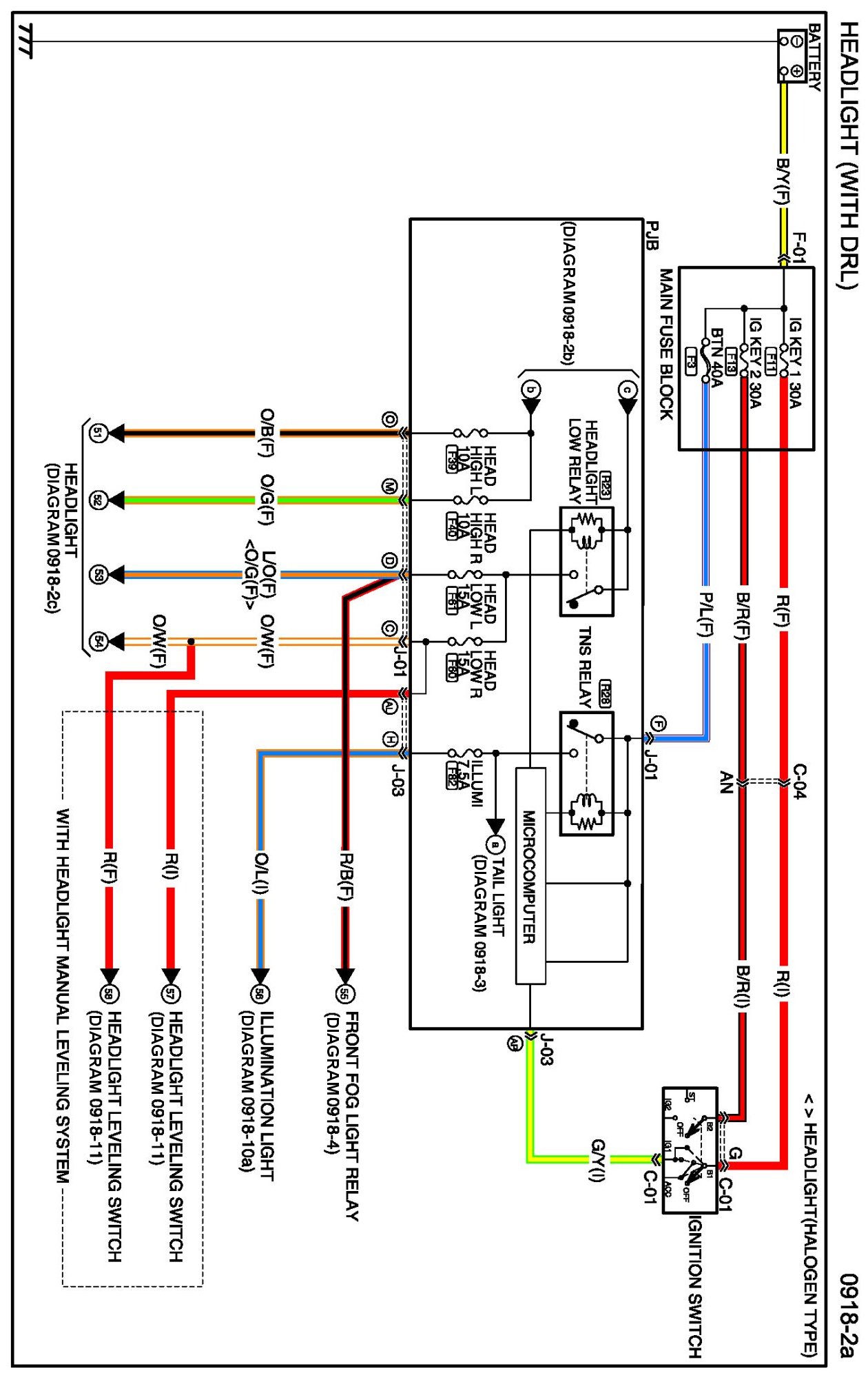

Diagram 0918-2a:

Connectors 0918-2a:

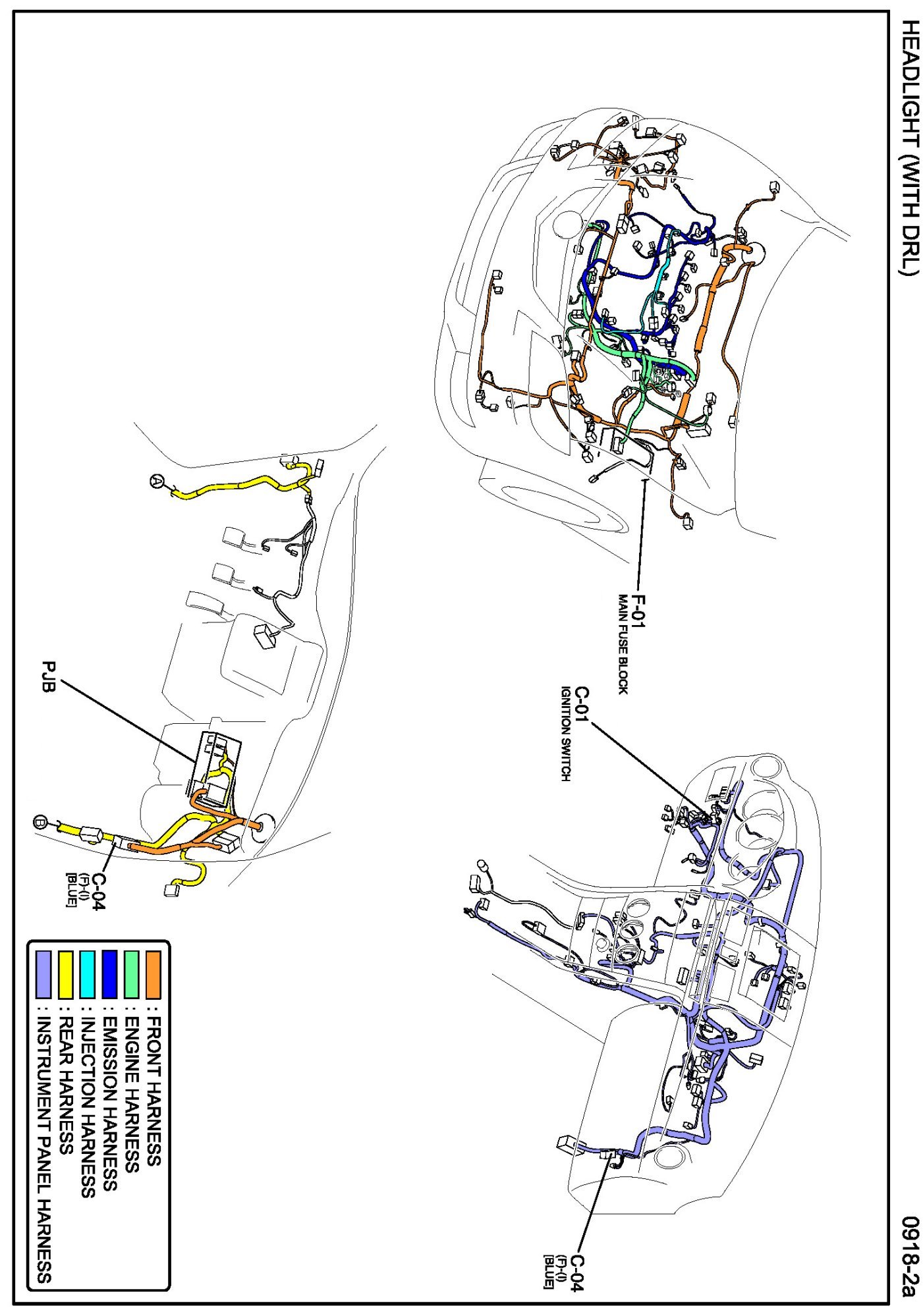

Routing View 0918-2a:

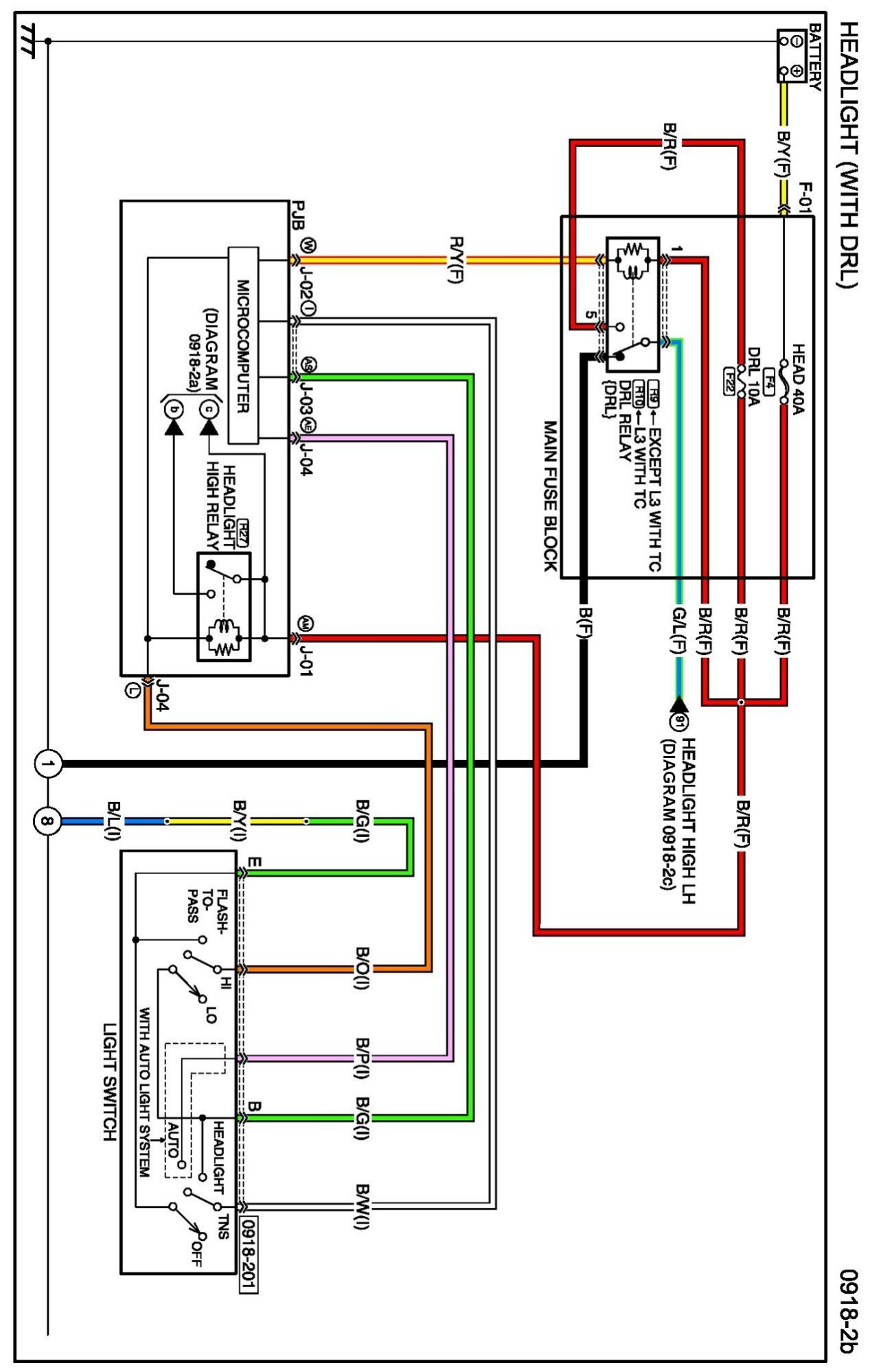

Diagram 0918-2b:

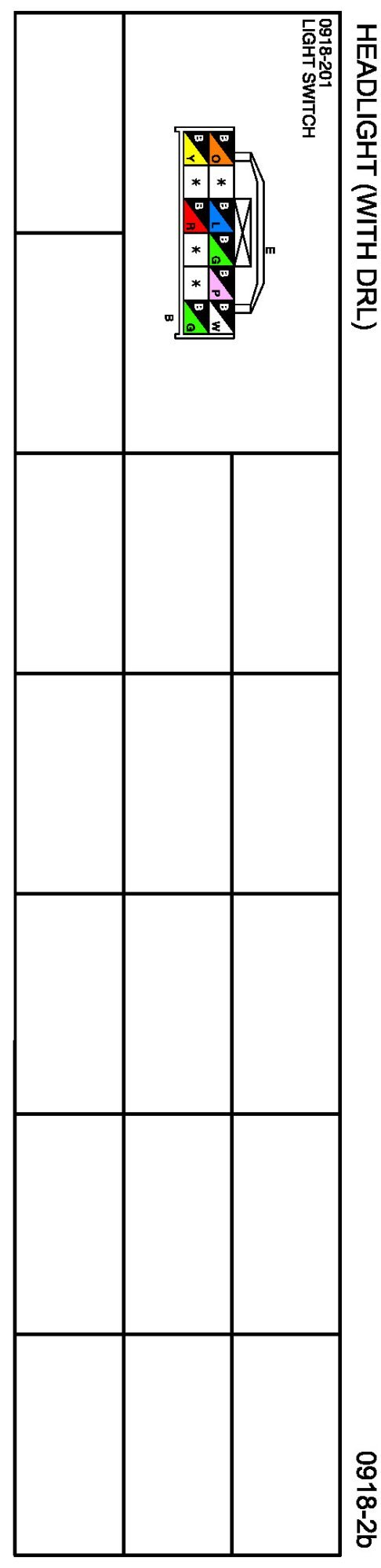

Connectors 0918-2b:

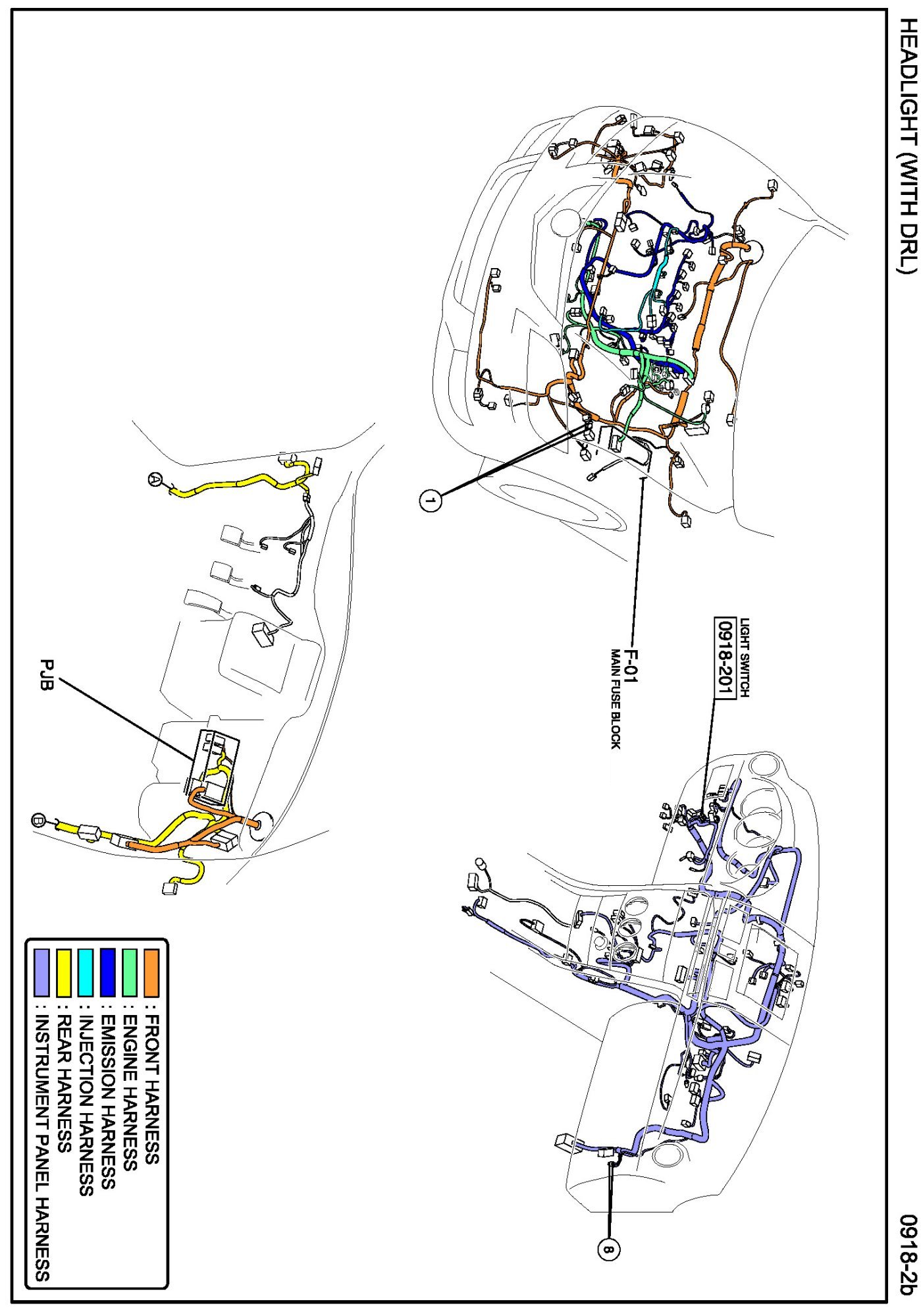

Routing View 0918-2b:

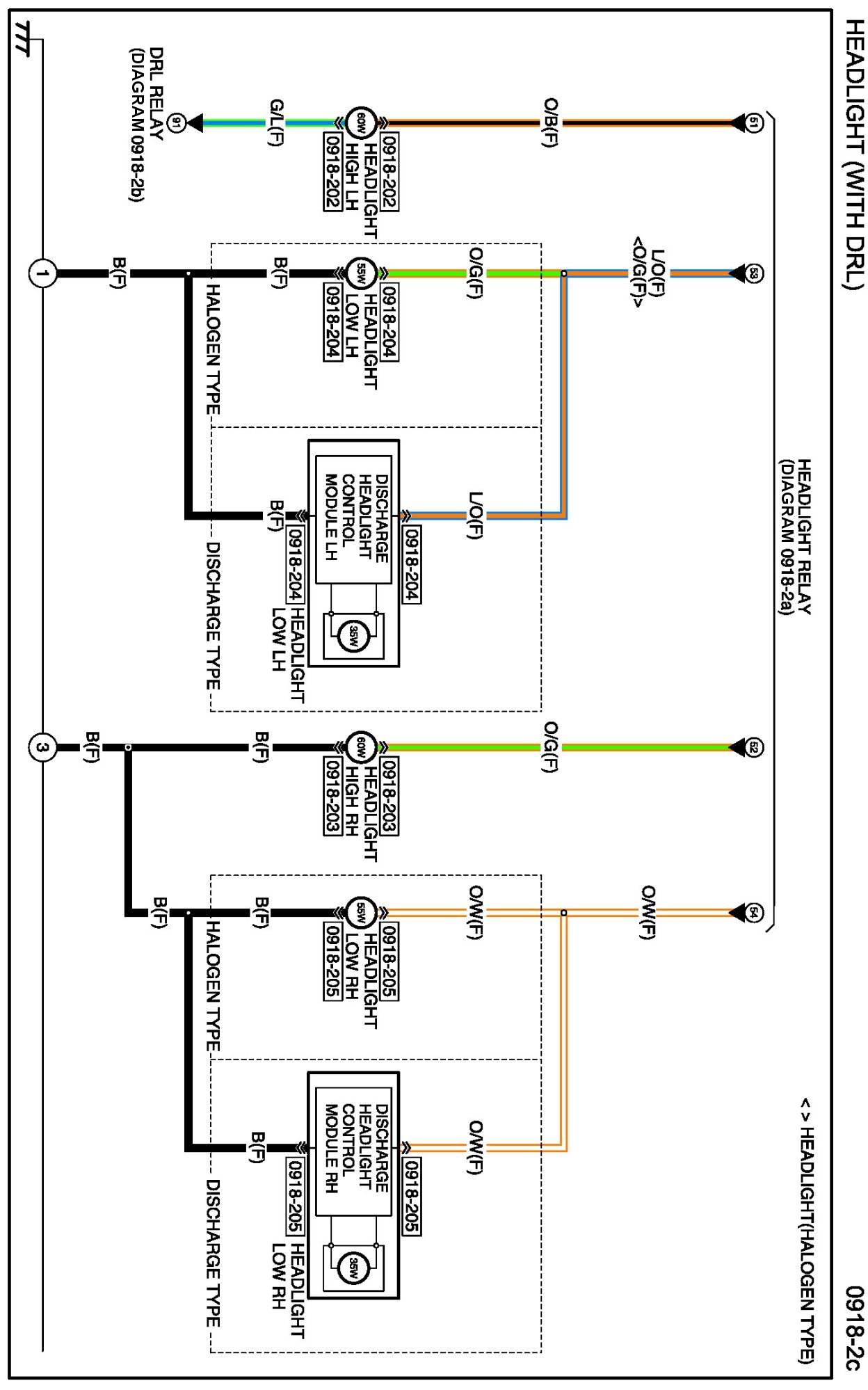

Diagram 0918-2c:

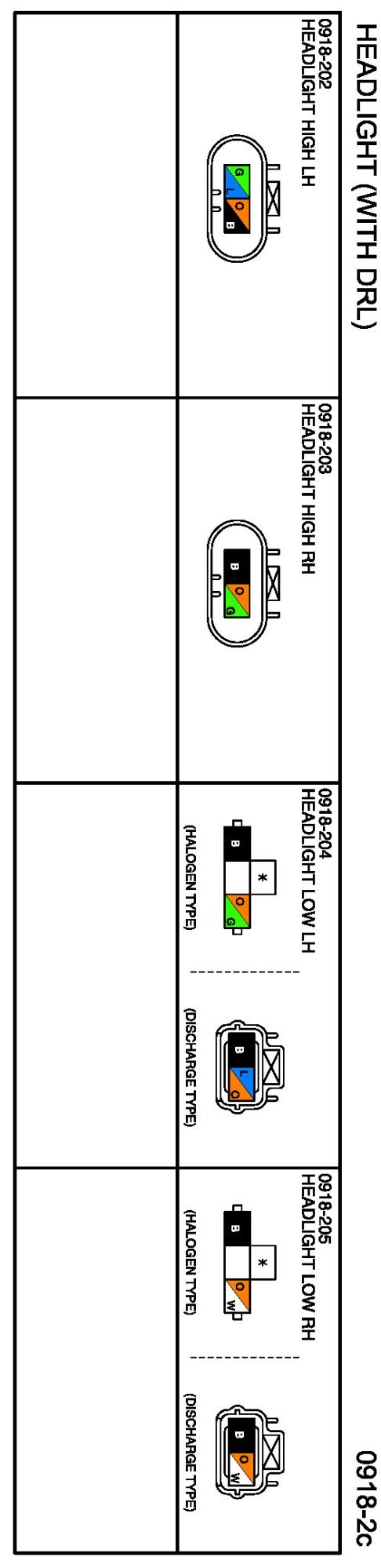

Connectors 0918-2c:

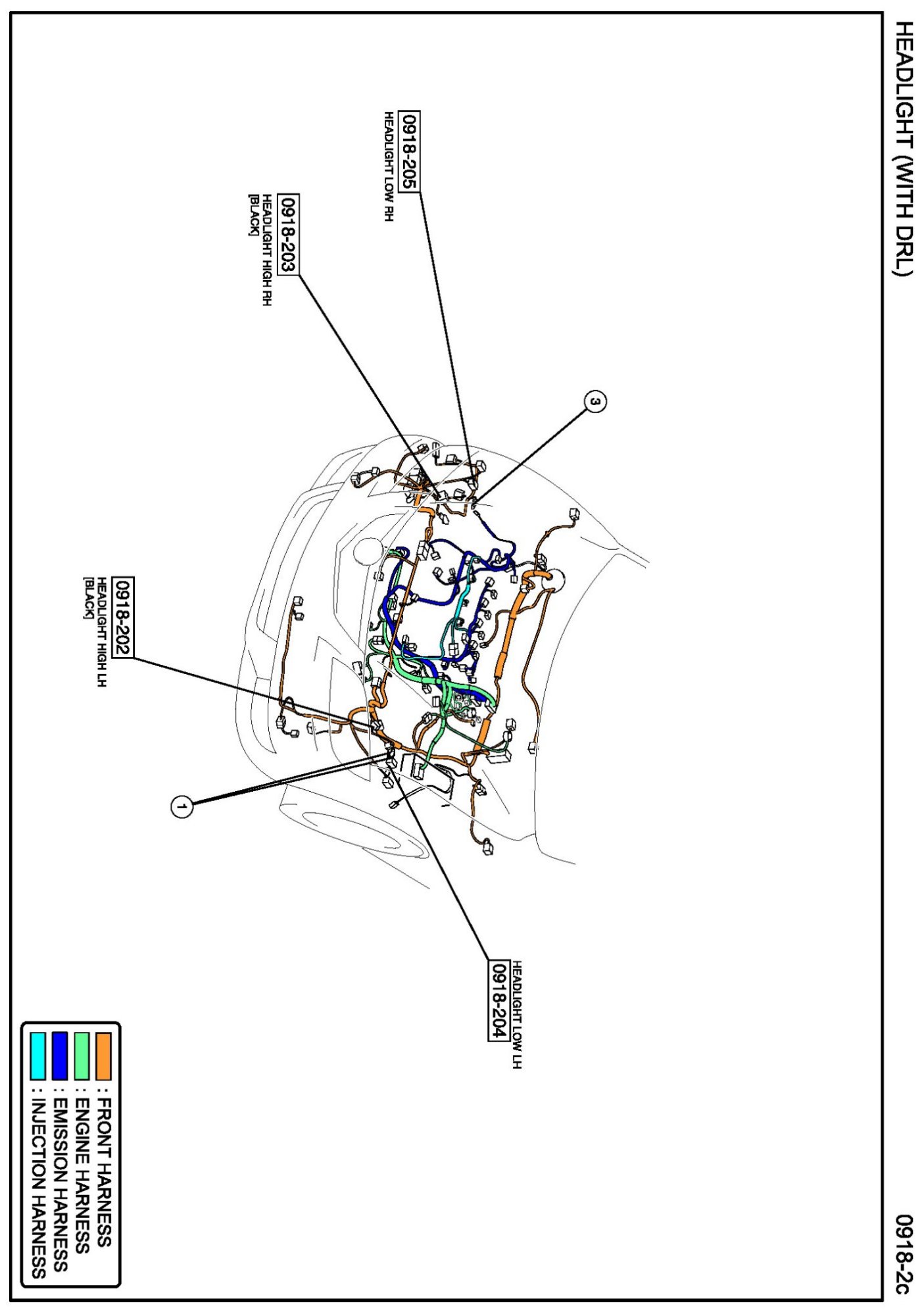

Routing View 0918-2c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
