Front Display Interface Module (FDIM) Removal/Installation

WARNING: This page is about a different variant/trim than selected.

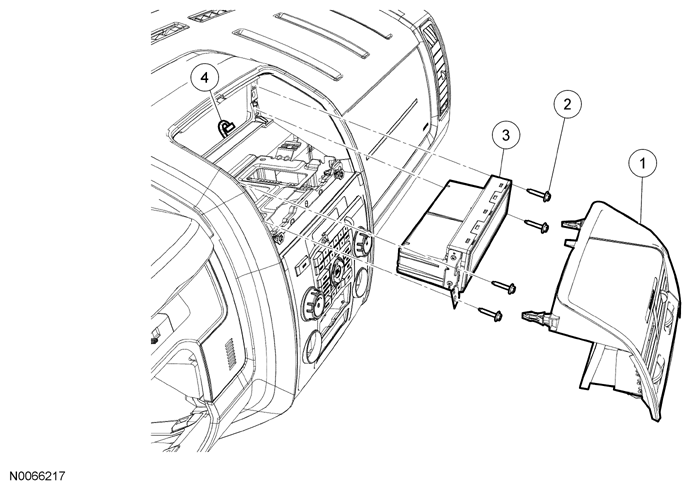

Fig 1: Identifying FDIM Components
G06361527Courtesy of MAZDA MOTORS CORP.
FDIM COMPONENTS REFERENCE

1 Center instrument panel upper finish panel
2 Front display interface module (FDIM) screws (4 required)
3 FDIM
4 FDIM electrical connectors (part of 14401)
  1. Remove the center instrument panel upper finish panel by pulling straight back.
  2. Remove the 4 front display interface module (FDIM) screws.
  3. Remove the FDIM.
    • Disconnect the electrical connector.
  4. To install, reverse the removal procedure.
