Audio Control Module (ACM) Removal/Installation
WARNING: This page is about a different variant/trim than selected.

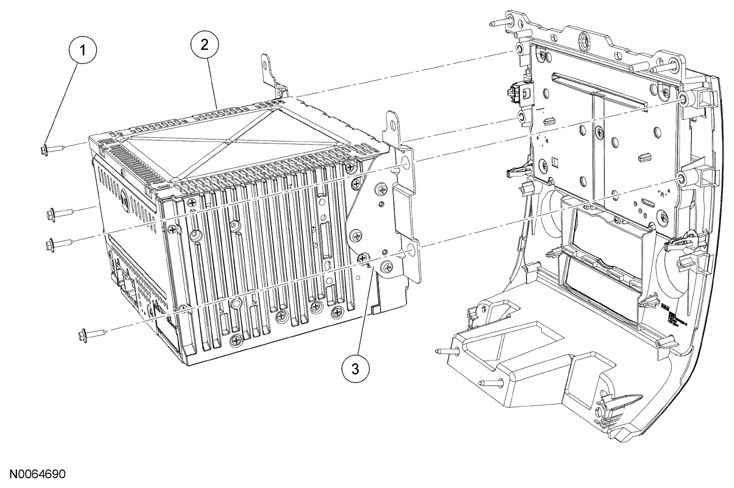

AUDIO CONTROL MODULE COMPONENTS
| 1 | Audio control module (ACM) screws (4 required) |
| 2 | ACM |
| 3 | ACM brackets (2 required) |
- Upload the audio control module (ACM) configuration to the scan tool. See PROGRAMMABLE MODULE INSTALLATION (PMI)
.NOTE: Module configuration is only required if a new ACM is being installed.
- Remove the middle instrument panel center finish panel. See INSTRUMENT PANEL - EXPLODED VIEW and INSTRUMENT PANEL CENTER FINISH PANEL -- MIDDLE REMOVAL/INSTALLATION .
- Remove the 4 screws.
- Remove the 2 ACM brackets.NOTE: Only carry out this step if installing a new ACM.
- Remove the ACM.
- To install, reverse the removal procedure.
