4X4 Control Module Removal/Installation

WARNING: This page is about a different variant/trim than selected.

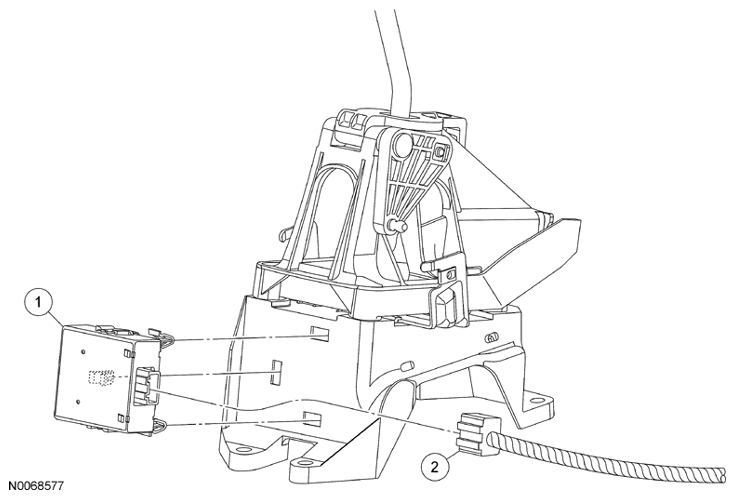

Fig 1: Identifying 4X4 Control Module And Electrical Connector

Courtesy of MAZDA MOTORS CORP.

CONTROL MODULE REFERENCE

1	4X4 control module
2	Electrical connector

Remove the floor console. See FLOOR CONSOLE REMOVAL/INSTALLATION .
Disconnect the electrical connector.
Lift upward on the module to release the fasteners from the shifter base. Remove the 4X4 control module.
To install, reverse the removal procedure.
