Throttle Position (TP) Sensor - 3.0L (4V) Removal/Installation

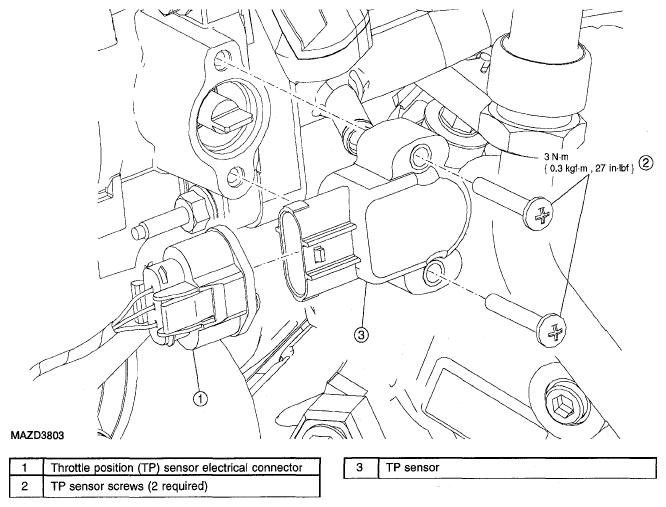

Fig 1: Throttle Position (TP) Sensor With Torque Specifications -- 3.0L (4V) Replacement Components
G05465002Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the throttle position (TP) sensor electrical connector.
  2. Remove the 2 screws and the TP sensor.
    • To install, tighten to 3 N.m {0.3 kgf.m, 27 in.lbf}.
  3. To install, reverse the removal procedure.
