Timing Cover

Front Cover

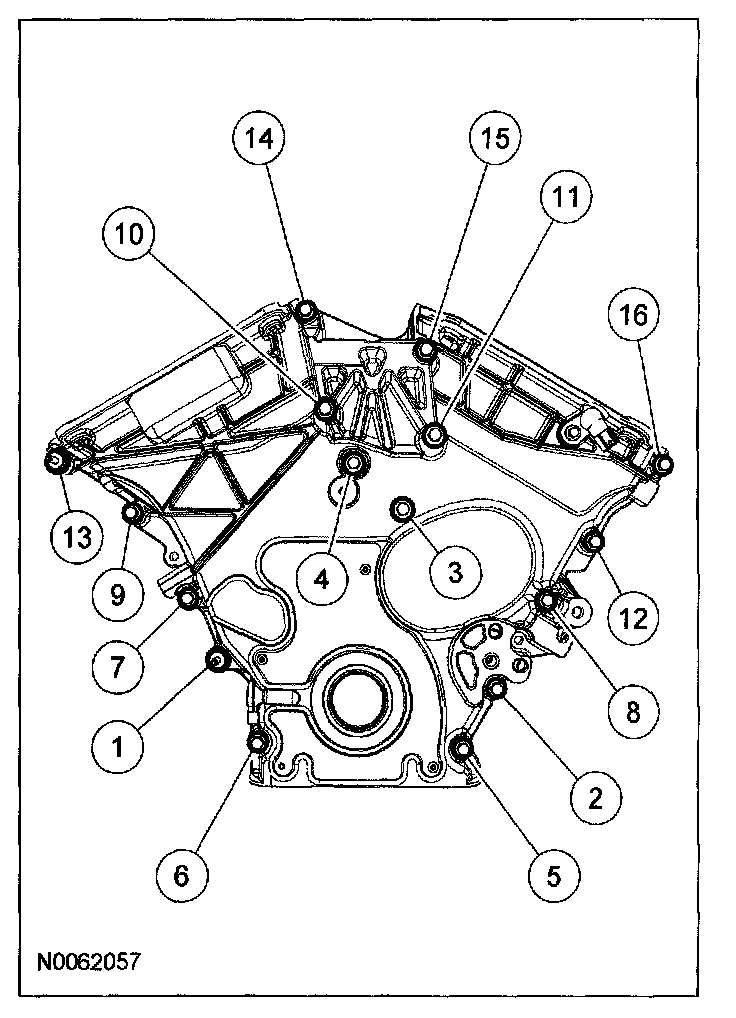

Install the bolts and stud bolts.
Tighten the bolts in the sequence to 25 N-m (2.5 kgf-m, 18 ft-lbf).

Note
^ Fasteners 1 and 13 are stud bolts.
