Intake Manifold

Lower Intake Manifold
Install the lower intake manifold and the bolts.

Tighten in the sequence shown to 10 N-m (1.0 kgf-m, 89 in-lbf).

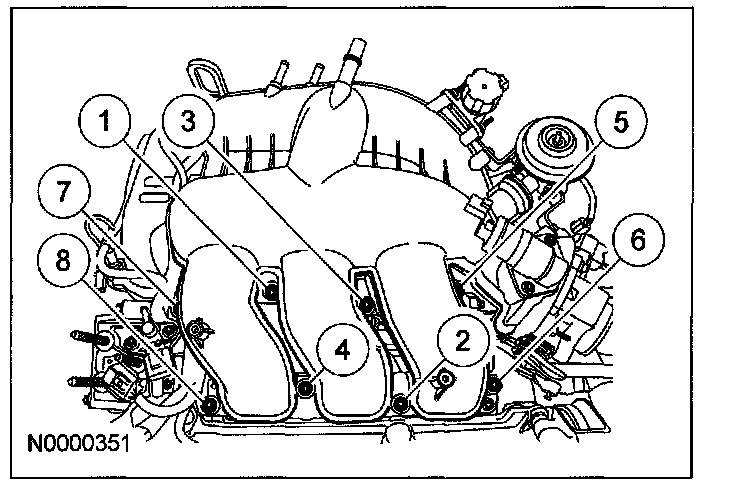

Upper Intake Manifold
Install the upper intake manifold and the bolts.

Tighten in the sequence shown to 10 N-m (1.0 kgf-m, 89 in-lbf).
