Clutch Switch: Service and Repair

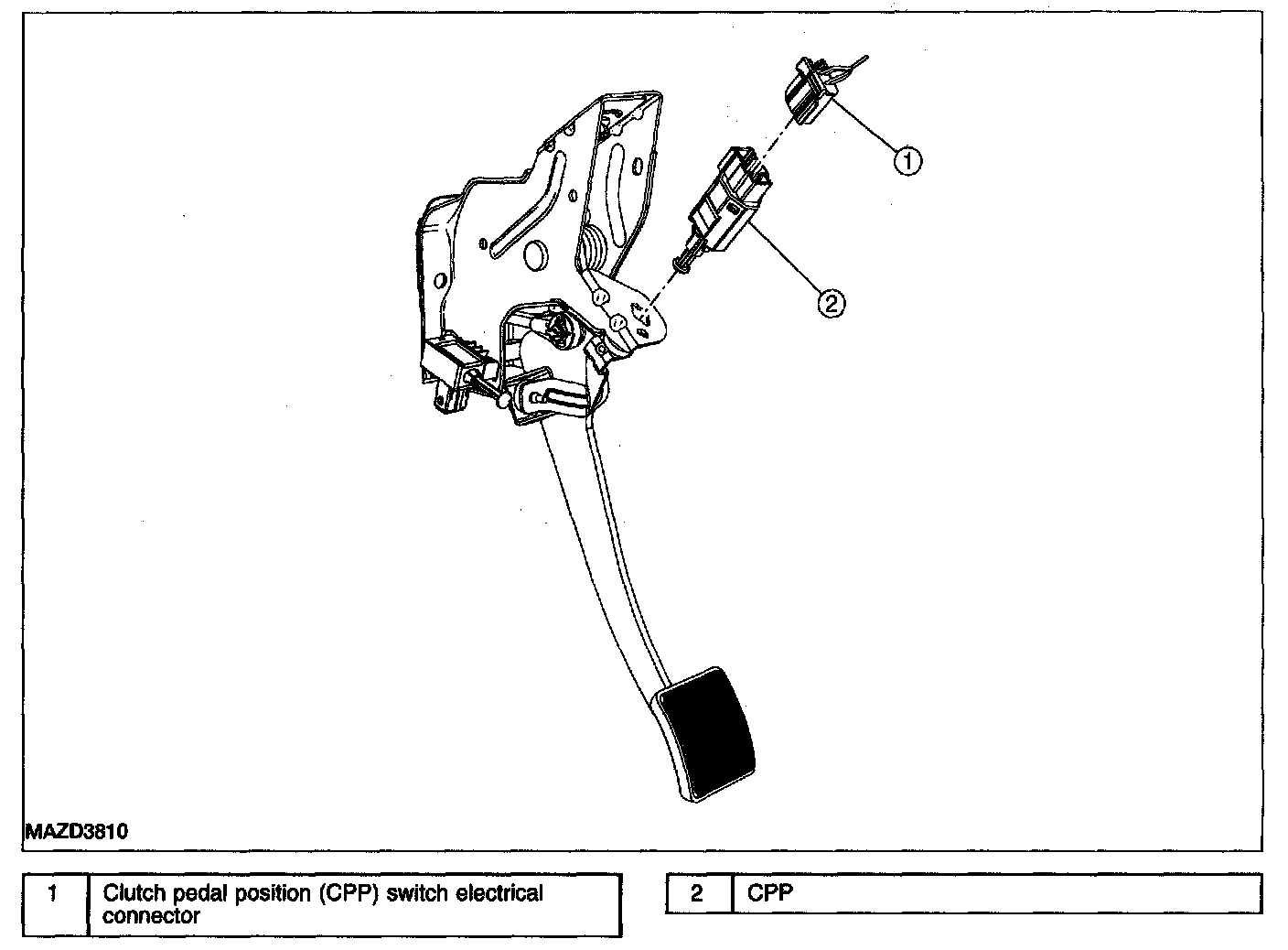

CLUTCH PEDAL POSITION (CPP) SWITCH REMOVAL/INSTALLATION






1. Disconnect the clutch pedal position (CPP) electrical connector.
2. Rotate the CPP switch clockwise and remove the CPP switch.
3. To install, reverse the removal procedure.
