Ignition System
ENGINE IGNITION - EXPLODED VIEW

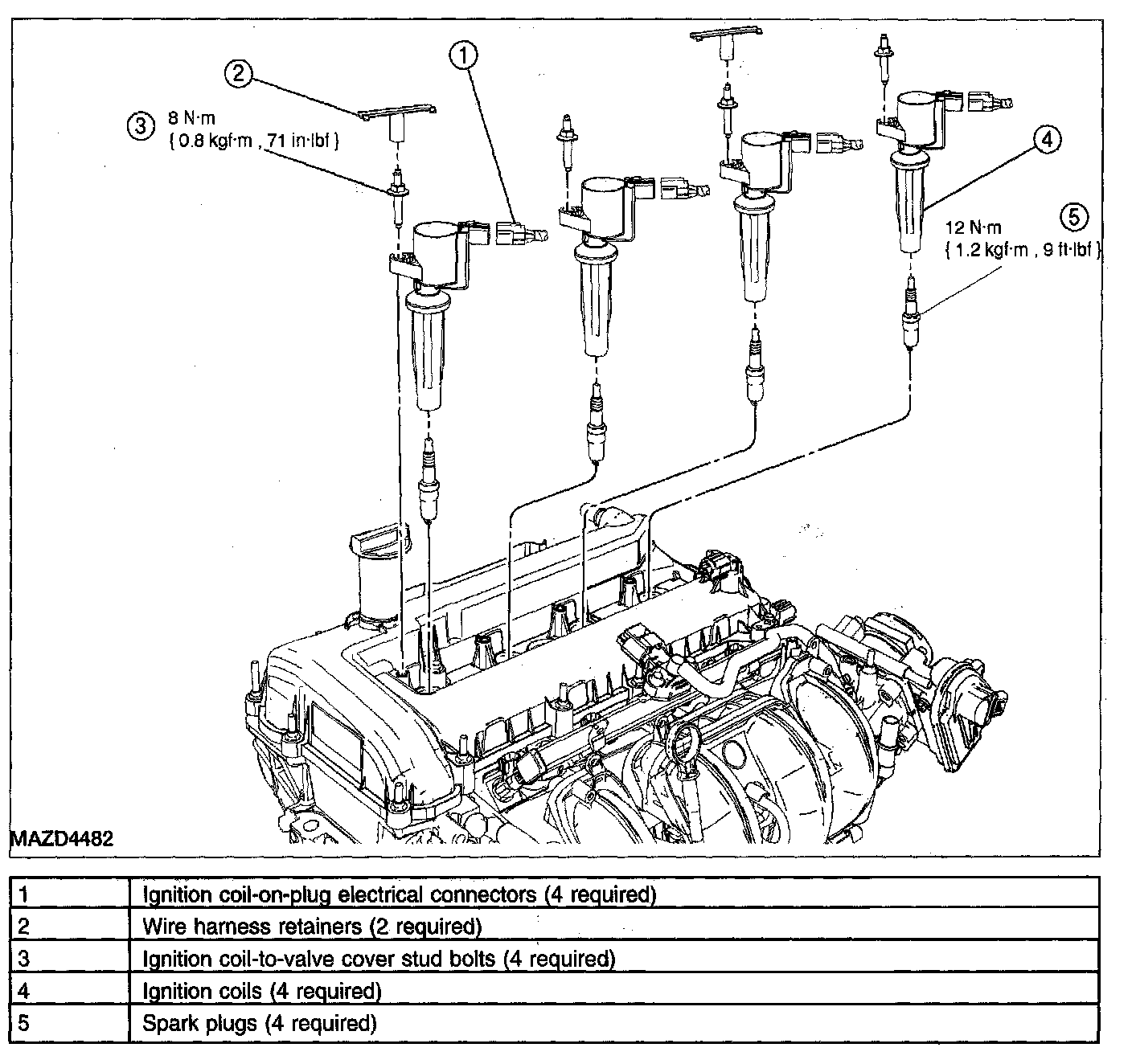

Engine Ignition-Exploded View:

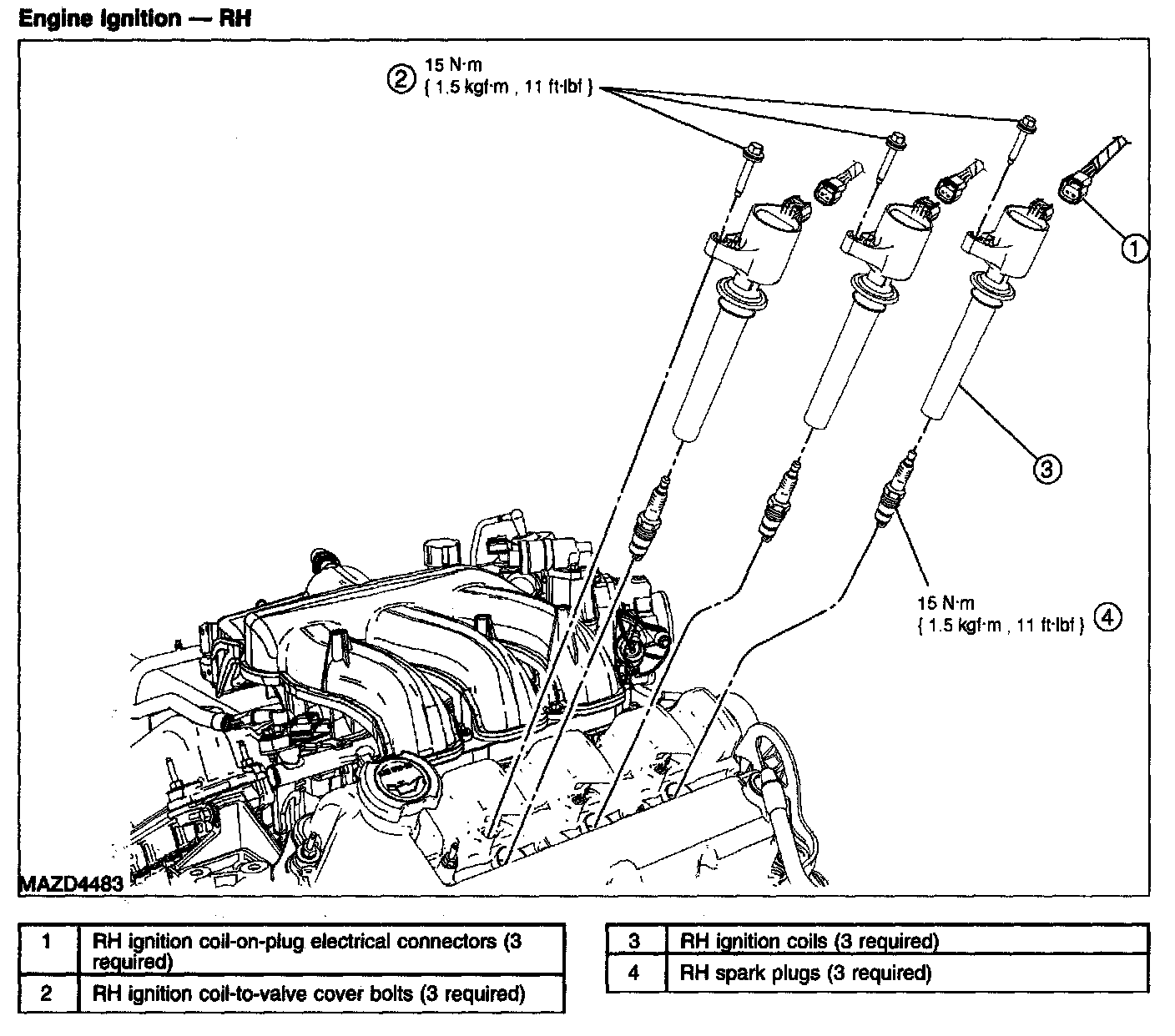

Engine Ignition-RH:

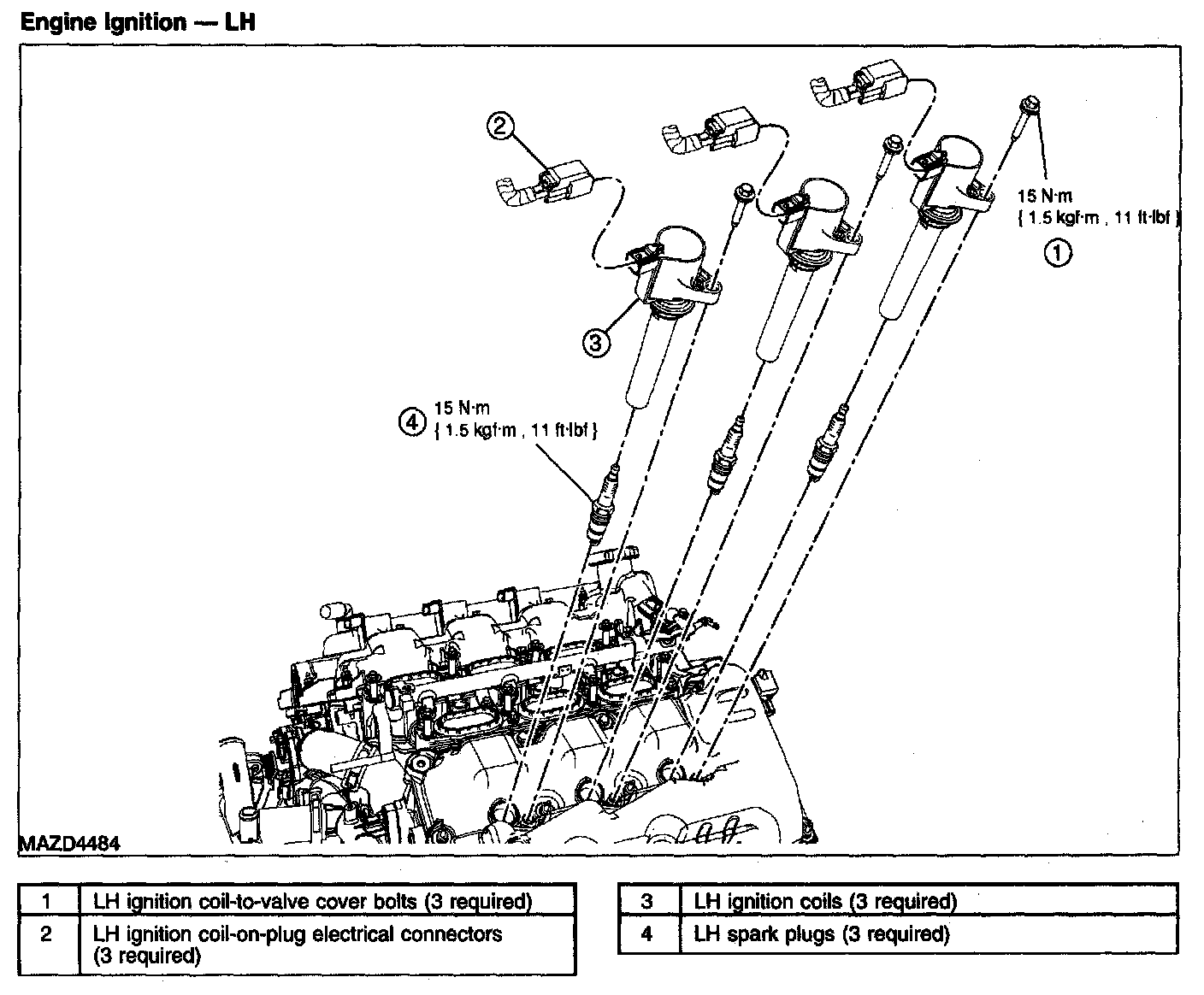

Engine Ignition-LH:
1.
For additional information, see the procedures.
