Disassembled Views
DISASSEMBLED VIEWS

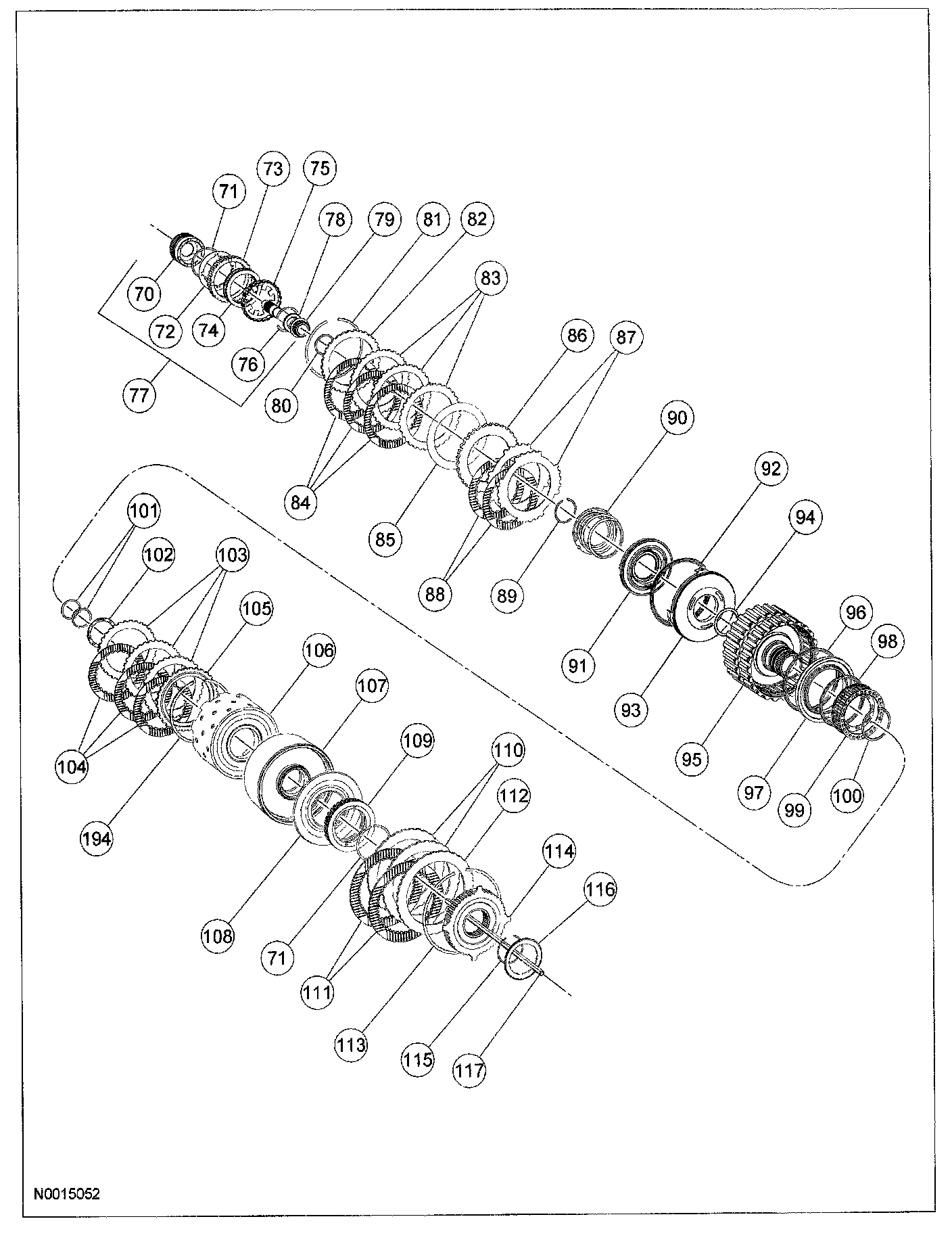

Disassembled Views (Part 1):

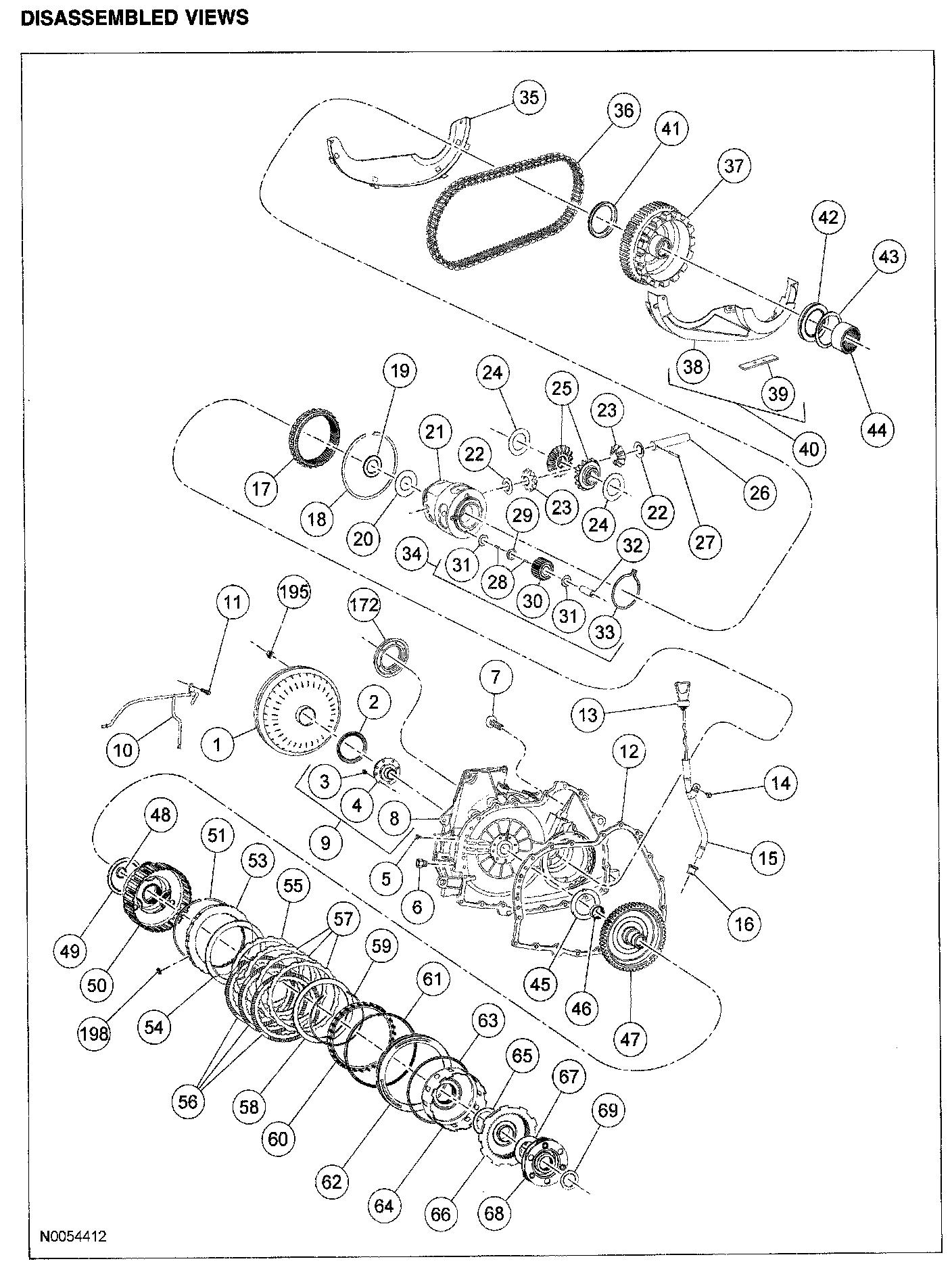

Disassembled Views (Part 2):

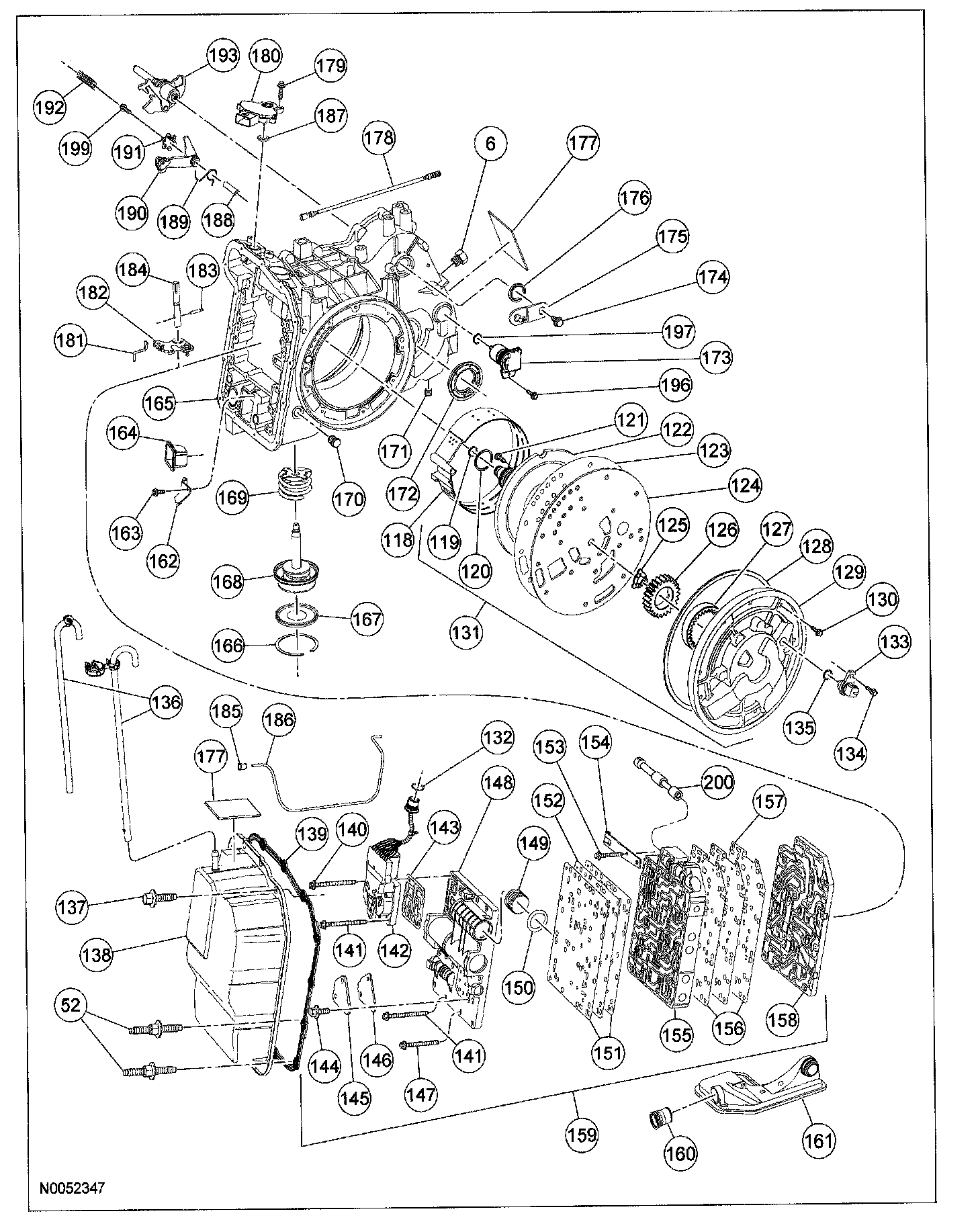

Disassembled Views (Part 3):

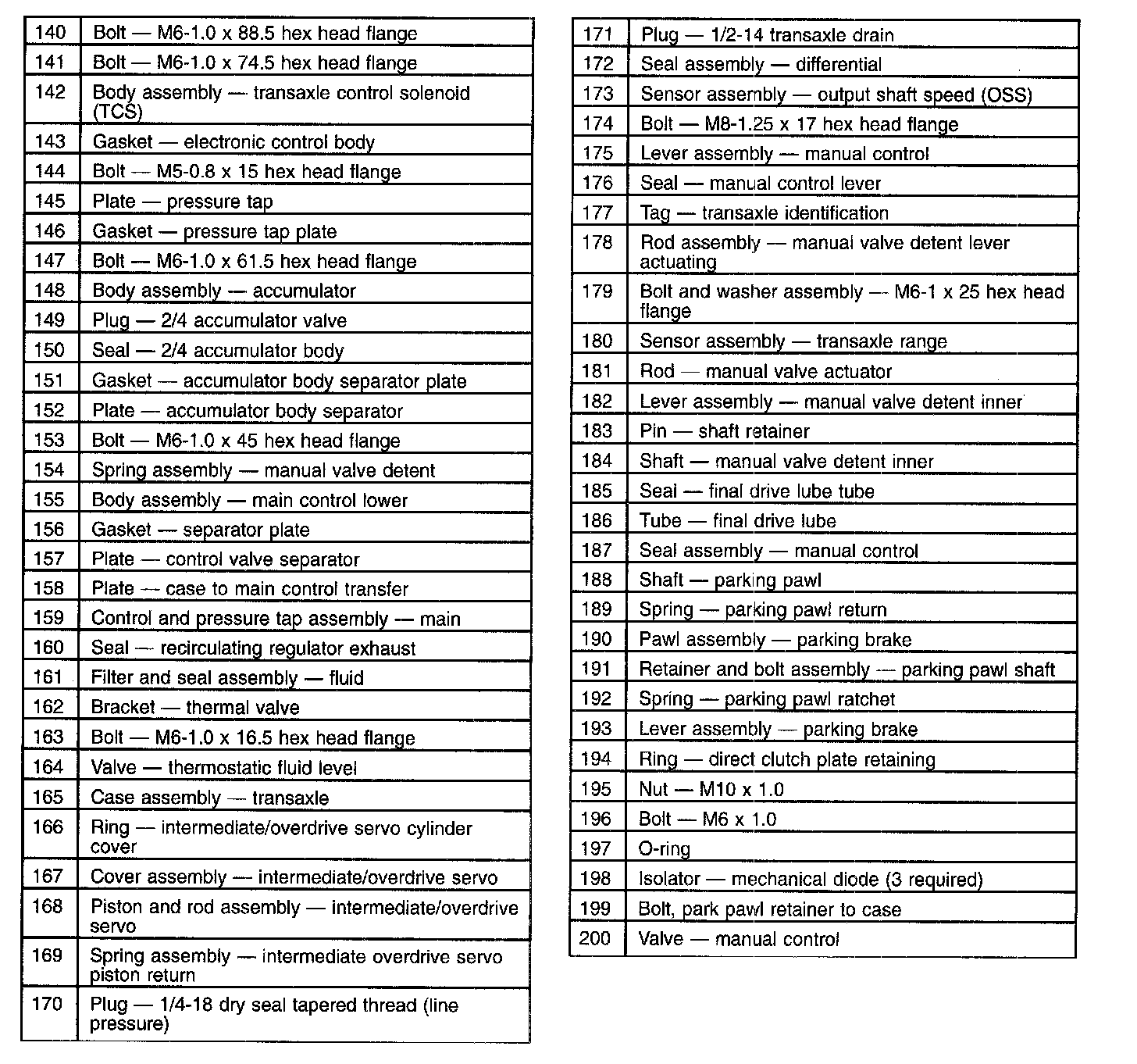

Disassembled Views (Part 4):

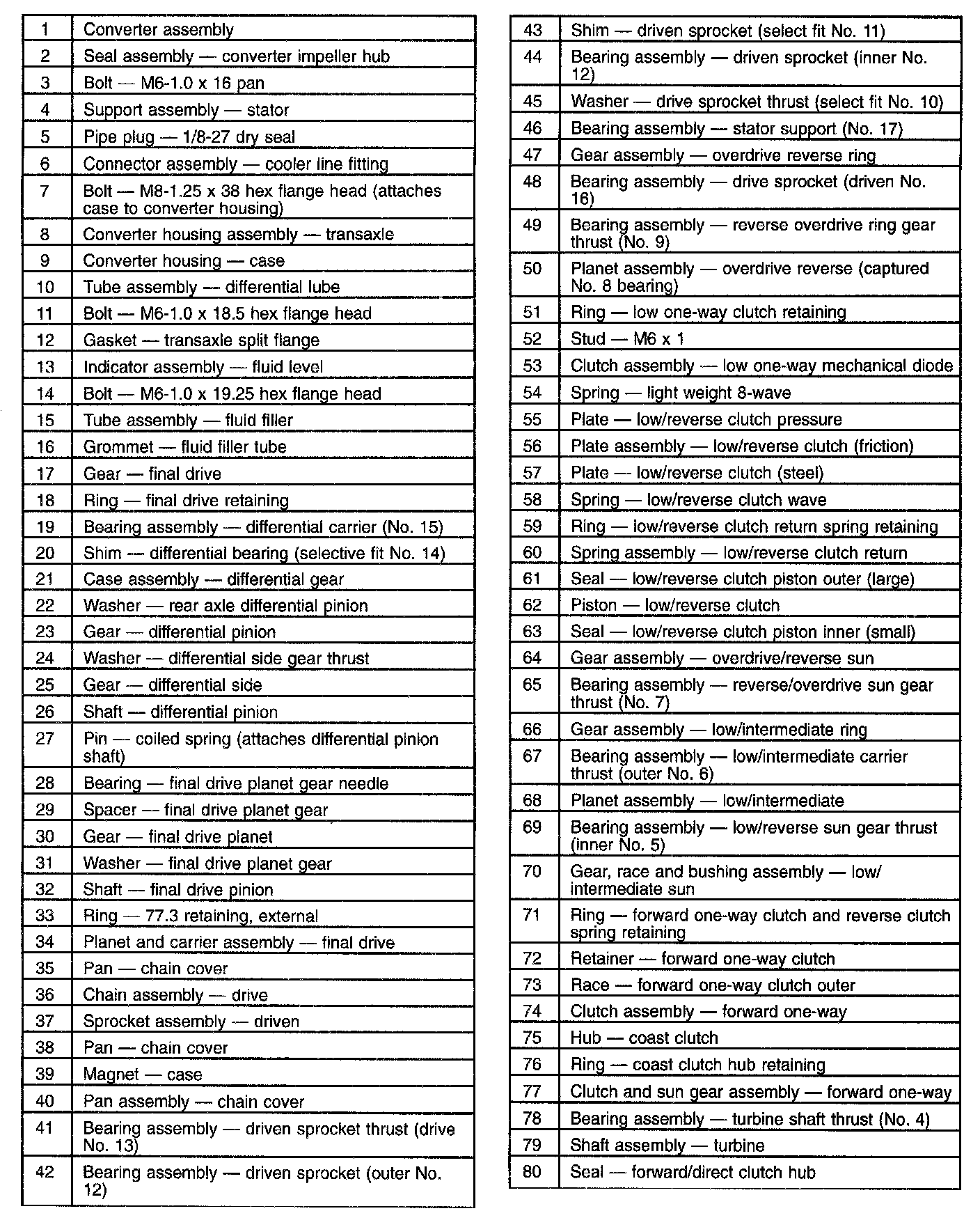

Disassembled Views (Part 5):

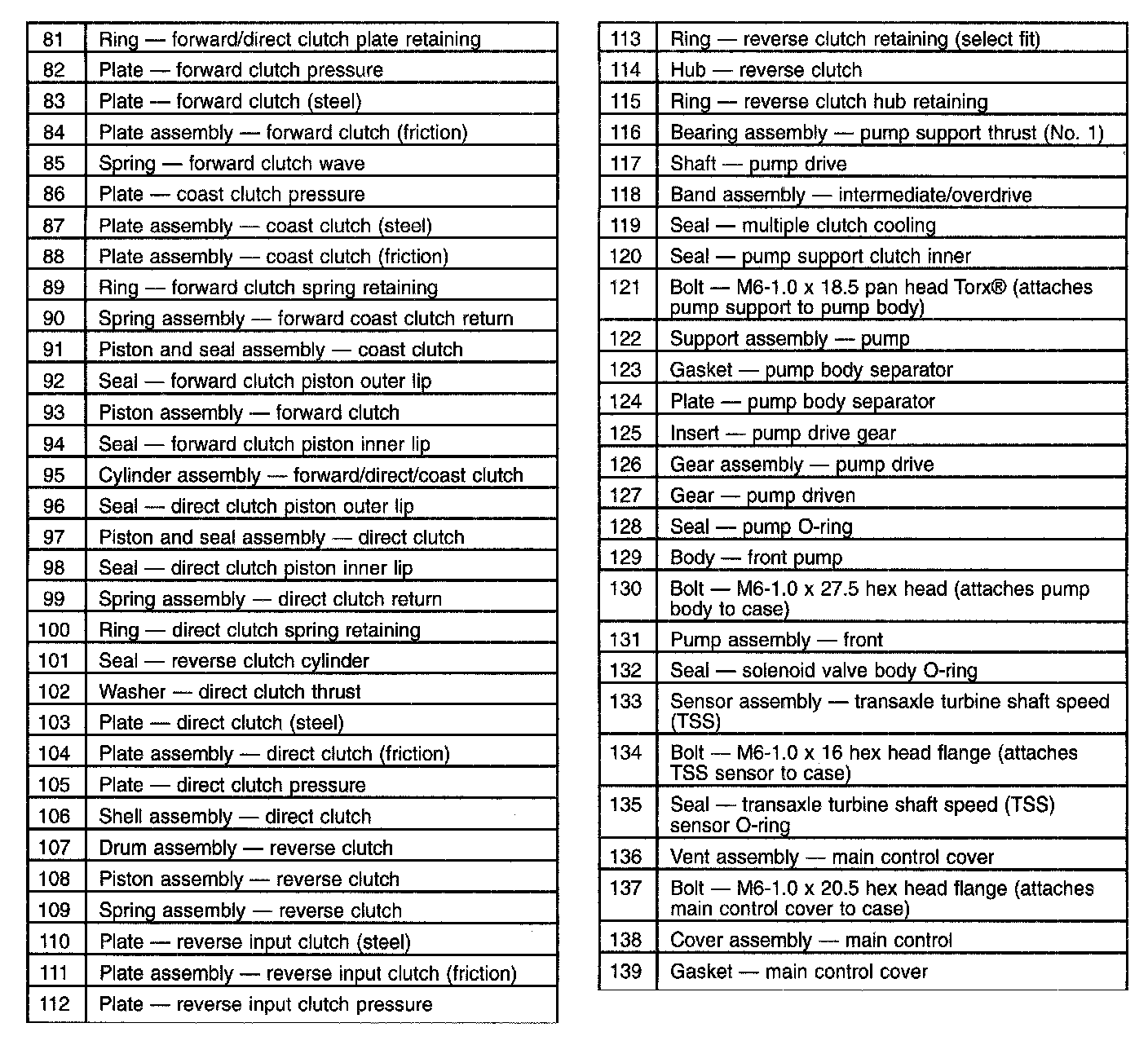

Disassembled Views (Part 6):
