Powertrain Control Module (PCM)

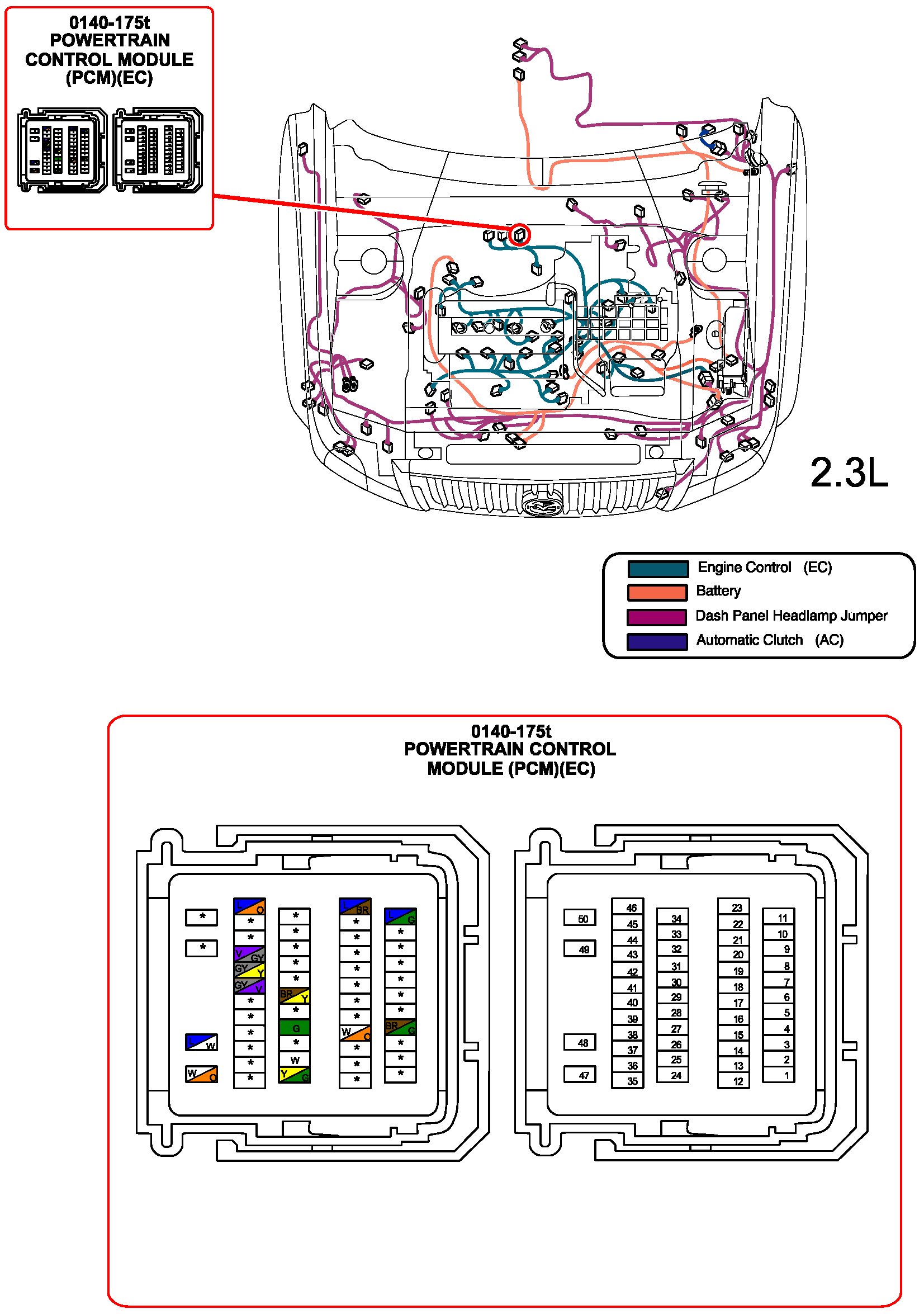

Powertrain Control Module (PCM):

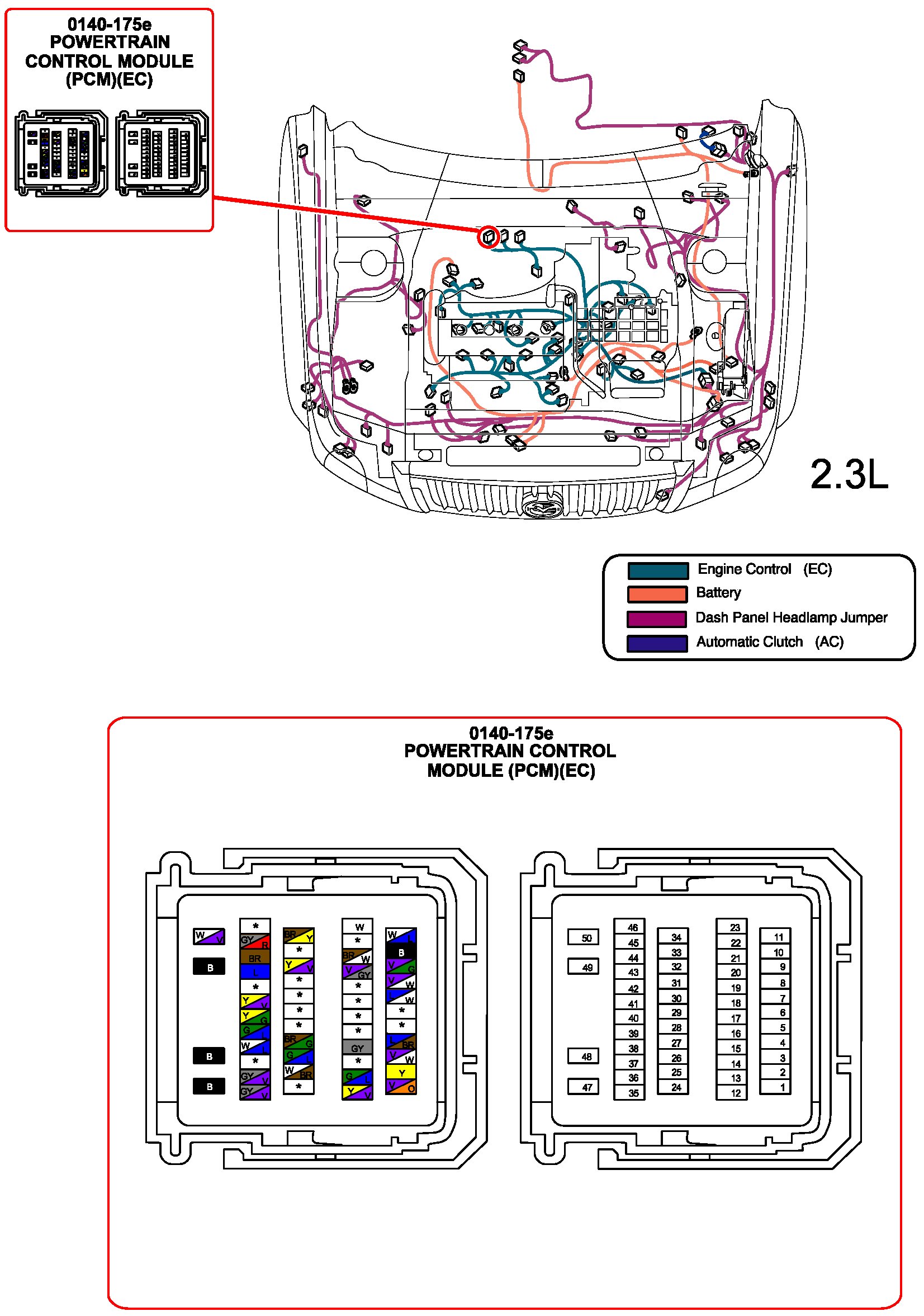

Powertrain Control Module (PCM):

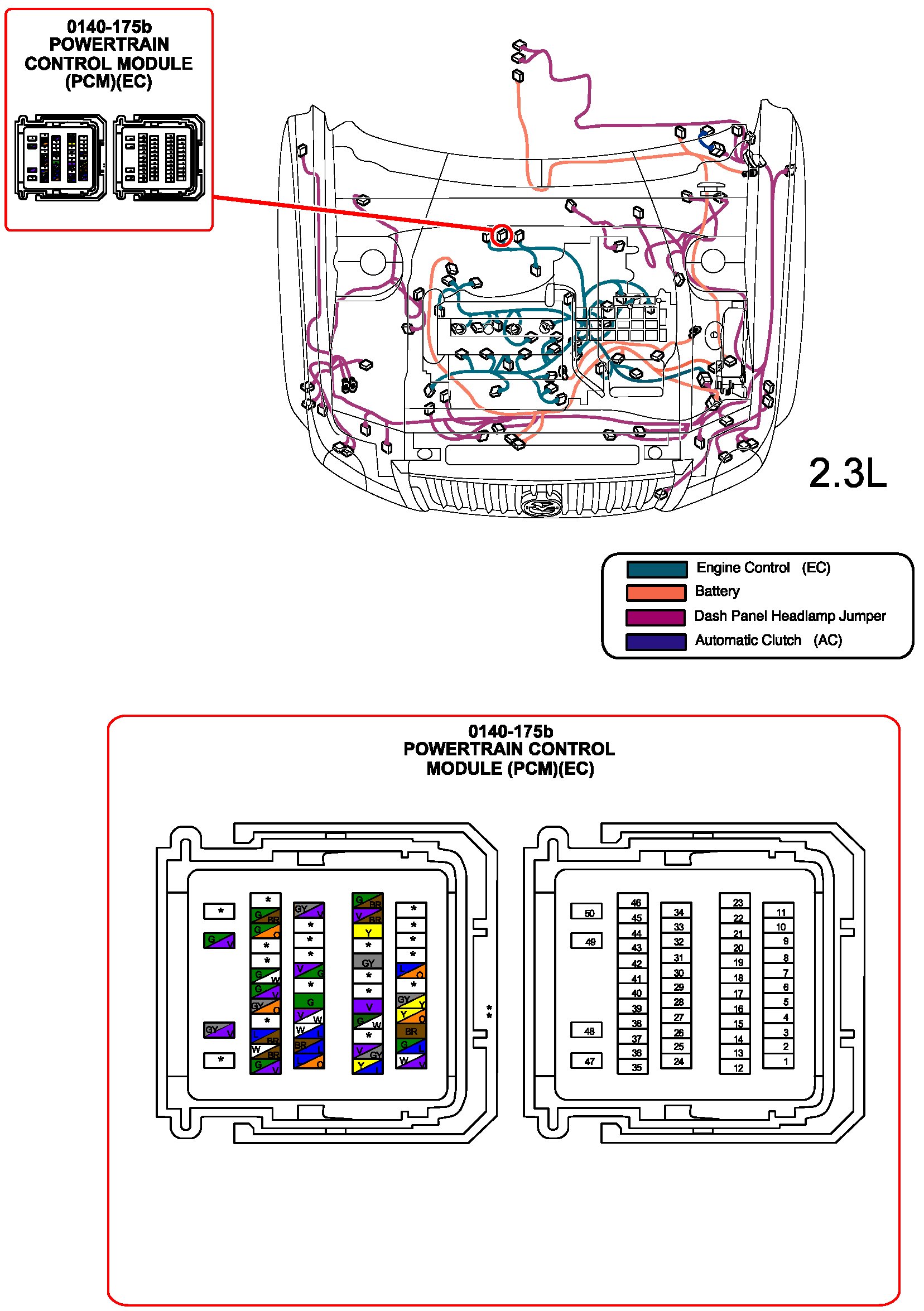

Powertrain Control Module (PCM):
