PID/Data Monitor Table

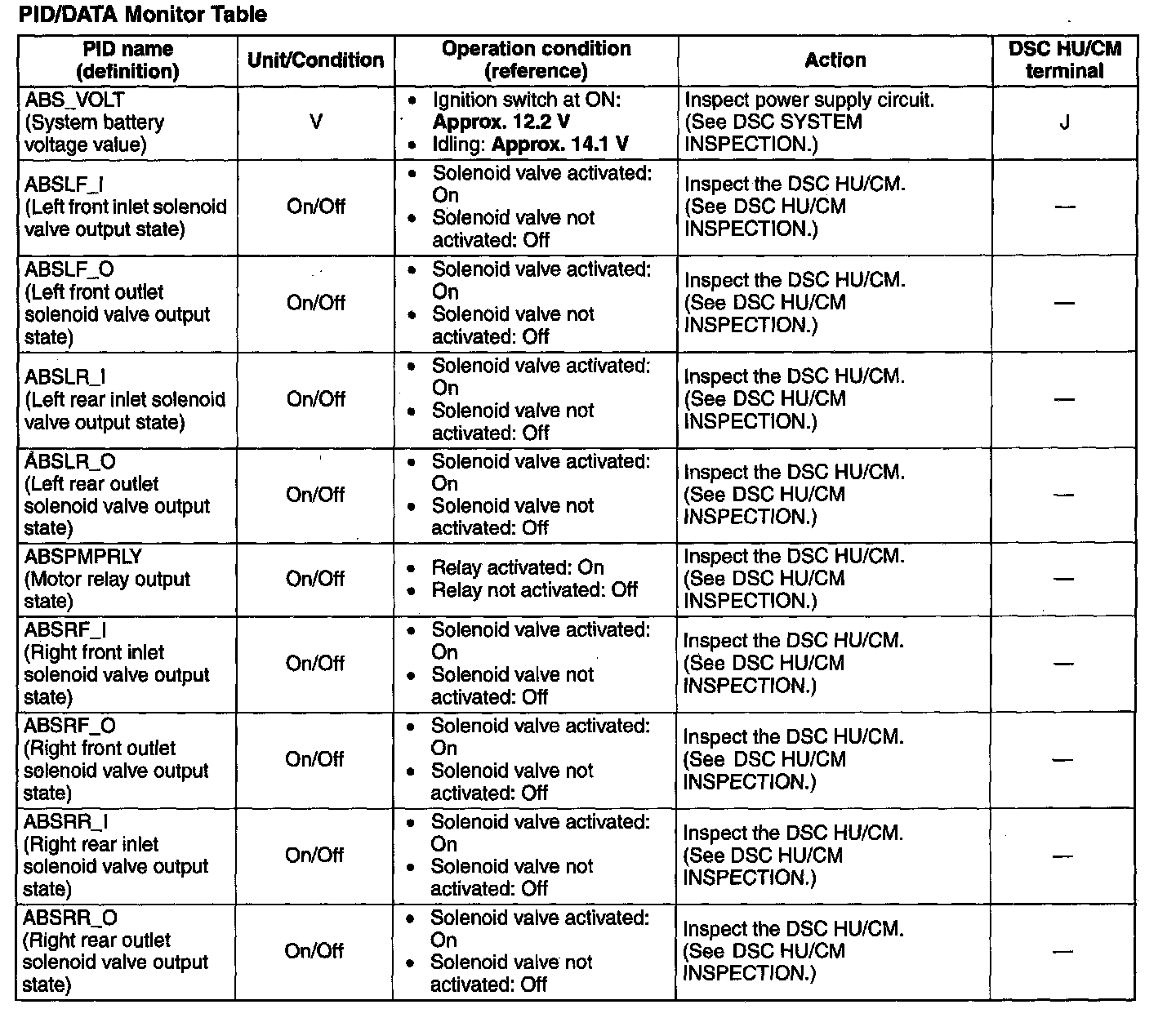

PID/DATA Monitor Table

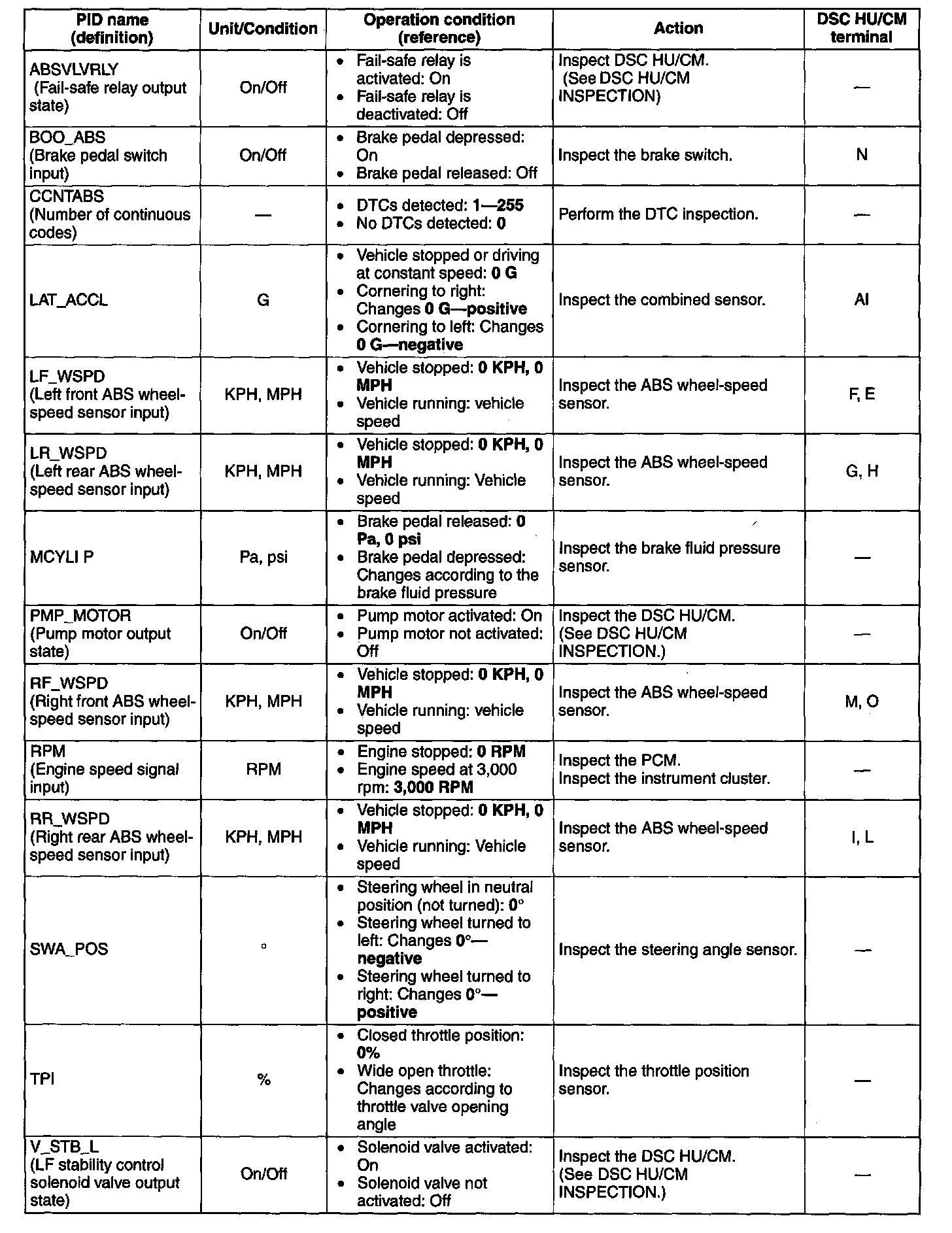

PID Monitor Table (Part 2):

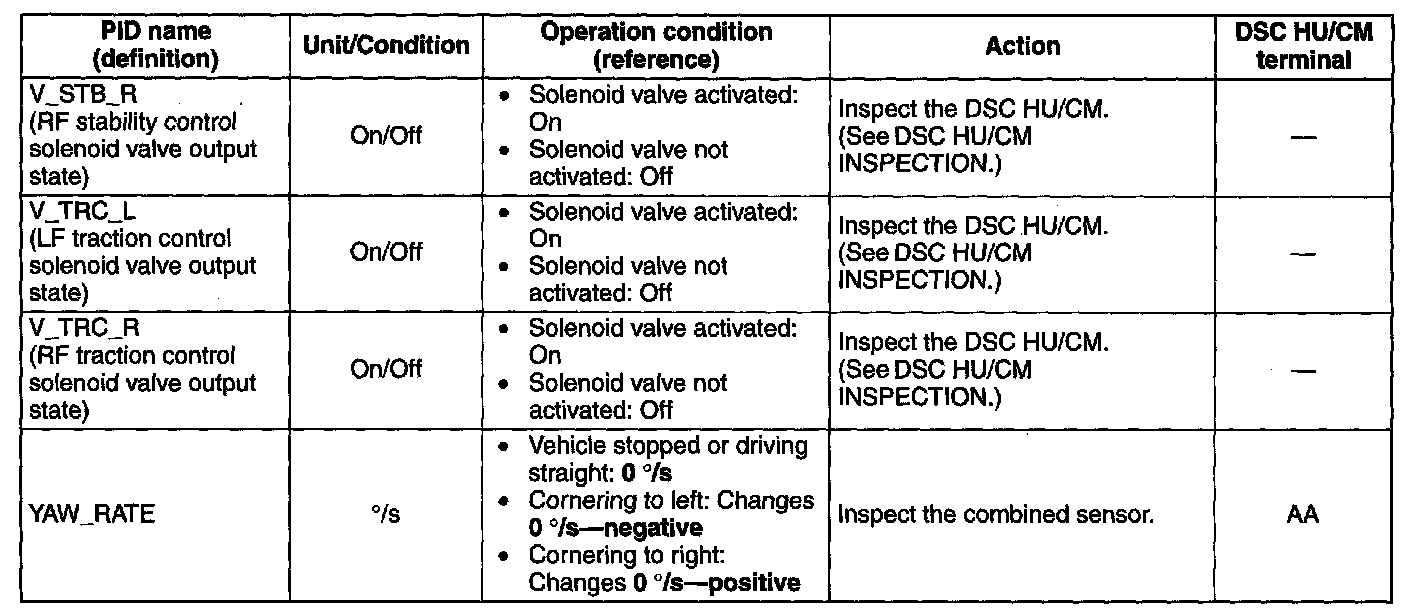

PID Monitor Table (Part 3):




PID Monitor Table (Part 3):
