Second-Row Buckle Removal/Installation: LH

  1. Remove the second-row seat (LH). (See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
  2. Remove the bolt A.
  3. Remove the second-row center buckle.
  4. Remove the second-row seat (LH) seat cushion pad. (See SECOND-ROW SEAT DISASSEMBLY/ASSEMBLY .)
  5. Remove the bolt B.
  6. Remove the second-row buckle (LH).
  7. Install in the reverse order of removal.

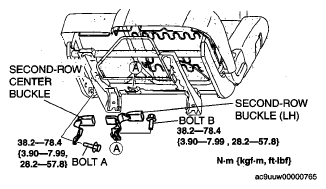

    Fig 1: Second-Row Center Buckle, Bolt With Torque Specifications
    G04970845Courtesy of MAZDA MOTORS CORP.
