System Schematic

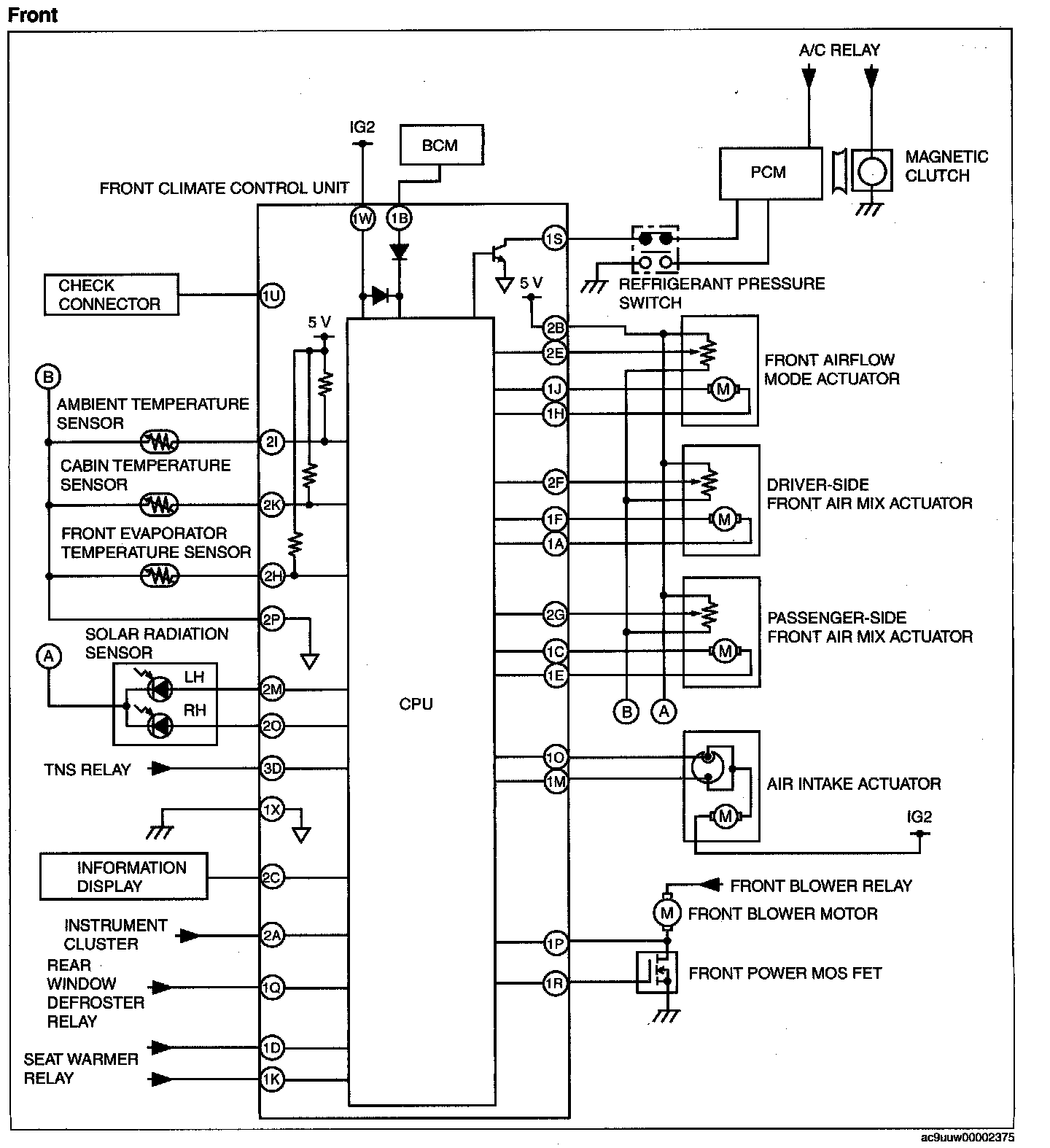

HVAC System Wiring Diagram - Front:

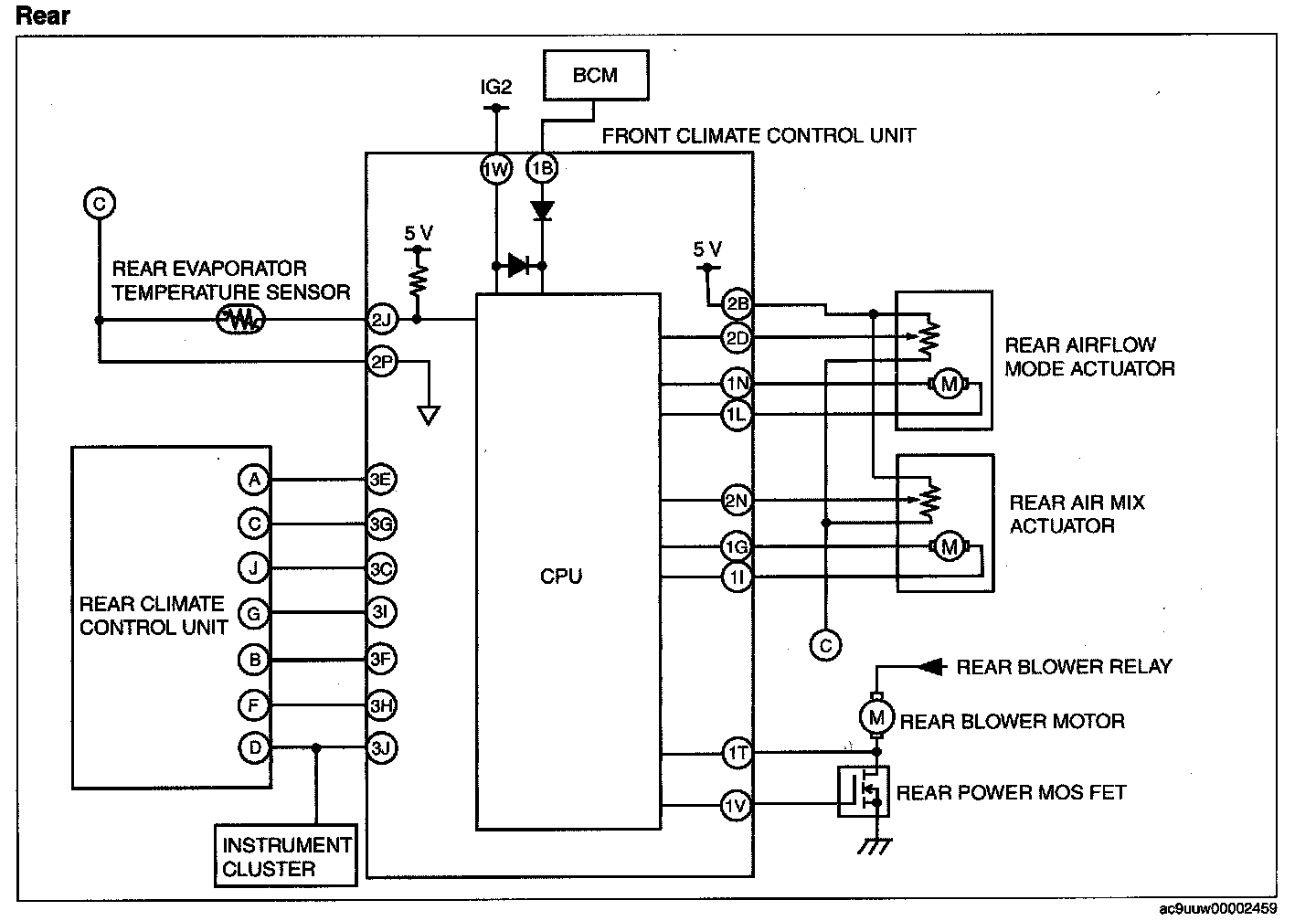

HVAC System Wiring Diagram - Rear:

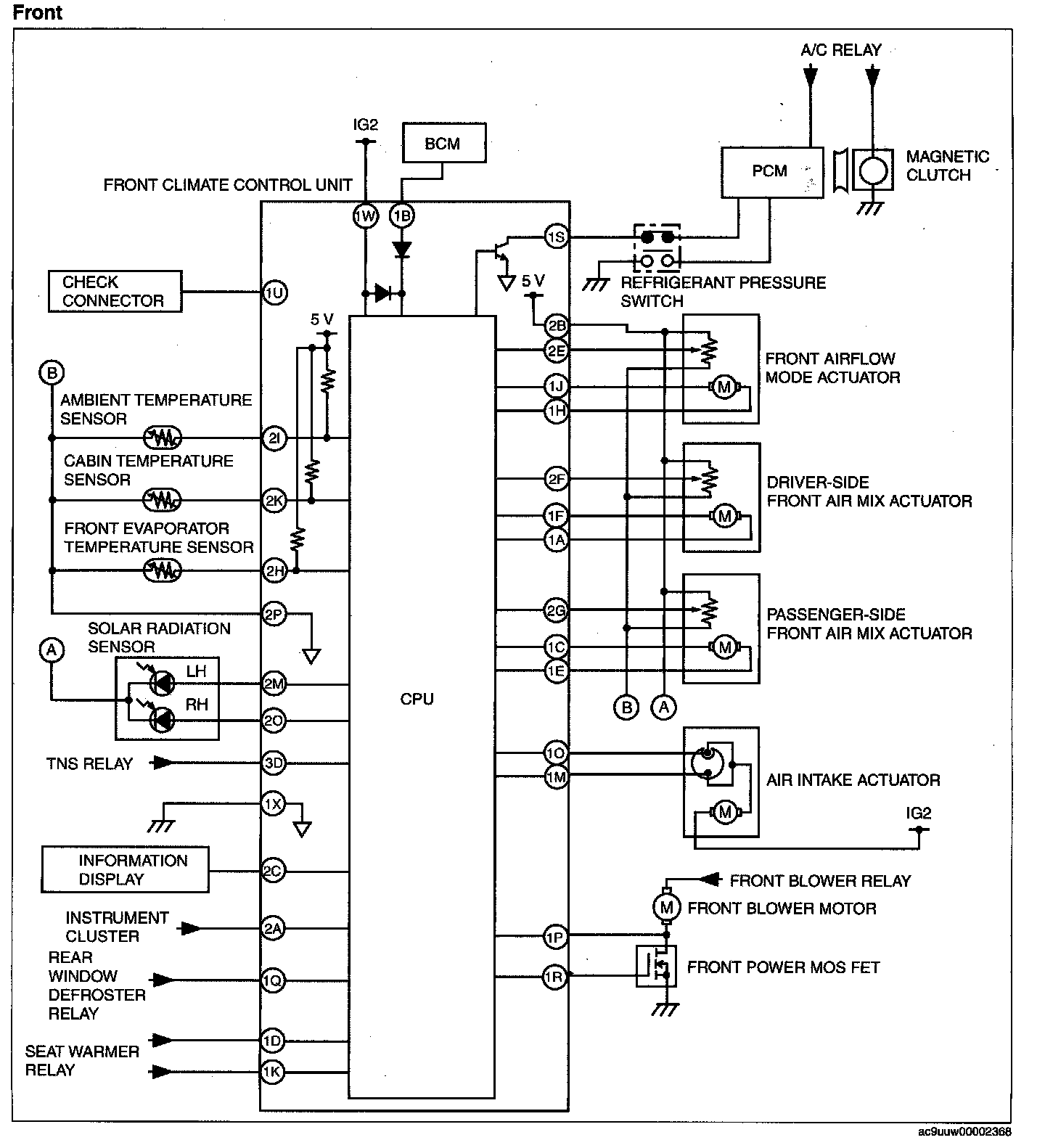

HVAC System Wiring Diagram - Front:

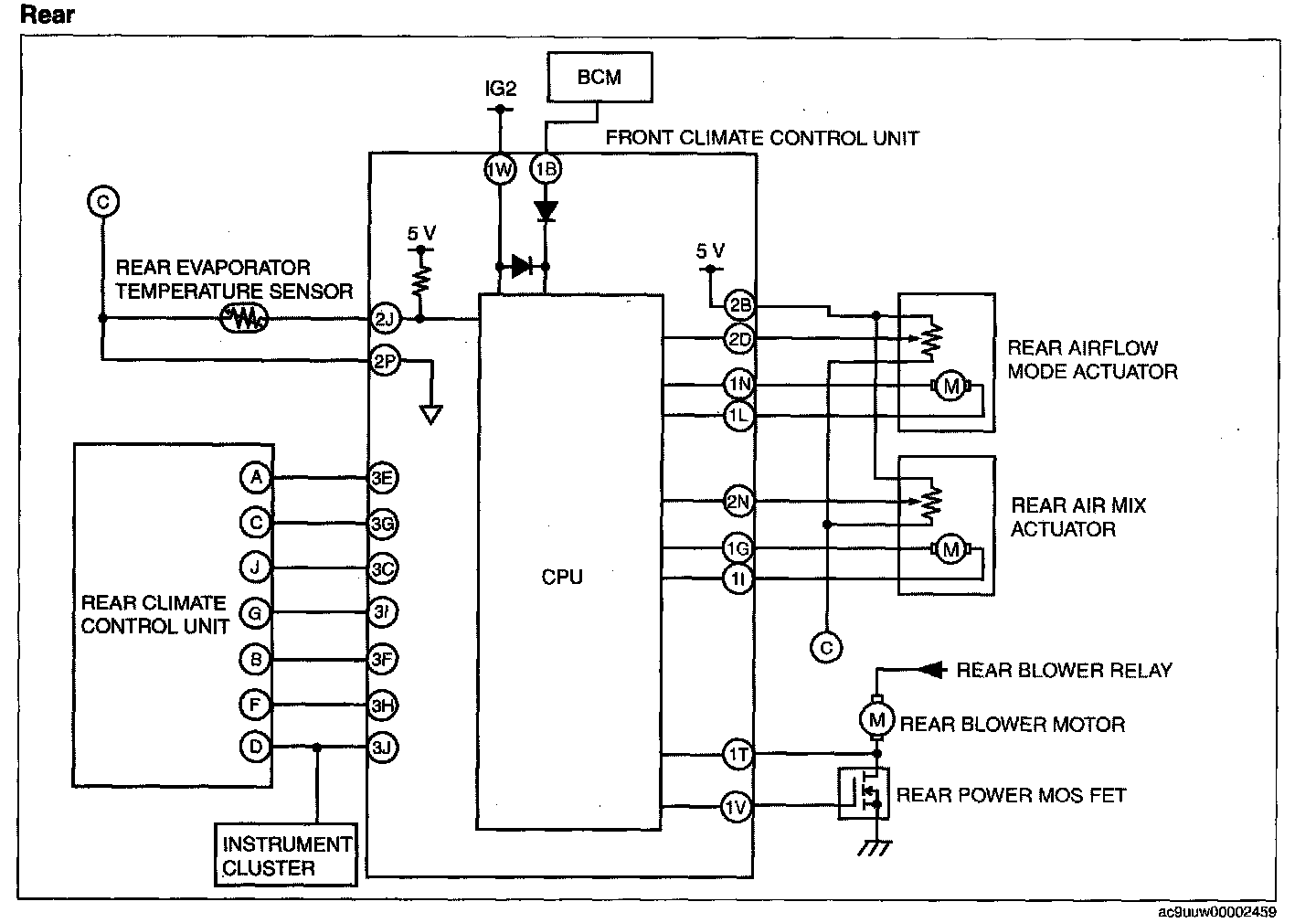

HVAC System Wiring Diagram - Rear:
