Steering Column Components

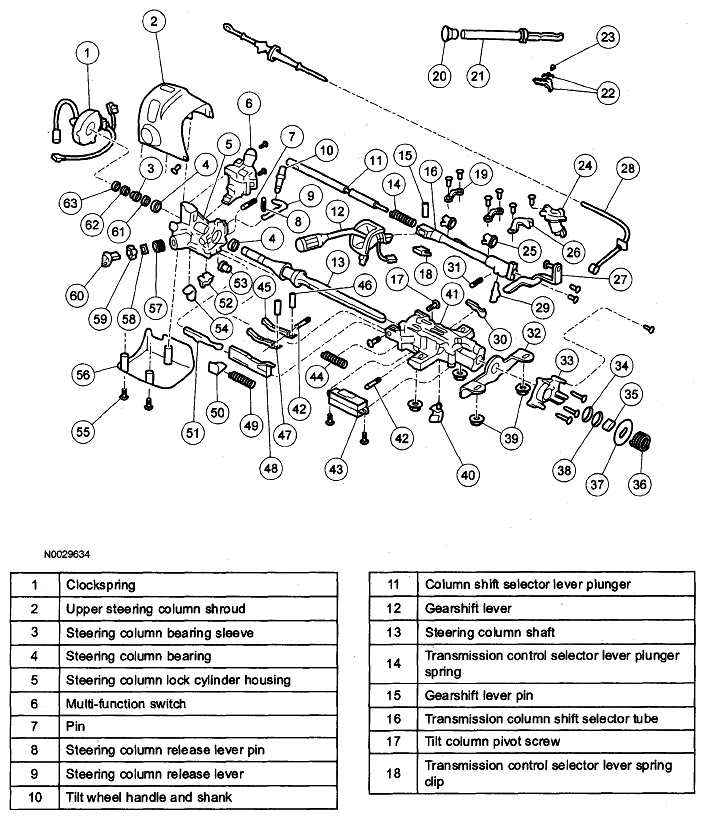

Fig 1: Exploded View Of Steering Column Components

G04930709

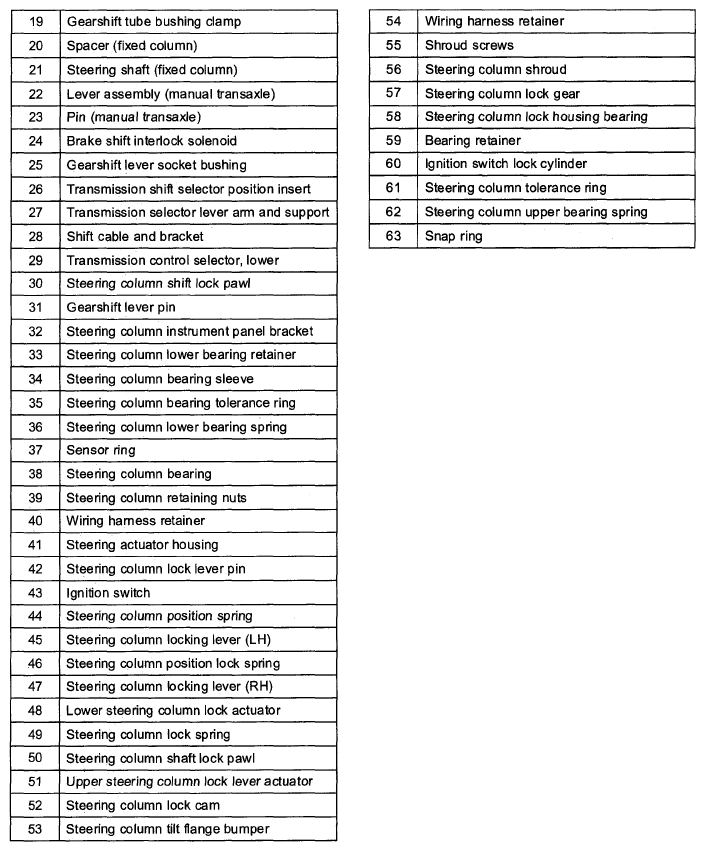

Fig 2: Steering Column Components Legends

G04930710
