Steering Column Multifunction Switch

STEERING COLUMN MULTIFUNCTION SWITCH

Steering Column Multifunction Switch:

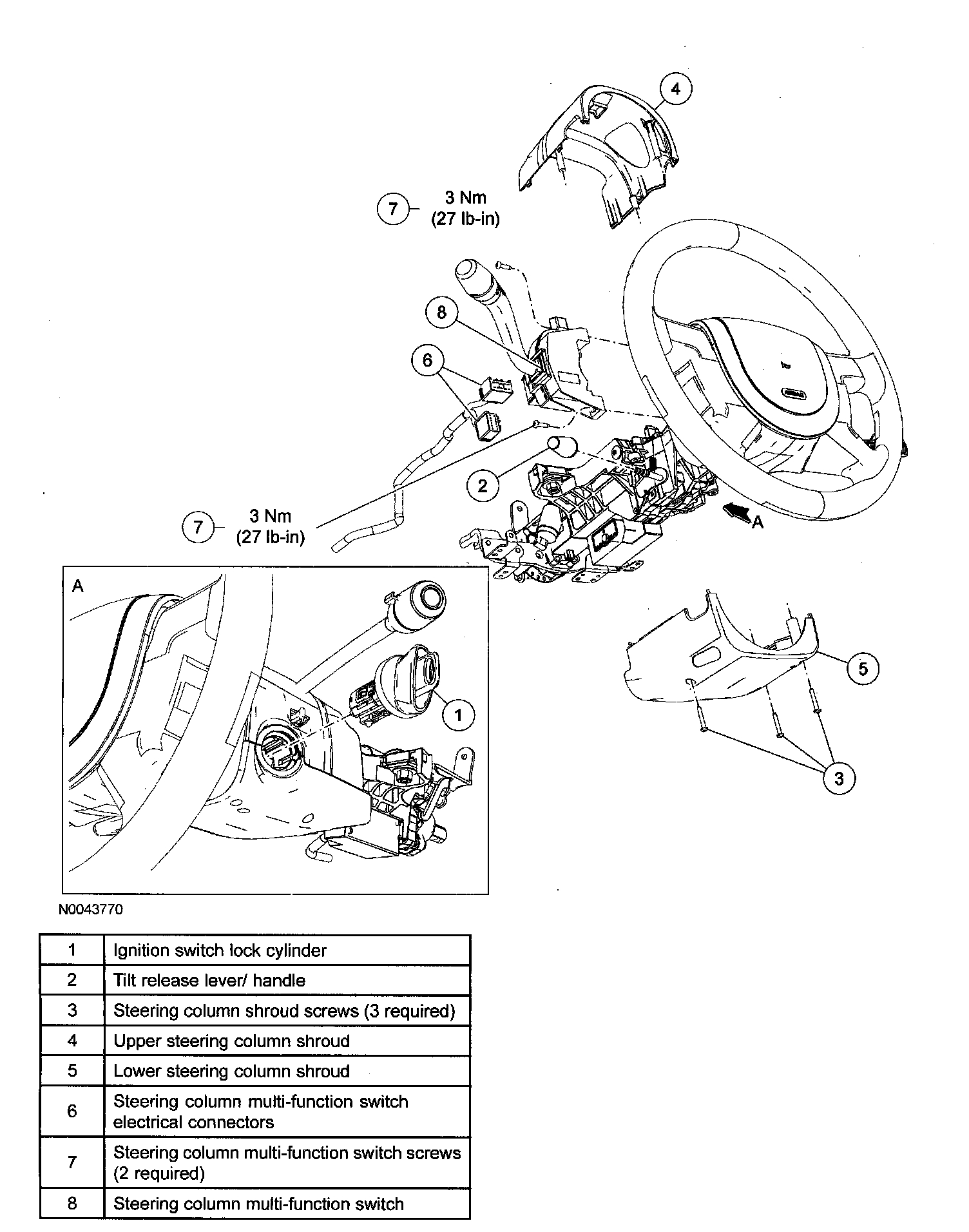

Removal and Installation
1. Disconnect the negative battery cable.
2. Remove the ignition switch lock cylinder.
3. If equipped, remove the tilt release lever/ handle.
4. Remove the 3 steering column cover screws and upper and lower steering column shrouds.
5. Disconnect the multi-function switch electrical connectors.
6. Remove the 2 multi-function switch screws and the multi-function switch.
^ To install, tighten to 3 N-m (0.3 kgf-m, 27 in-lbf).
7. To install, reverse the removal procedure.
