Symptom Related Diagnostic Procedures

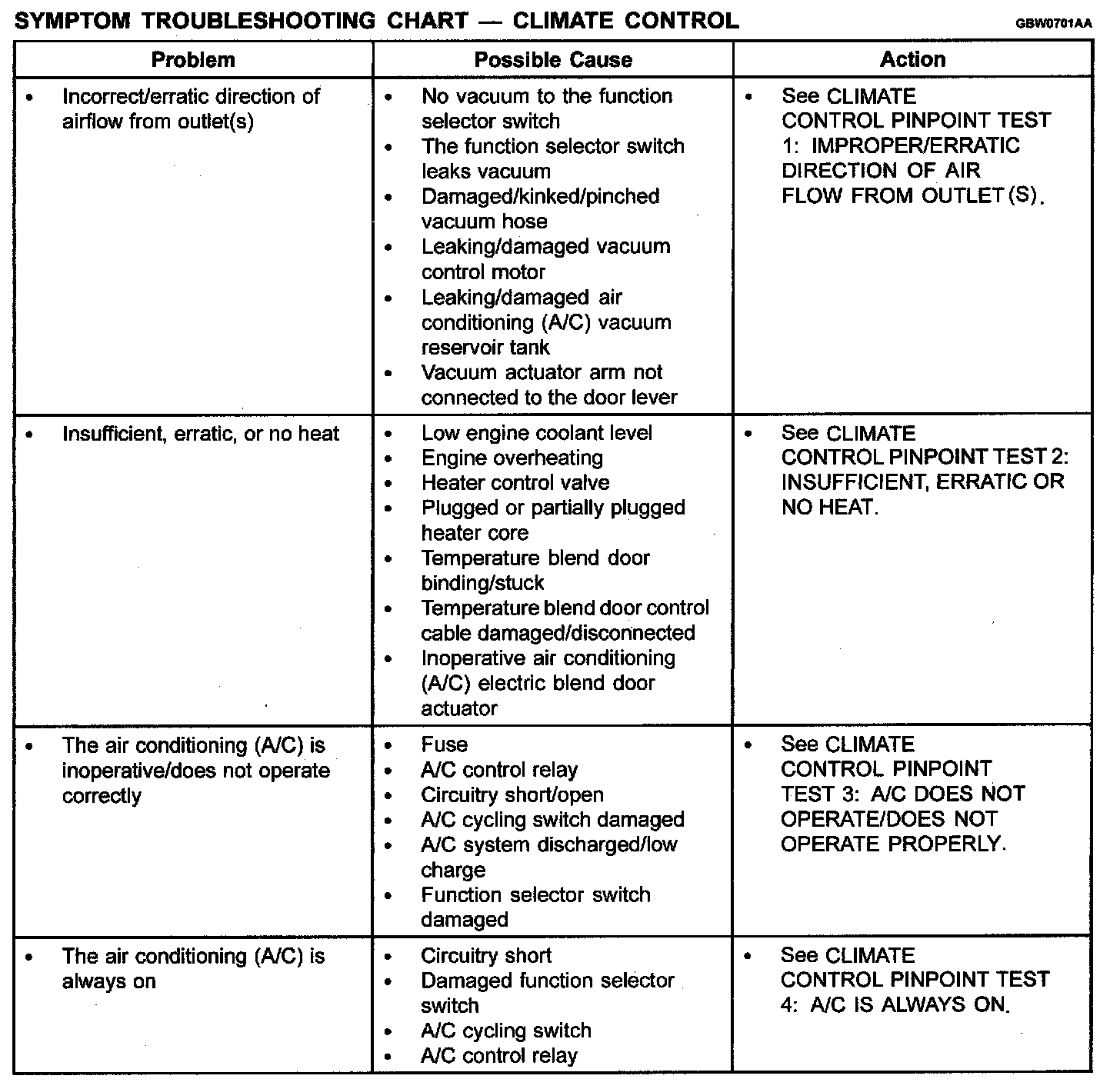

Symptom Troubleshooting Chart-Climate Control (Part 1):

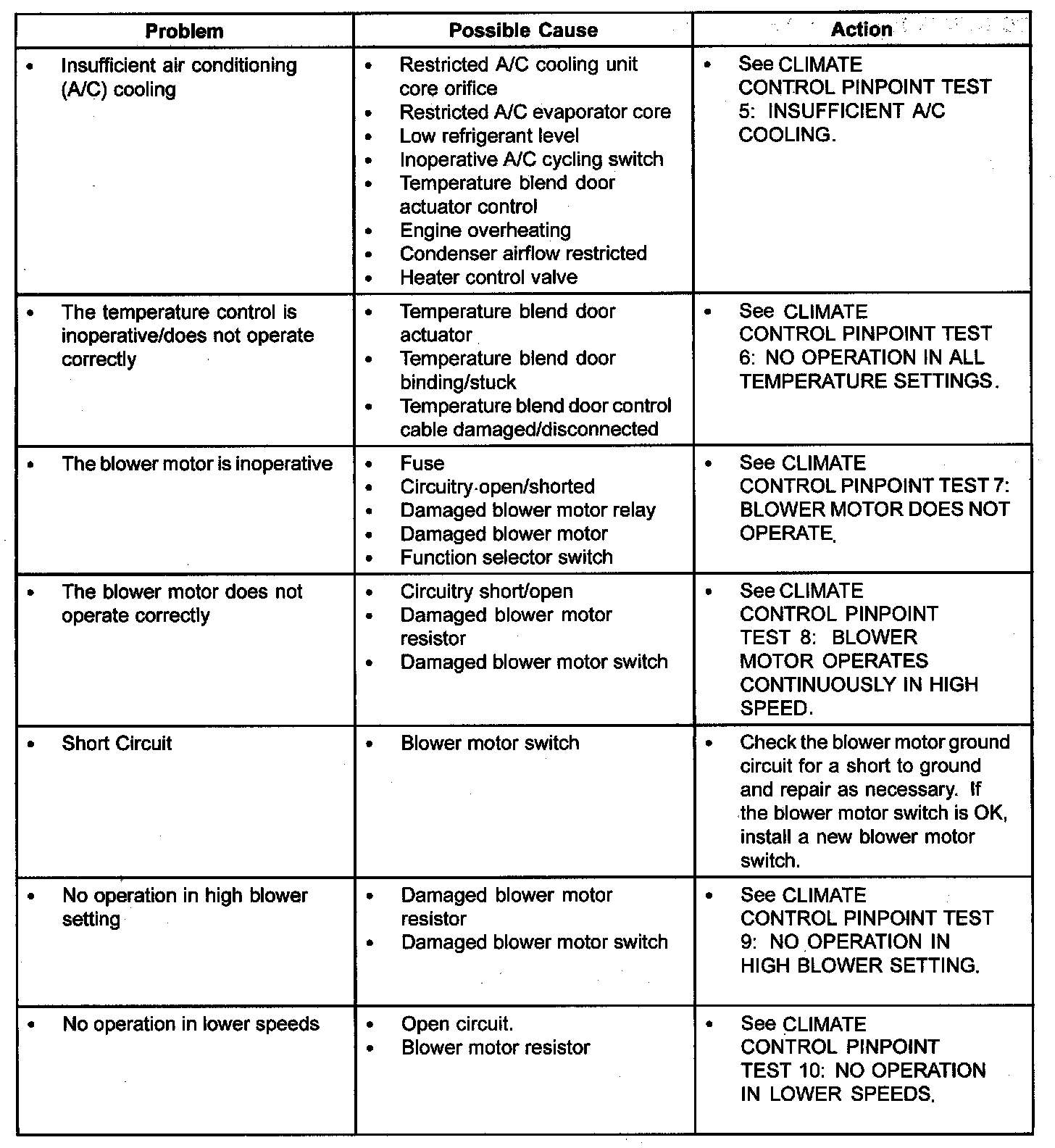

Symptom Troubleshooting Chart-Climate Control (Part 2):
