Dynamic Stability Control (DSC)

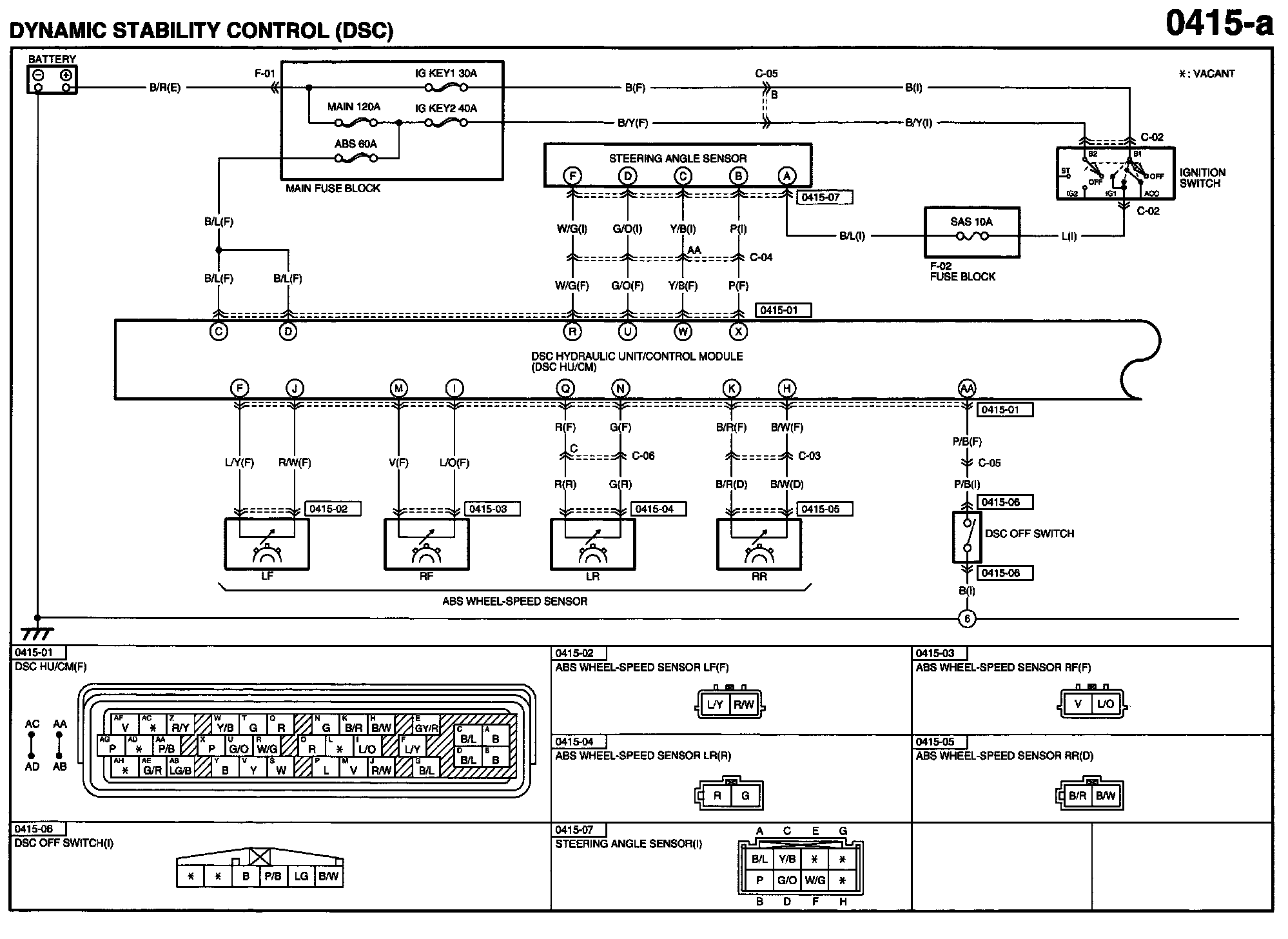

Diagram 0415-a:

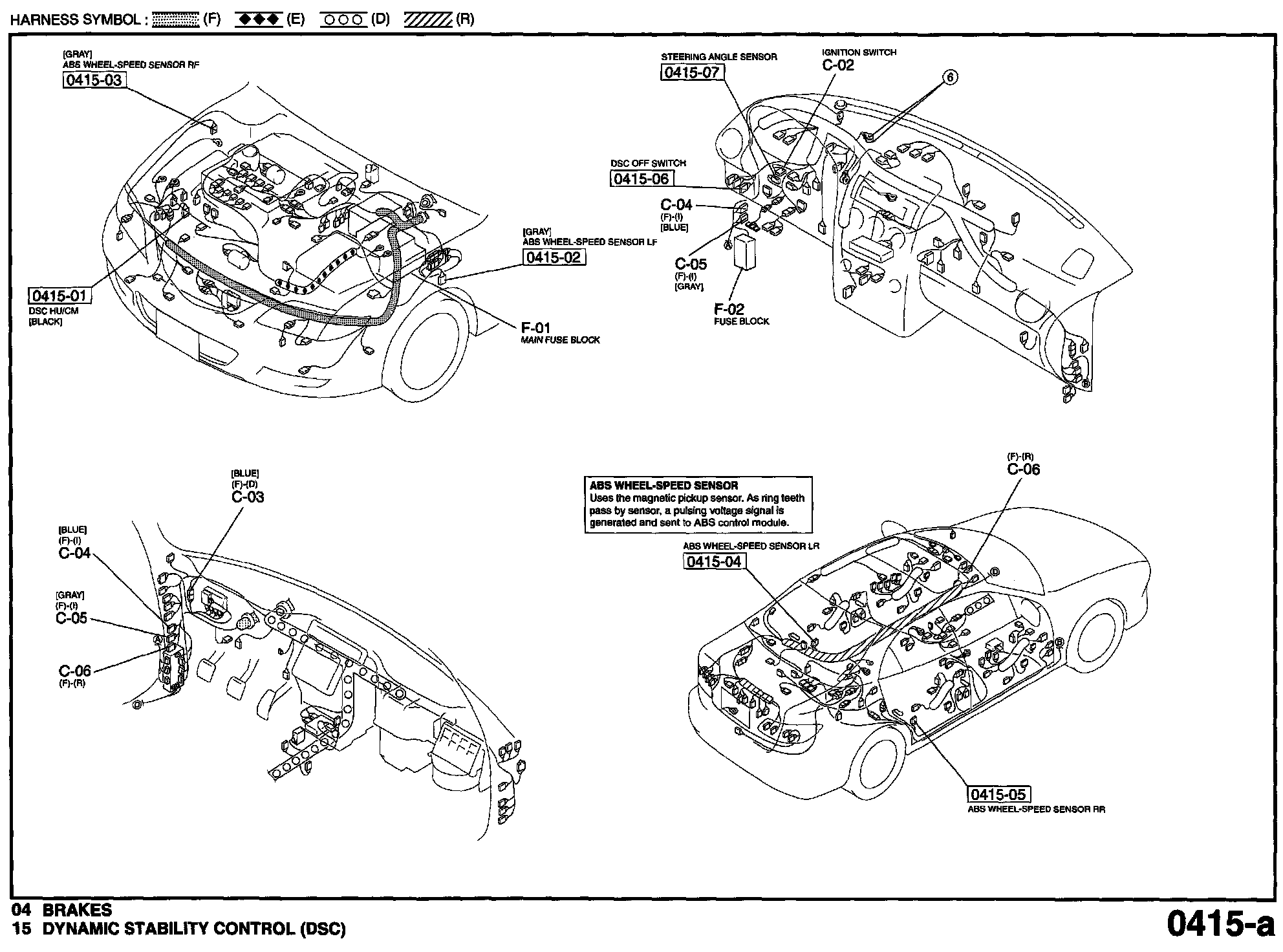

Routing View 0415-a:

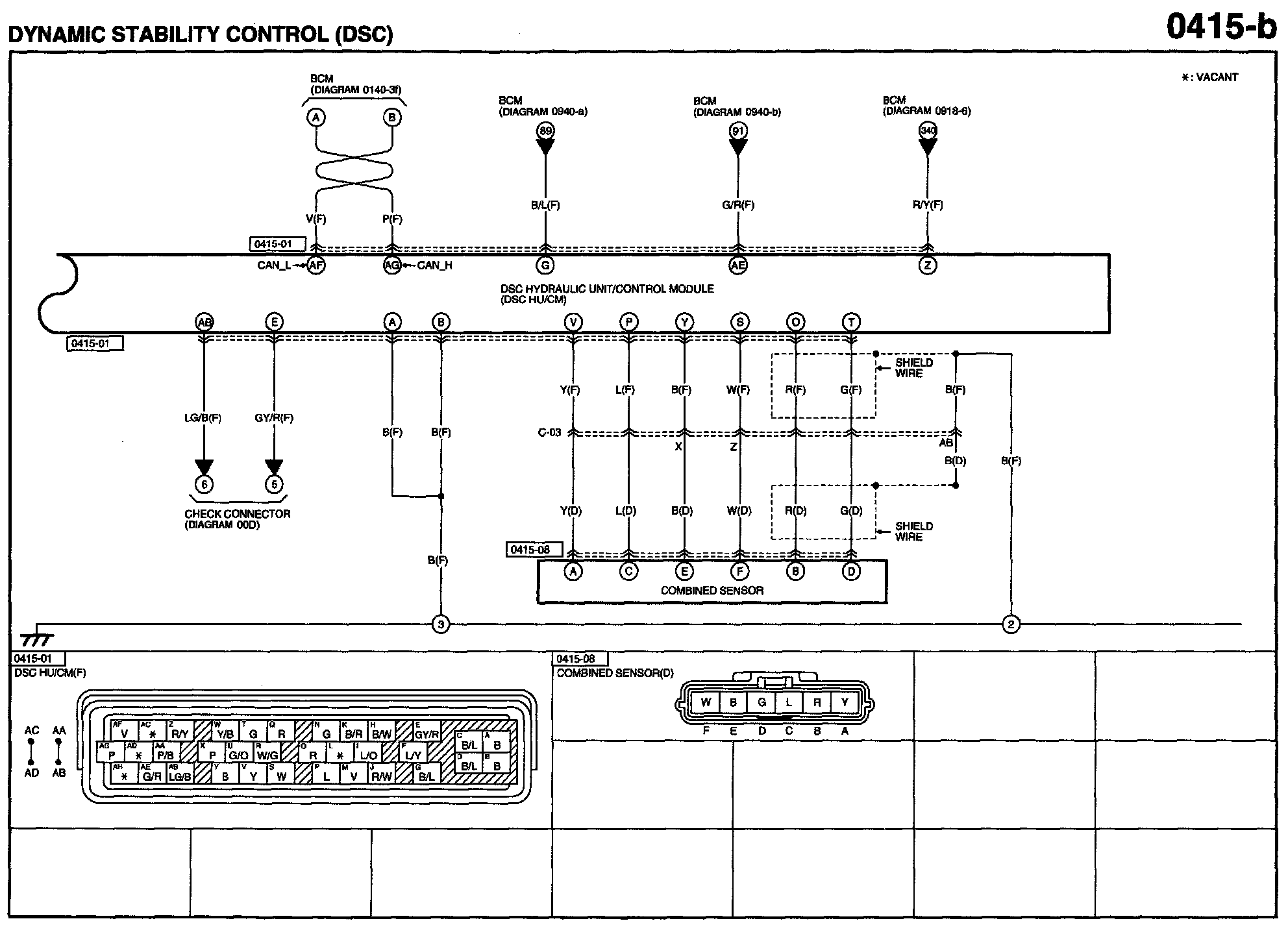

Diagram 0415-b:

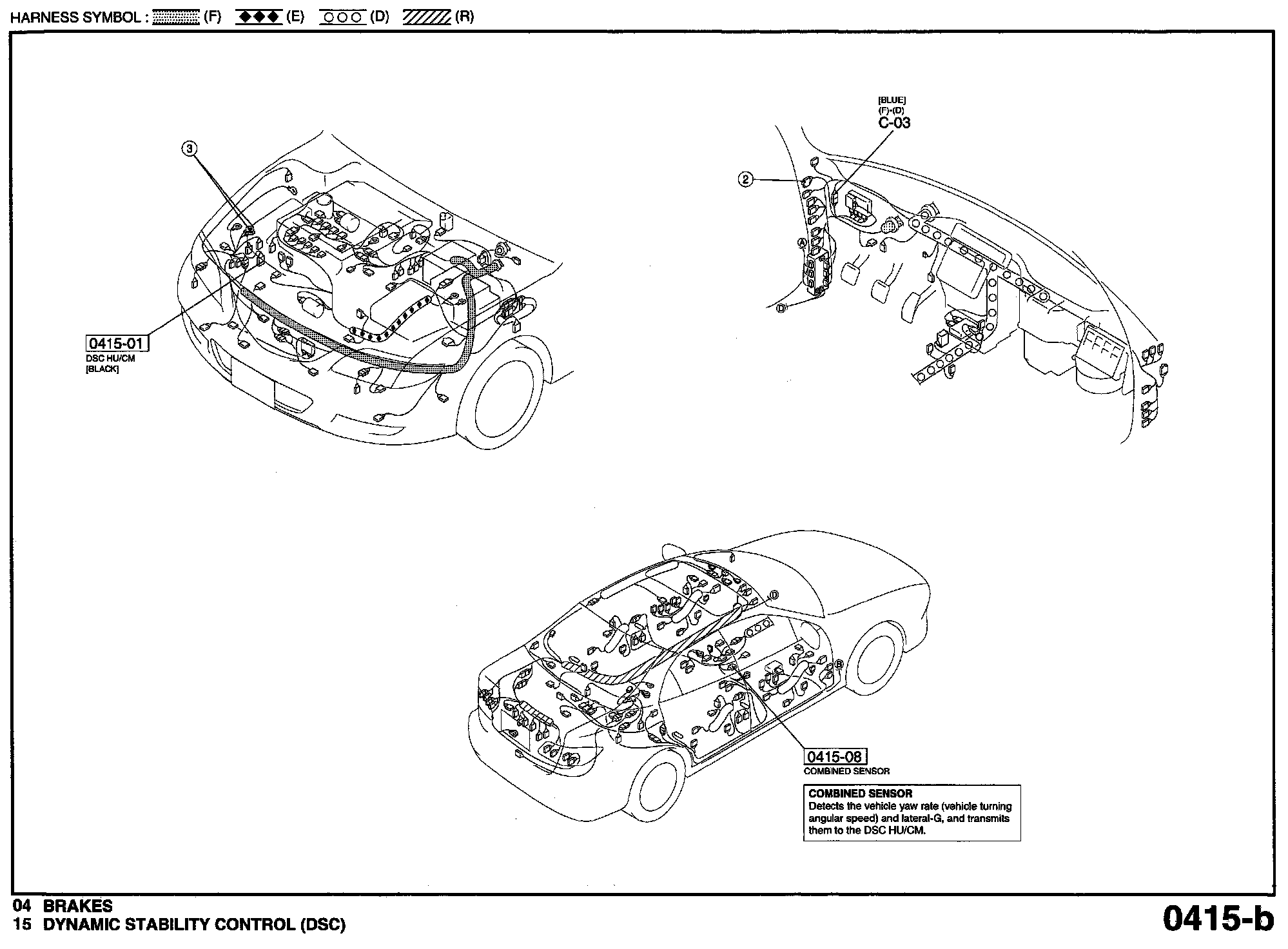

Routing View 0415-b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
