PID/DATA Monitor Table

PID/DATA Monitor Table

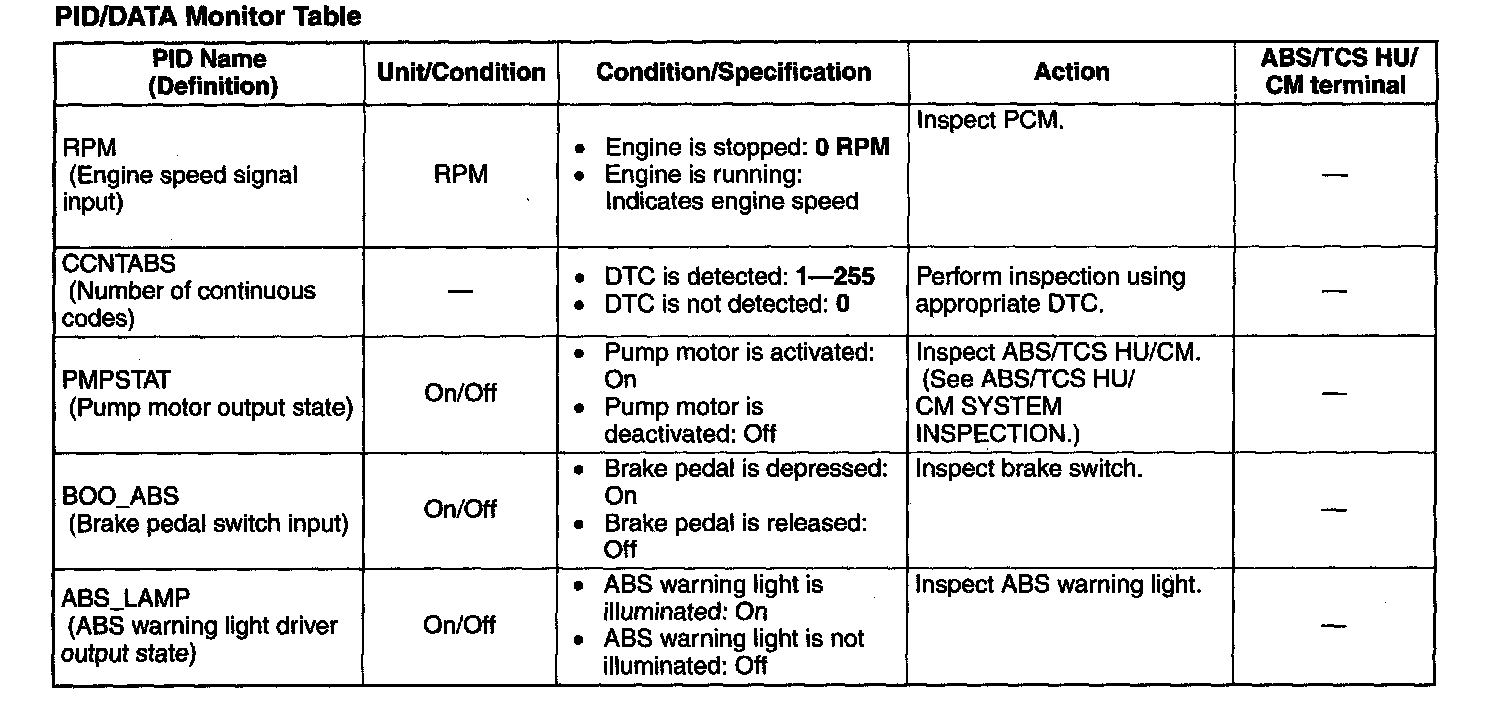

PID/DATA Monitor Table (Part 1):

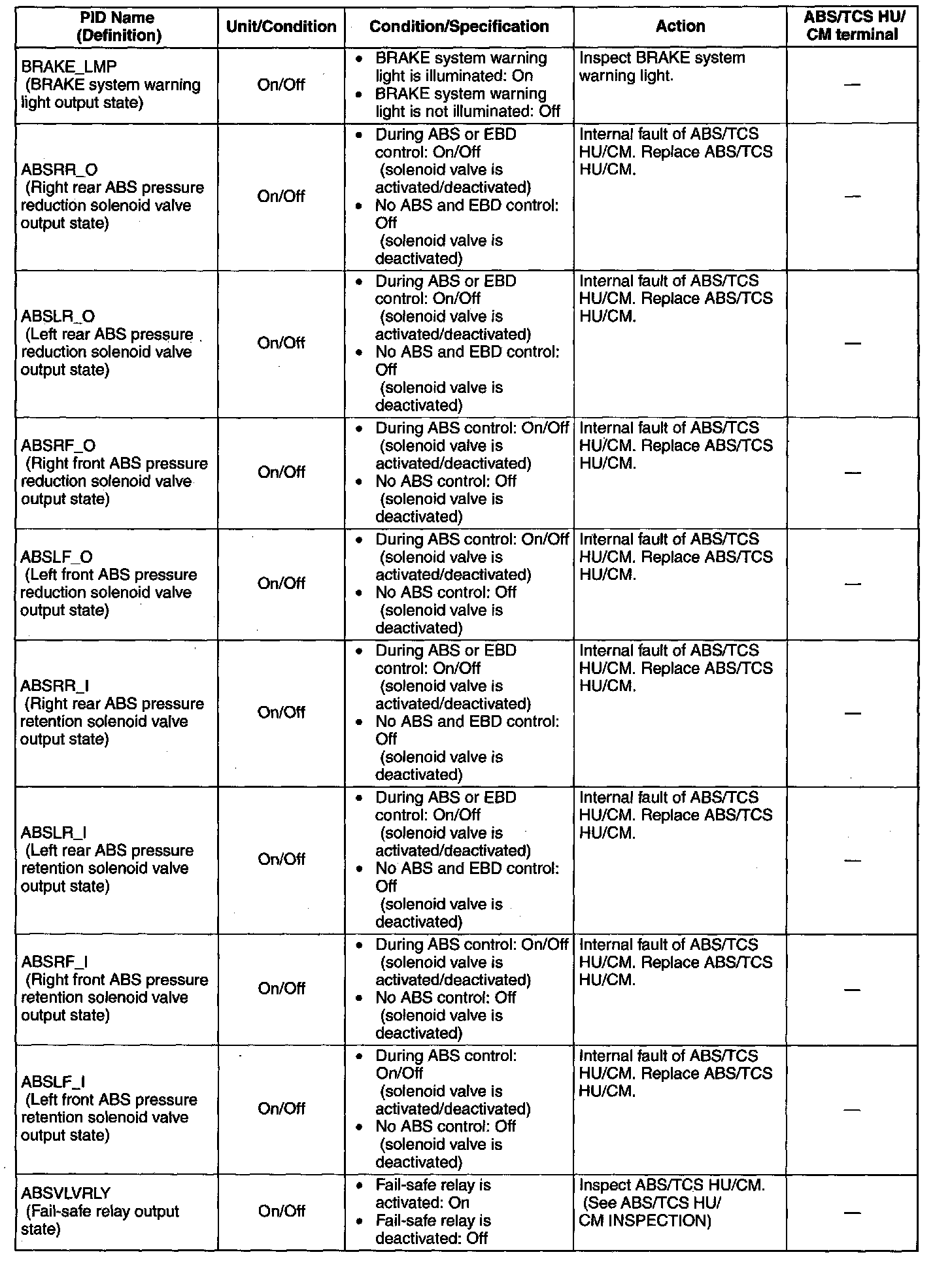

PID/DATA Monitor Table (Part 2):

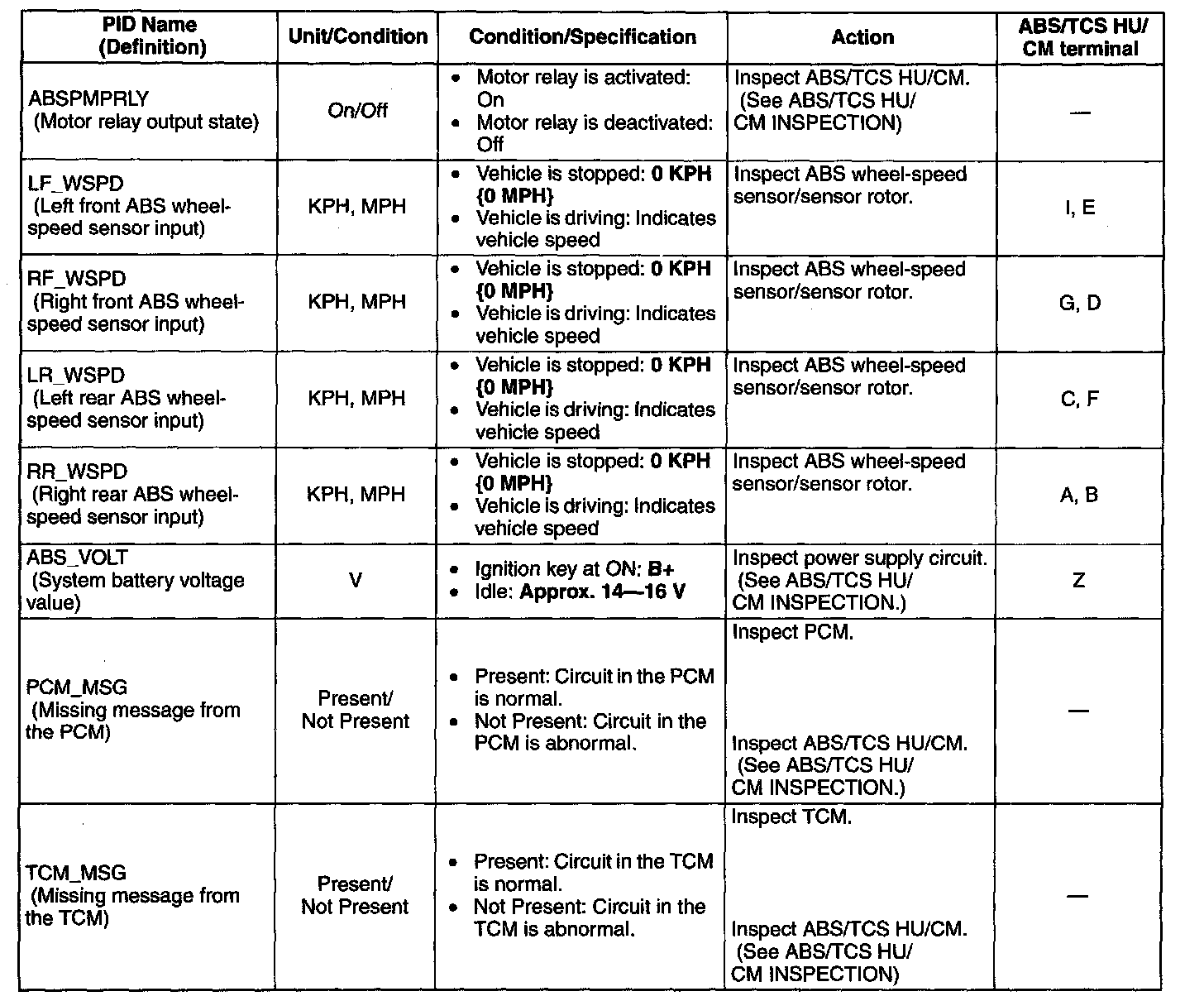

PID/DATA Monitor Table (Part 3):





Active Command Modes Table

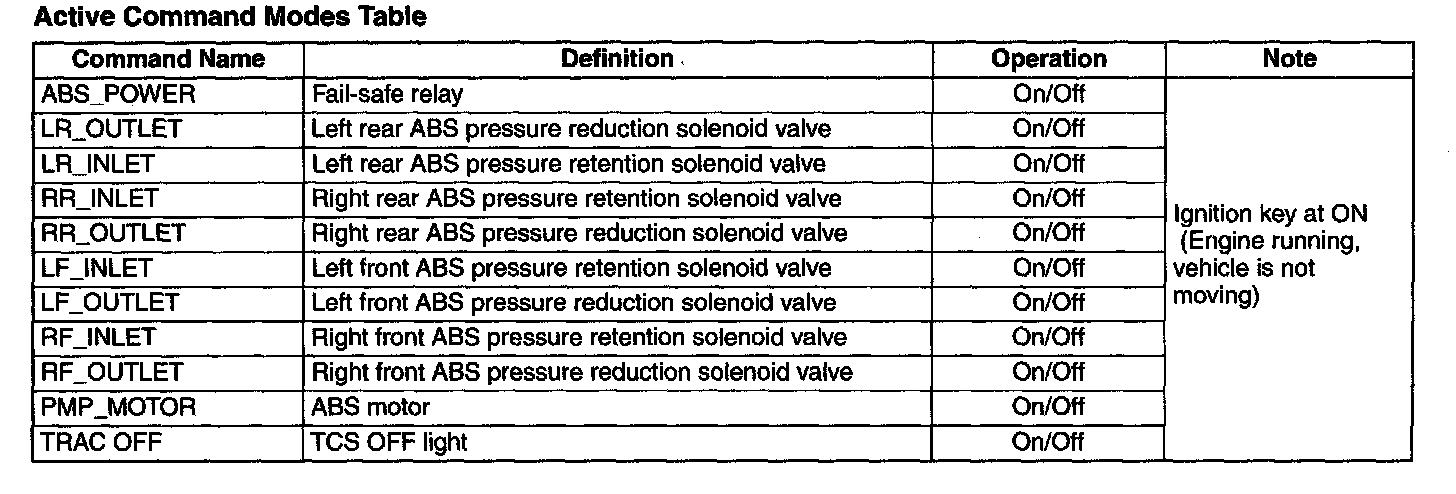

Active Command Modes Table:
