Power Outer Mirror

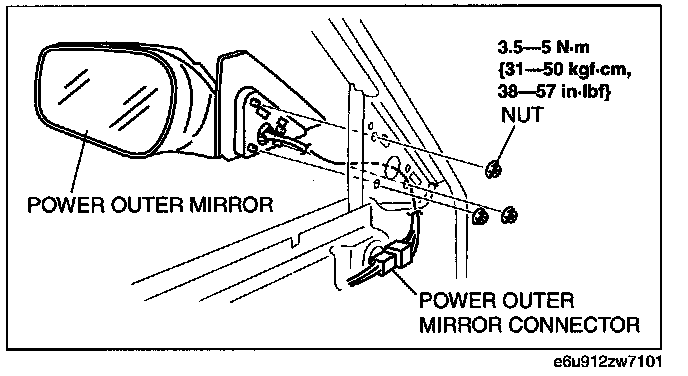

POWER OUTER MIRROR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the inner garnish.
3. Remove the front door trim.




4. Disconnect the power outer mirror connector
5. Remove the nus.
6. Remove the power outer mirror.
7. Install in the reverse order of removal.
