Charging System: Diagrams

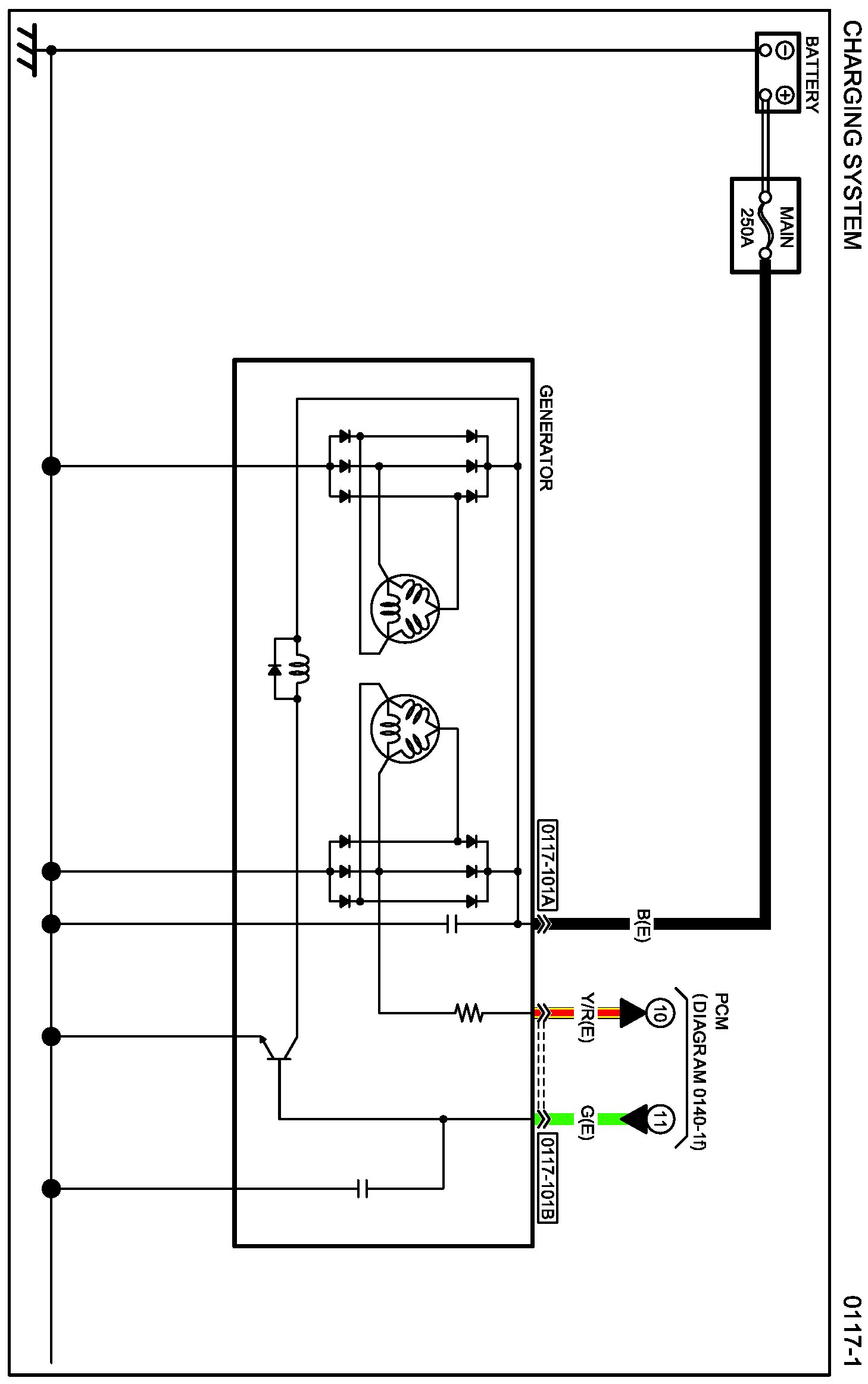

Diagram 0117-1:

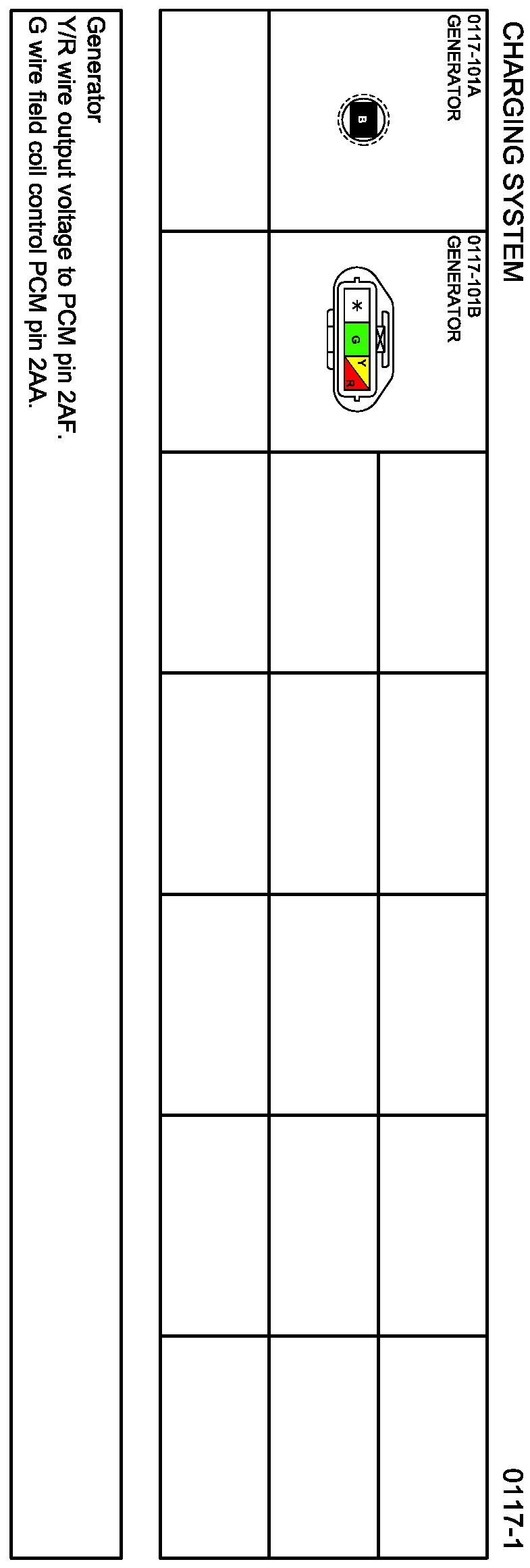

Connectors 0117-1:

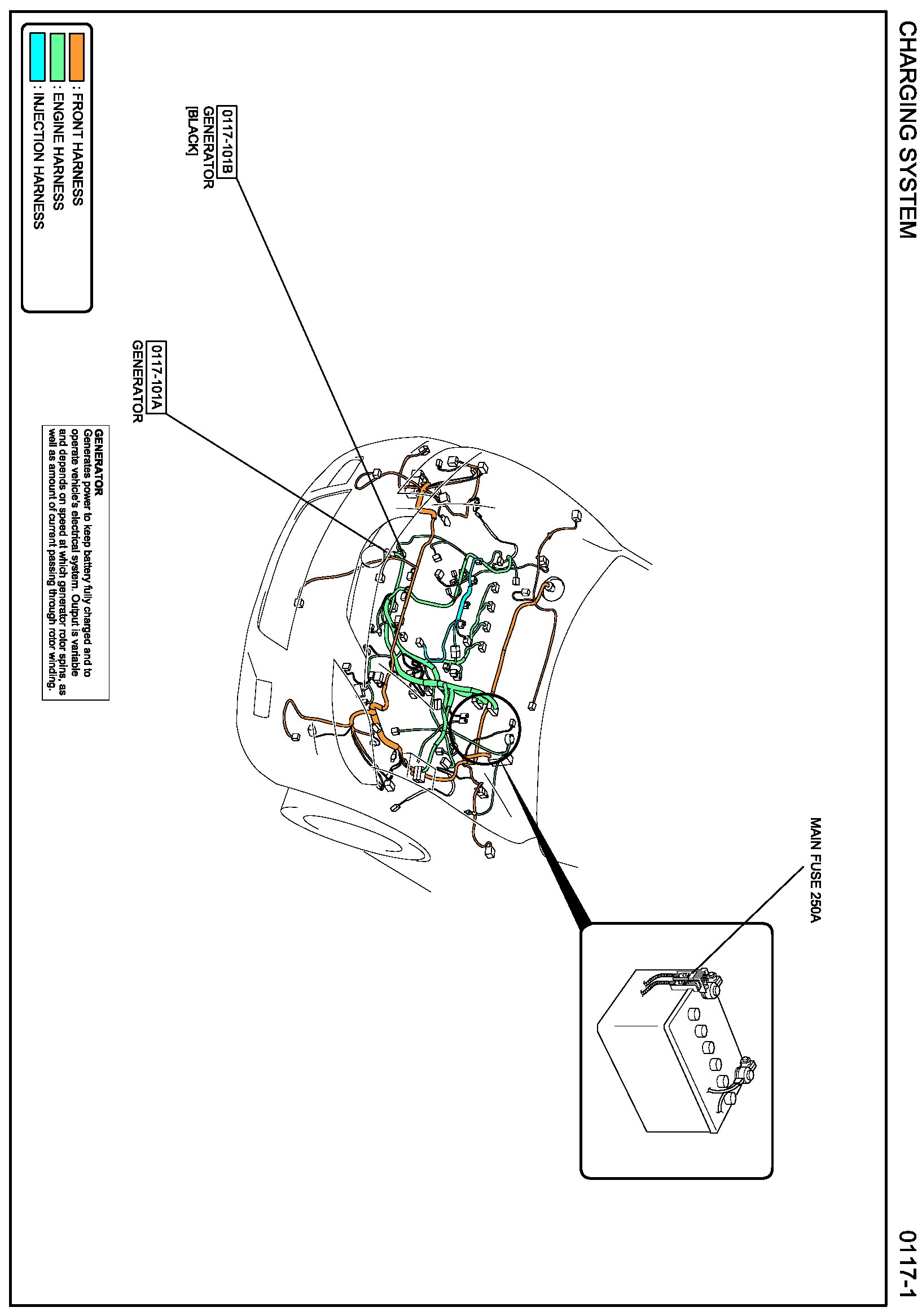

Routing View 0117-1:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
