System Schematic

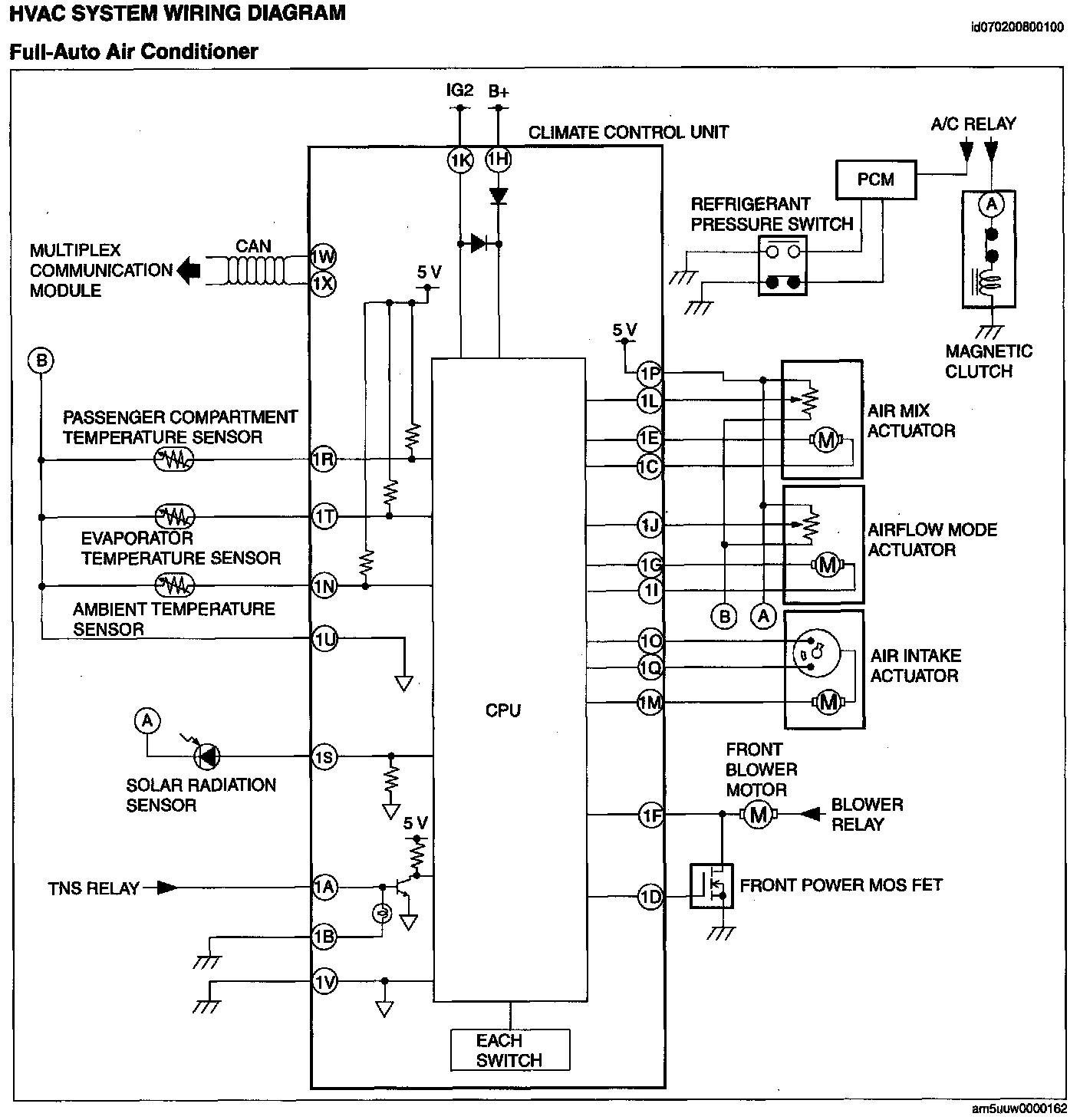

Full-Auto Air Conditioner:



Rear Vent:

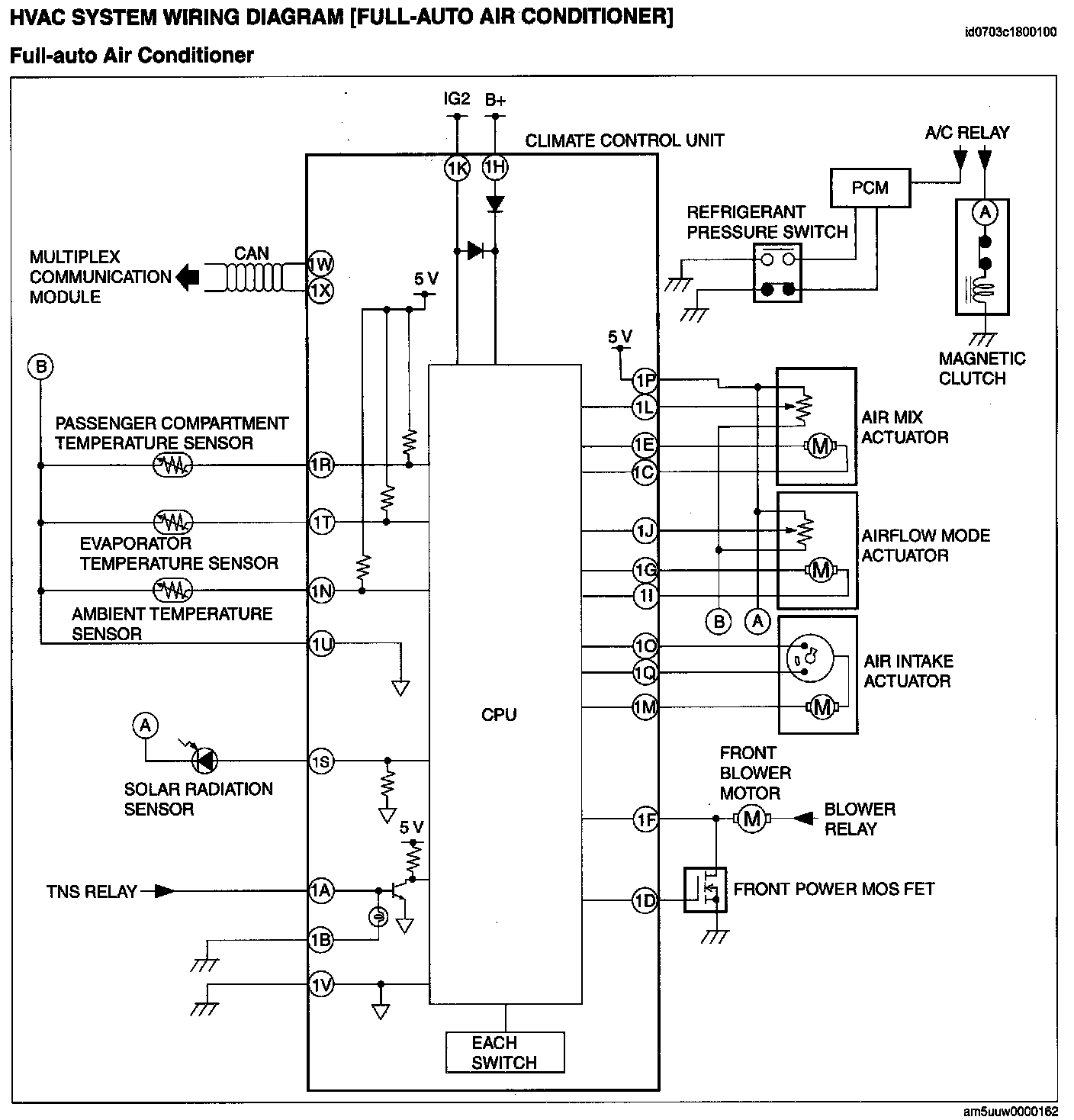

Full-Auto Air Conditioner:



Rear Vent:

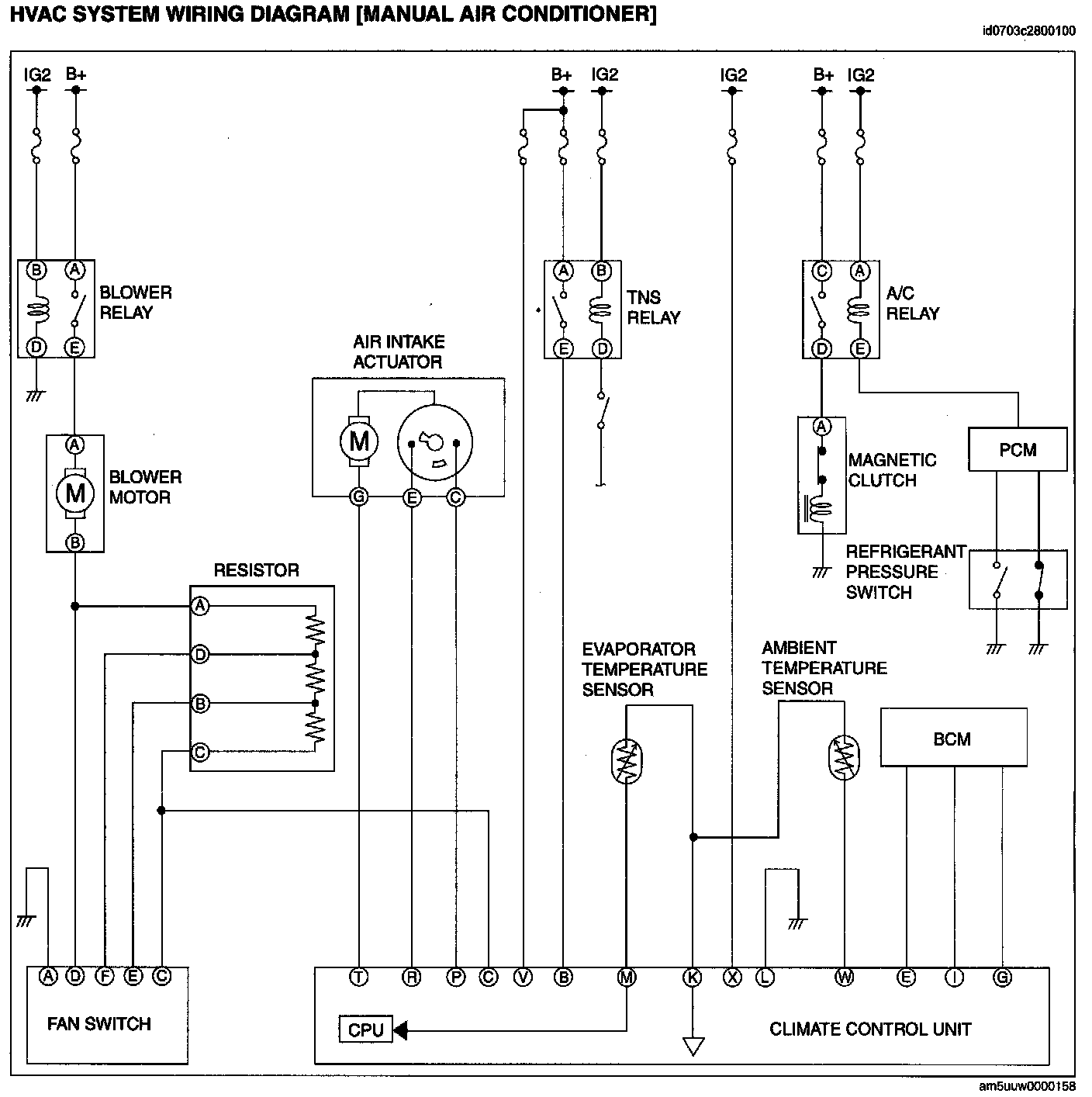

HVAC System Wiring Diagram [Manual Air Conditioner]:
