Engine Disassembly/Assembly

ENGINE DISASSEMBLY/ASSEMBLY [L3]

1. Disconnect the engine and transaxle. (ATX).) (MTX).
2. Remove the following part.
(1) Intake-air system.
(2) Generator.
(3) Ignition coils.
(4) Crankshaft position (CKP) sensor.
3. Assemble in the reverse order of disassembly.

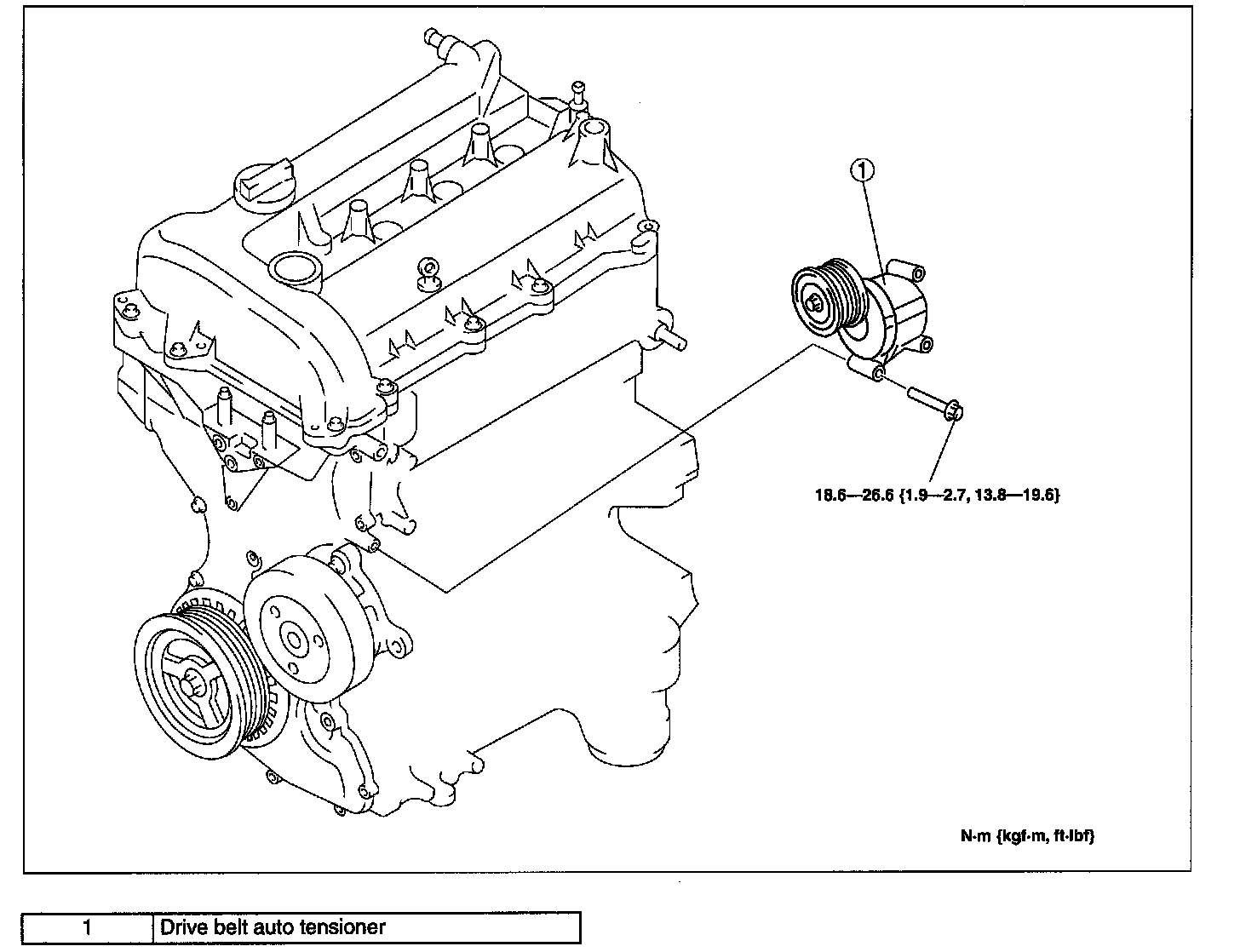

4. Remove in the order indicated in the table.

5. Install the reverse order of removal.
