Door Lock Switch LH

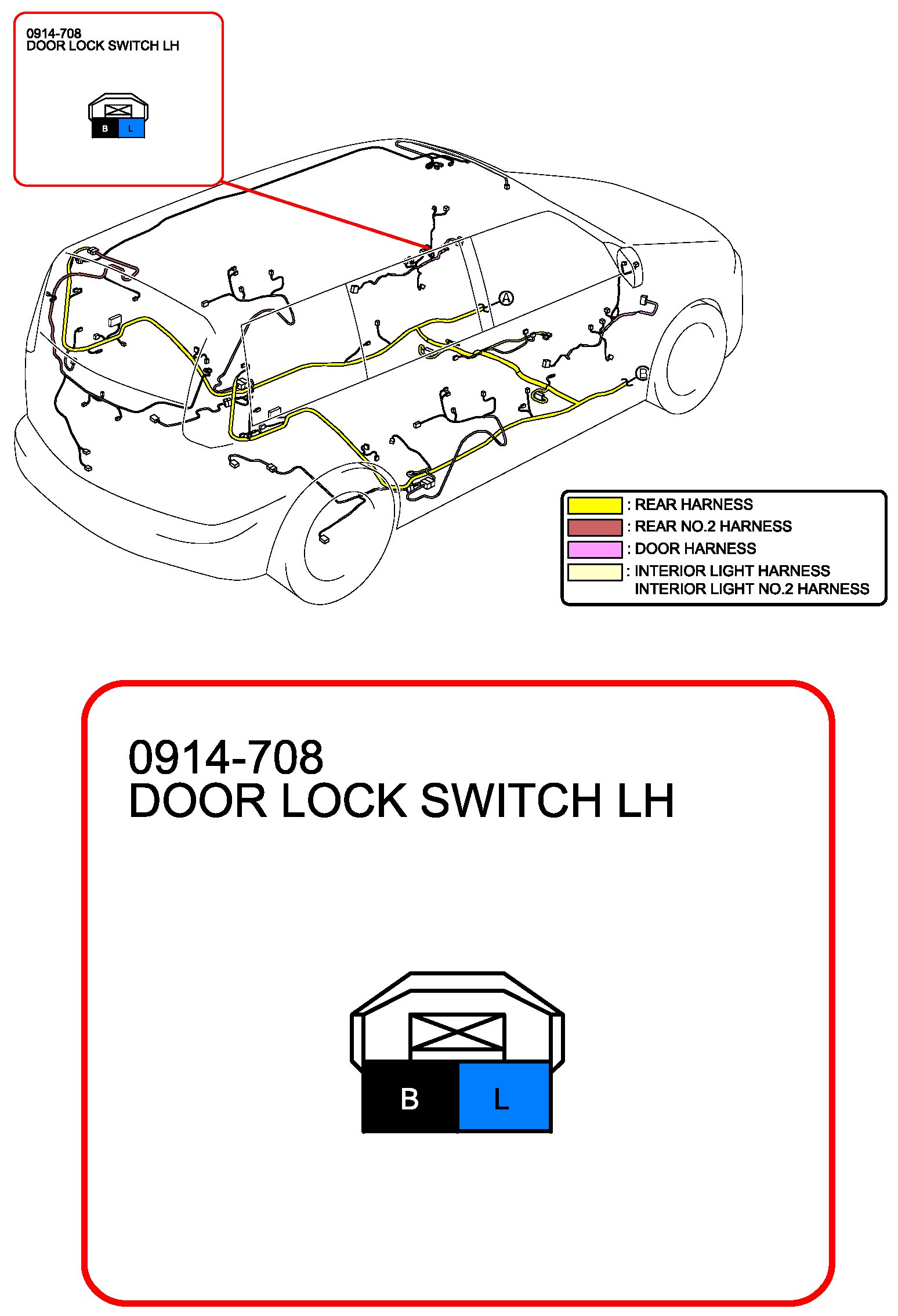

Door Lock Switch LH:



Door Lock Switch RH:

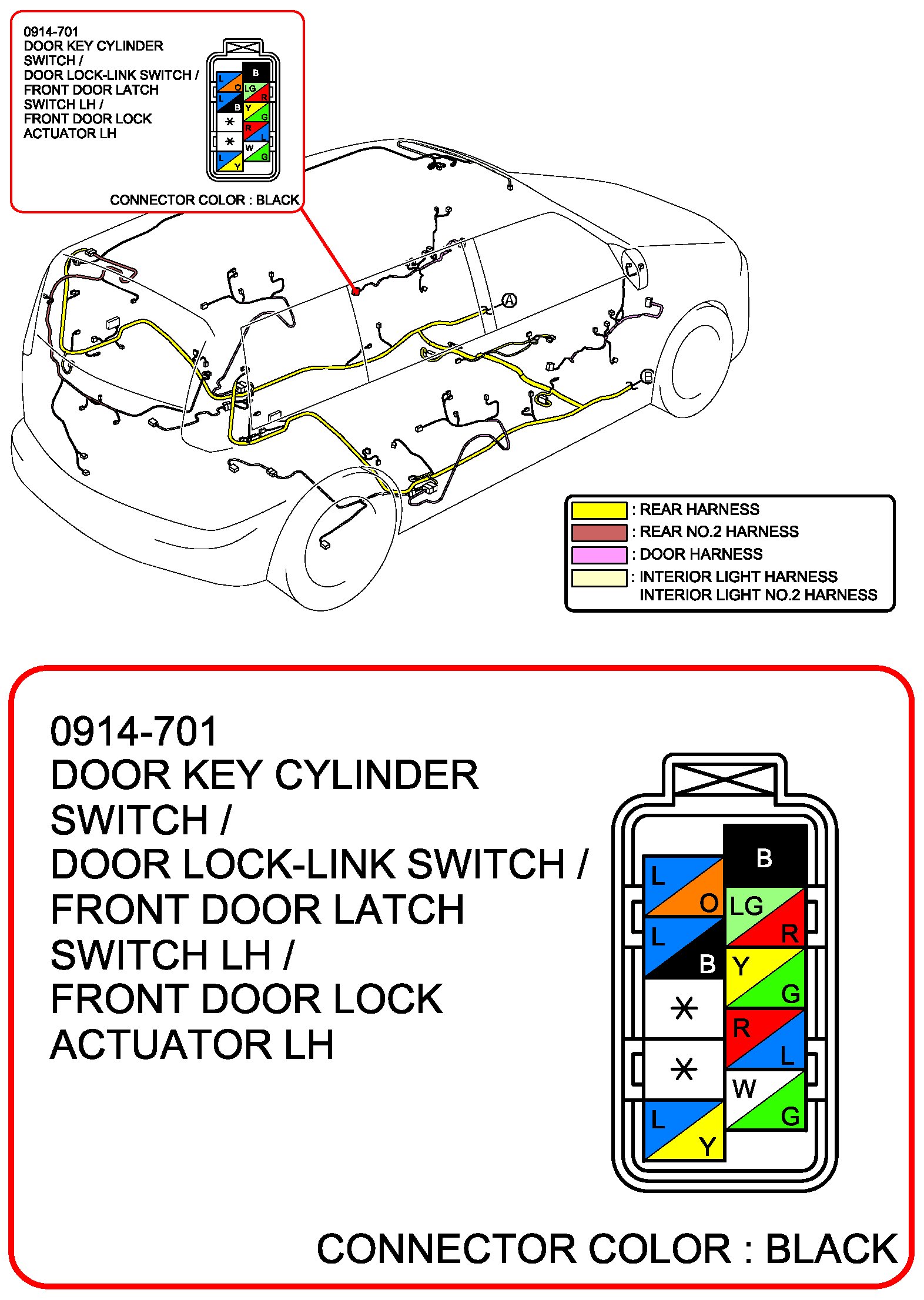

Door Key Cylinder Switch / Door Lock-Link Switch / Front Door Latch Switch LH / Front Door Lock Actuator LH:
