Outer Mirror Glass Removal/Installation

OUTER MIRROR GLASS REMOVAL

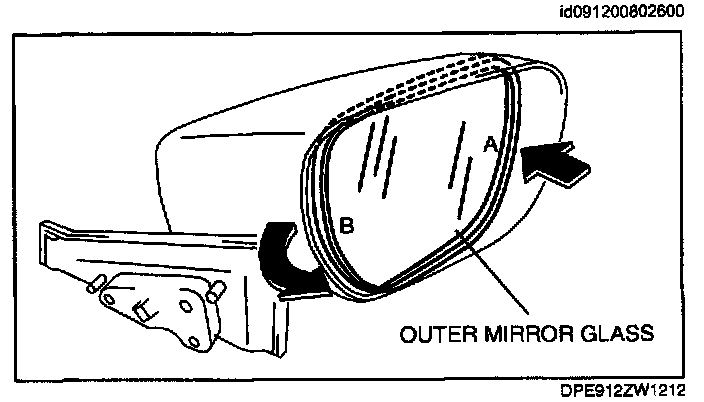

1. Press area A of the mirror glass so that area B moves outward.

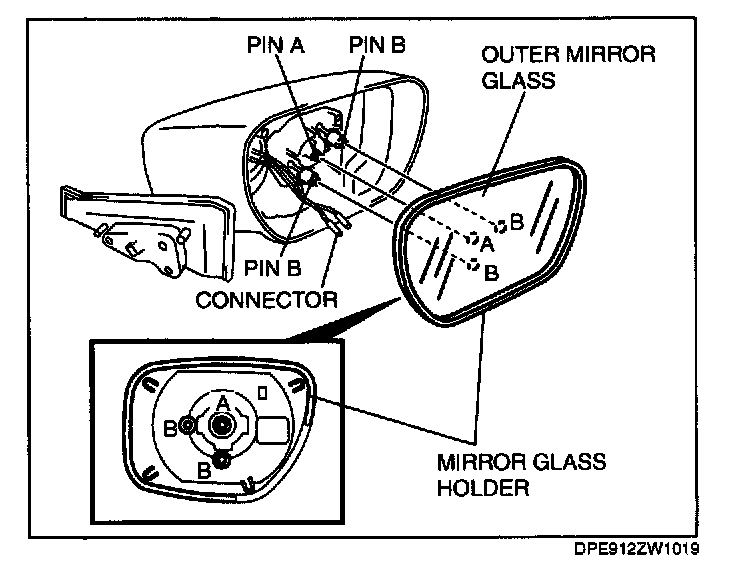

2. Detach pin A while lifting up the inside of the mirror glass holder.
3. Pull the mirror glass holder and remove pins B.
4. Disconnect the connectors, (vehicles with heated outer mirrors)
5. Remove the mirror glass holder and the outer mirror glass as a single unit.

OUTER MIRROR GLASS INSTALLATION

1. Connect the connectors, (vehicles with heated outer mirrors)

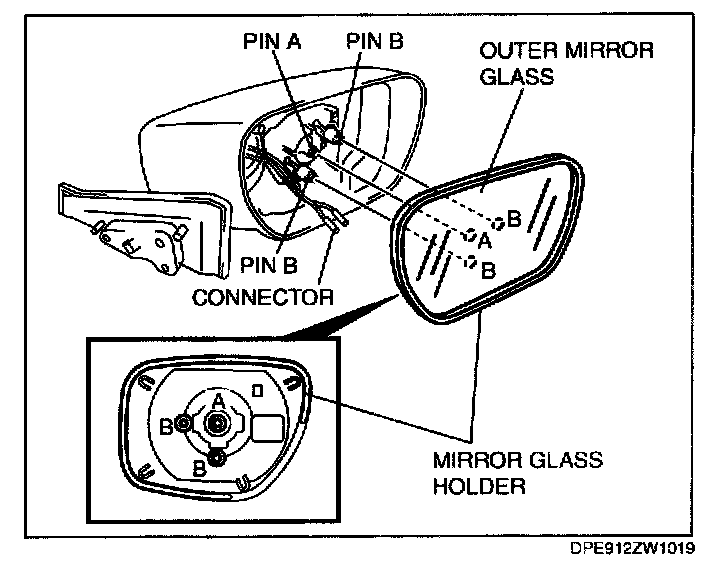

2. Press part A on the outer mirror glass and install pin A
3. Press part B on the outer mirror glass and install pins B.
