MAZDA5 Audio Unit Software Programming Tool Connection Procedure

Mazda5 Audio Unit Software Programming Tool Connection Procedure (with single CD player only)

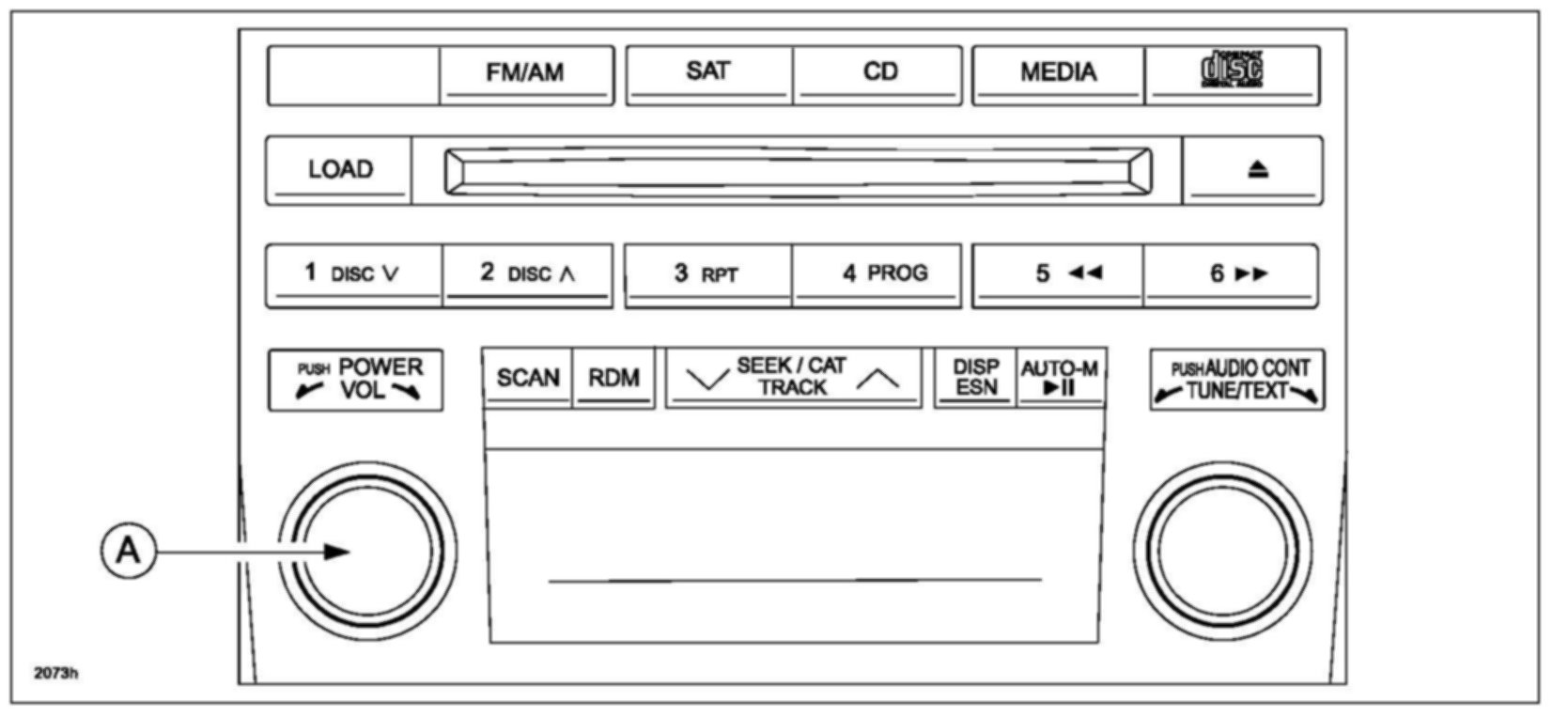

1. Remove the left knob (A) by pulling out using a firm grip, or by using tape.

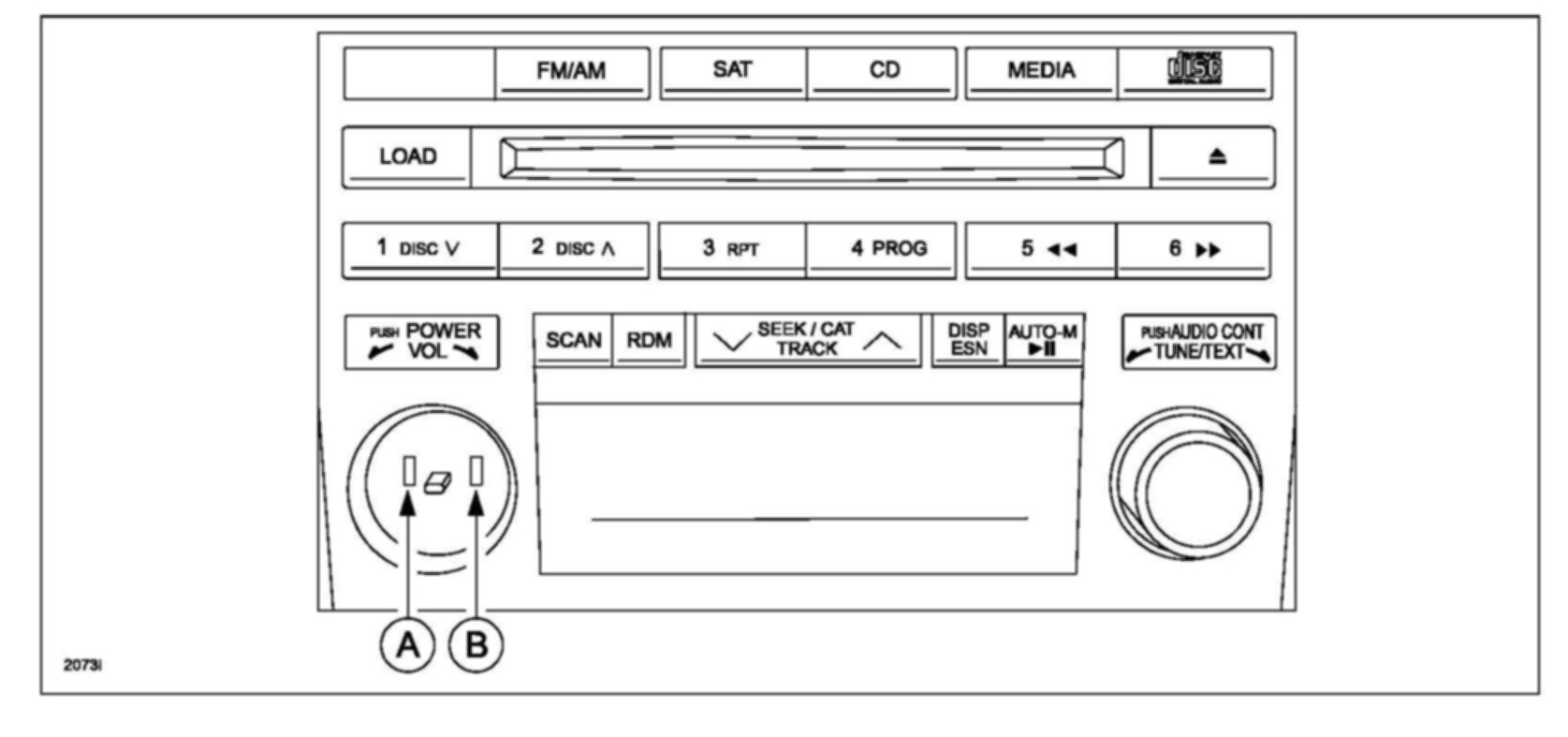

2. Connect the Audio Unit Software Programming Tool connectors.

a. Connect the 4P connector with blue/red/white wires into the left connector (A) under the removed knob.

b. Connect the 4P connector with red/white wires into the right connector (B) under the removed knob.
