MAZDA3 Audio Unit Software Programming Tool Connection Procedure

Mazda3 Audio Unit Software Programming Tool Connection Procedure

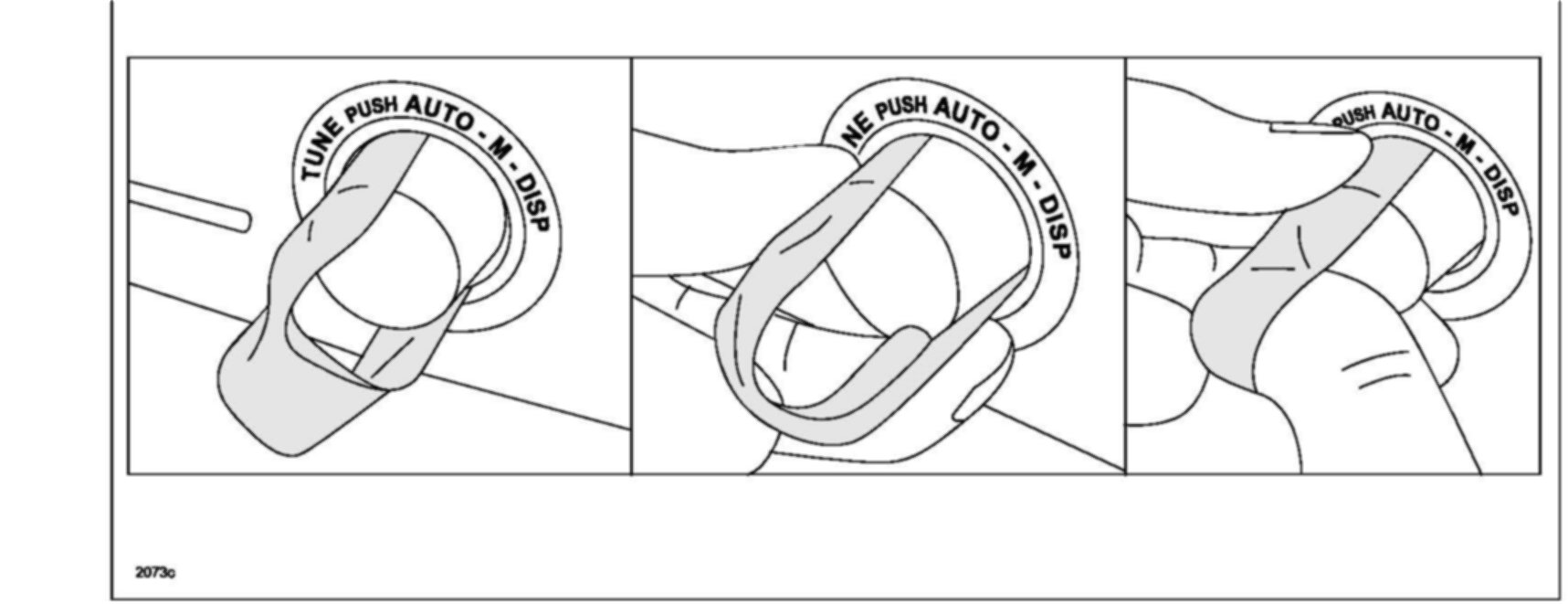

1. Remove the right and left knobs by pulling out using a firm grip, or by using tape as shown.





2. Connect the Audio Unit Software Programming Tool connectors.

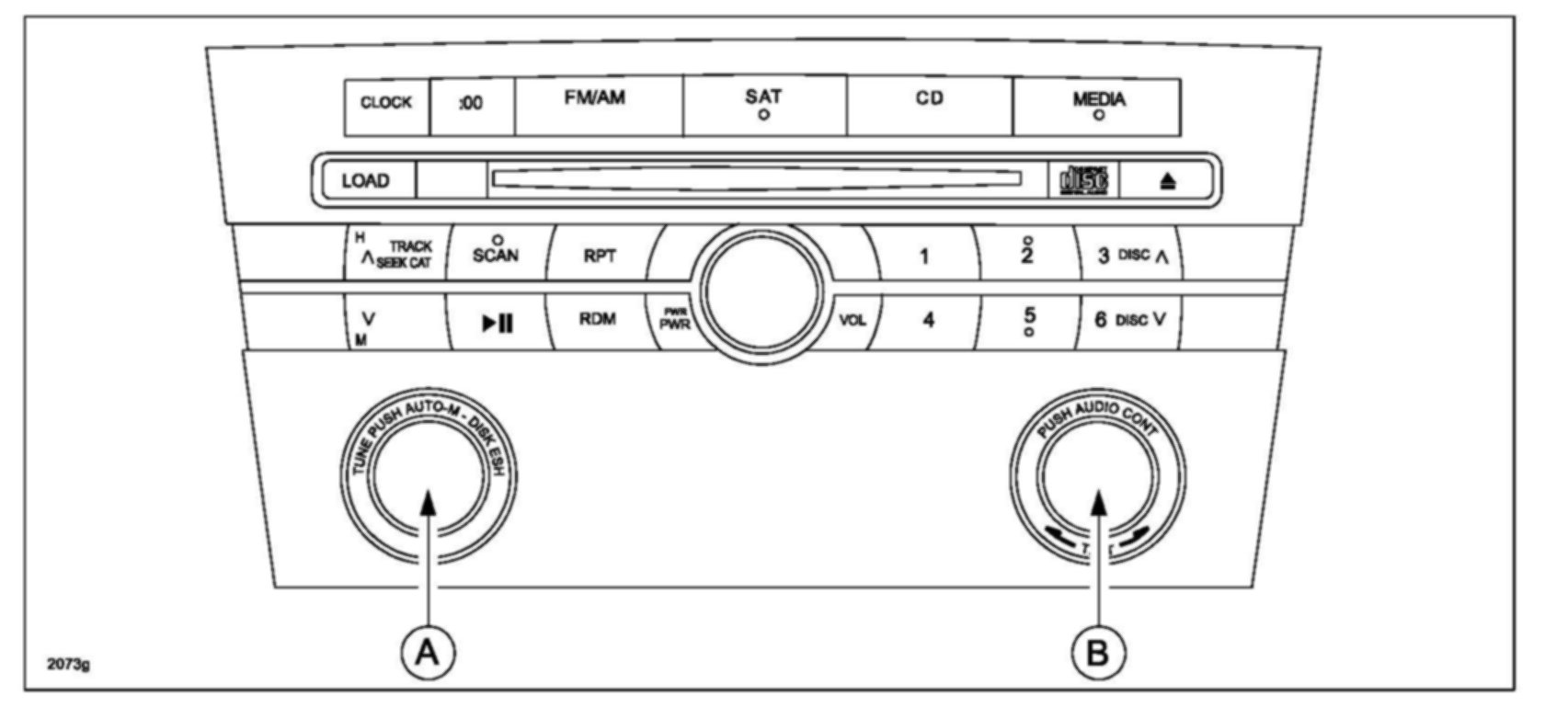

a. Connect the 4P connector with blue/red/white wires into the connector under the left knob (A).

b. Connect the 4P connector with red/white wires into the connector under the right knob (B).
