Transverse Member Removal/Installation

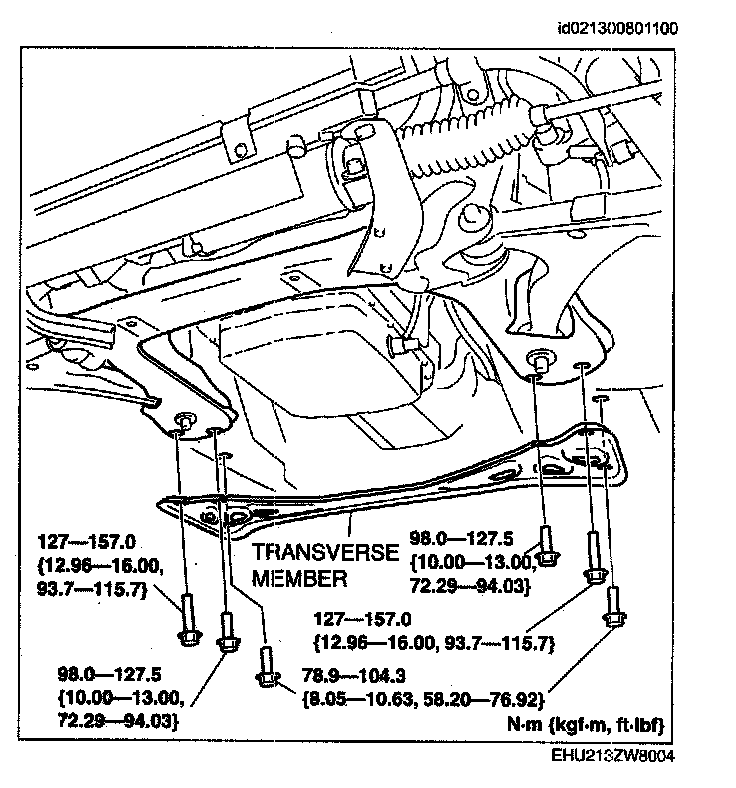

TRANSVERSE MEMBER REMOVAL/INSTALLATION





1. Remove the transverse member.
2. Install the transverse member.

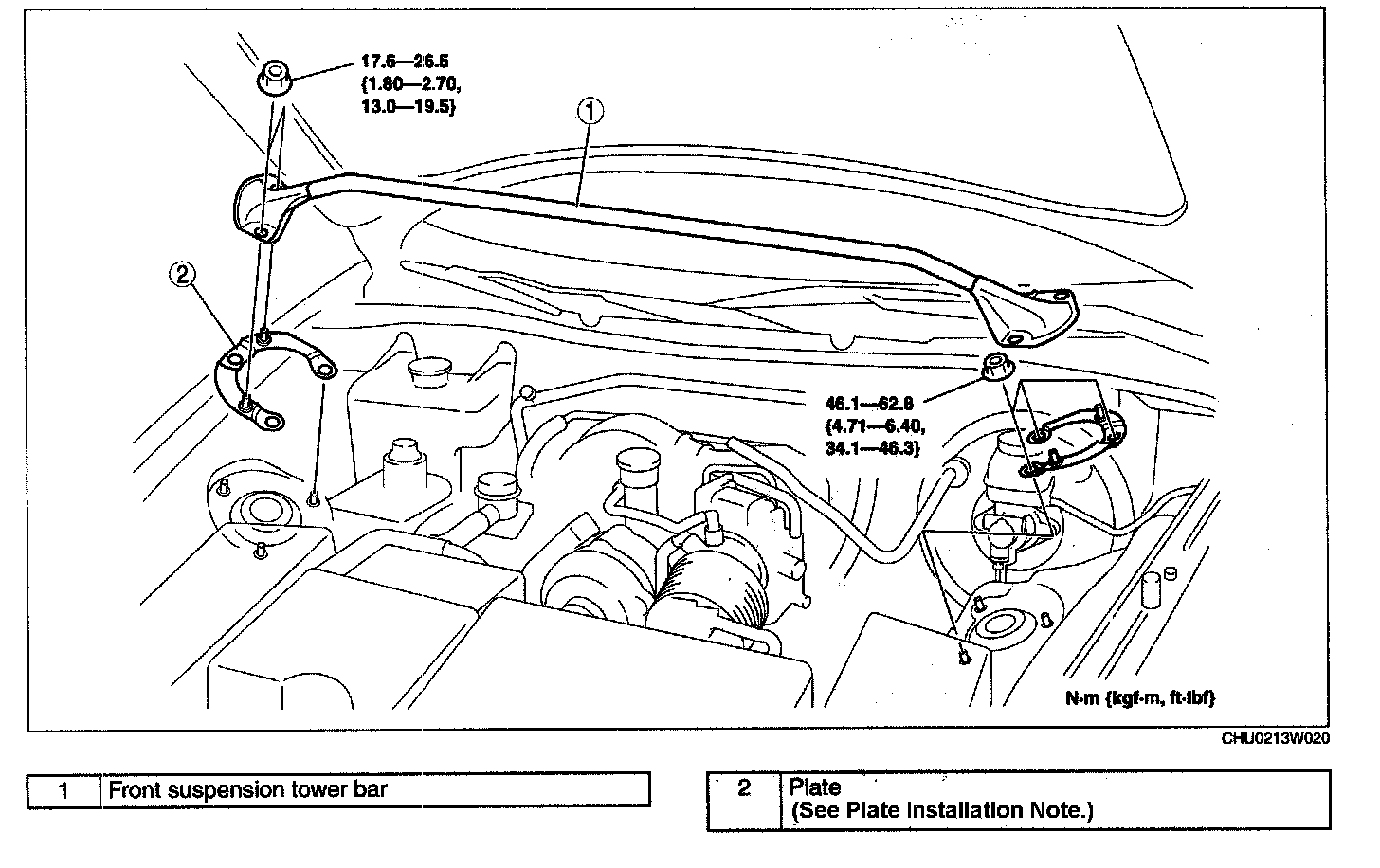

FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.





Plate Installation Note





1. Install the plates with the identification marks facing upward.
