Car-Navigation Control Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the upper panel. (See CONSOLE REMOVAL/INSTALLATION. )
  3. Remove in the order indicated in Fig 1.

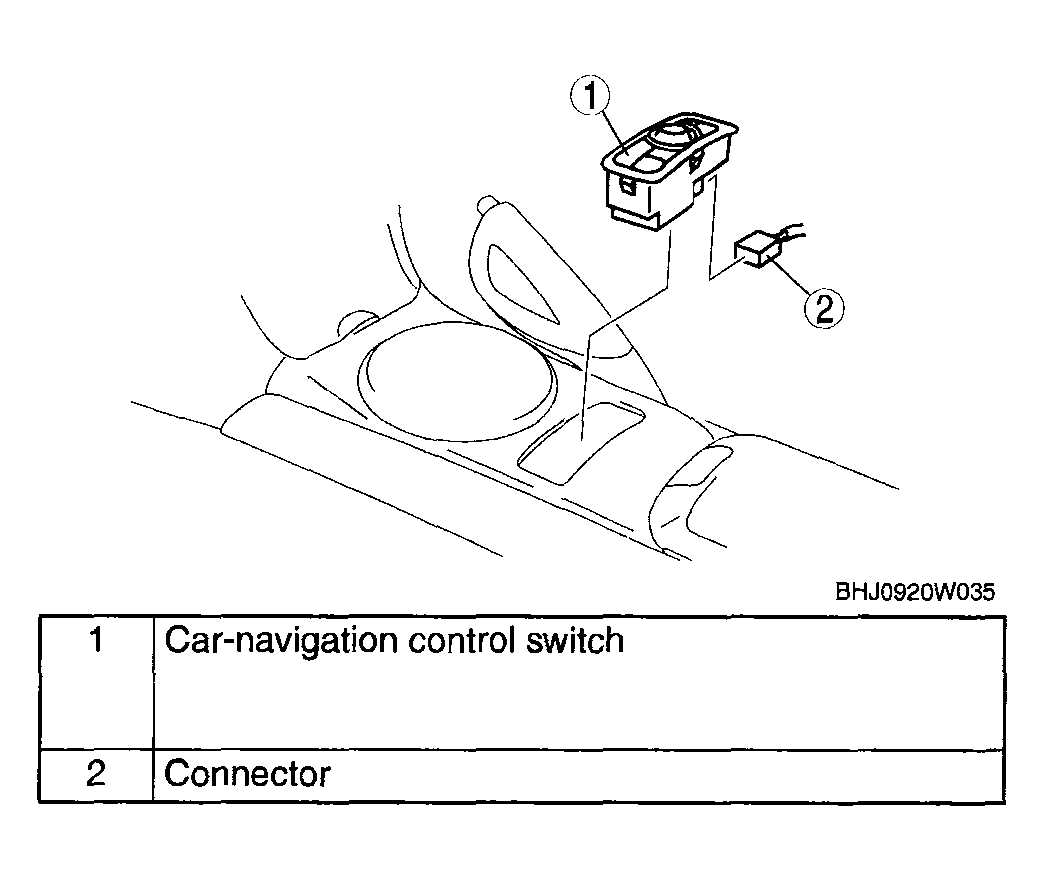

    Fig 1: Removing Car-Navigation Control Switch
    G04564632Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
