Removal and Installation

GENERATOR REMOVAL/INSTALLATION

WARNING: When the battery cables are connected, touching the vehicle body with generator terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery negative cable before performing the following operation.

CAUTION: The generator can be damaged by the heat from the exhaust manifold. Make sure the generator duct is installed securely.

1. Disconnect the negative battery cable.
2. Remove the under cover.
3. Remove the drive belt.
4. Remove the charge air cooler cover.
5. Remove the cowl panel.

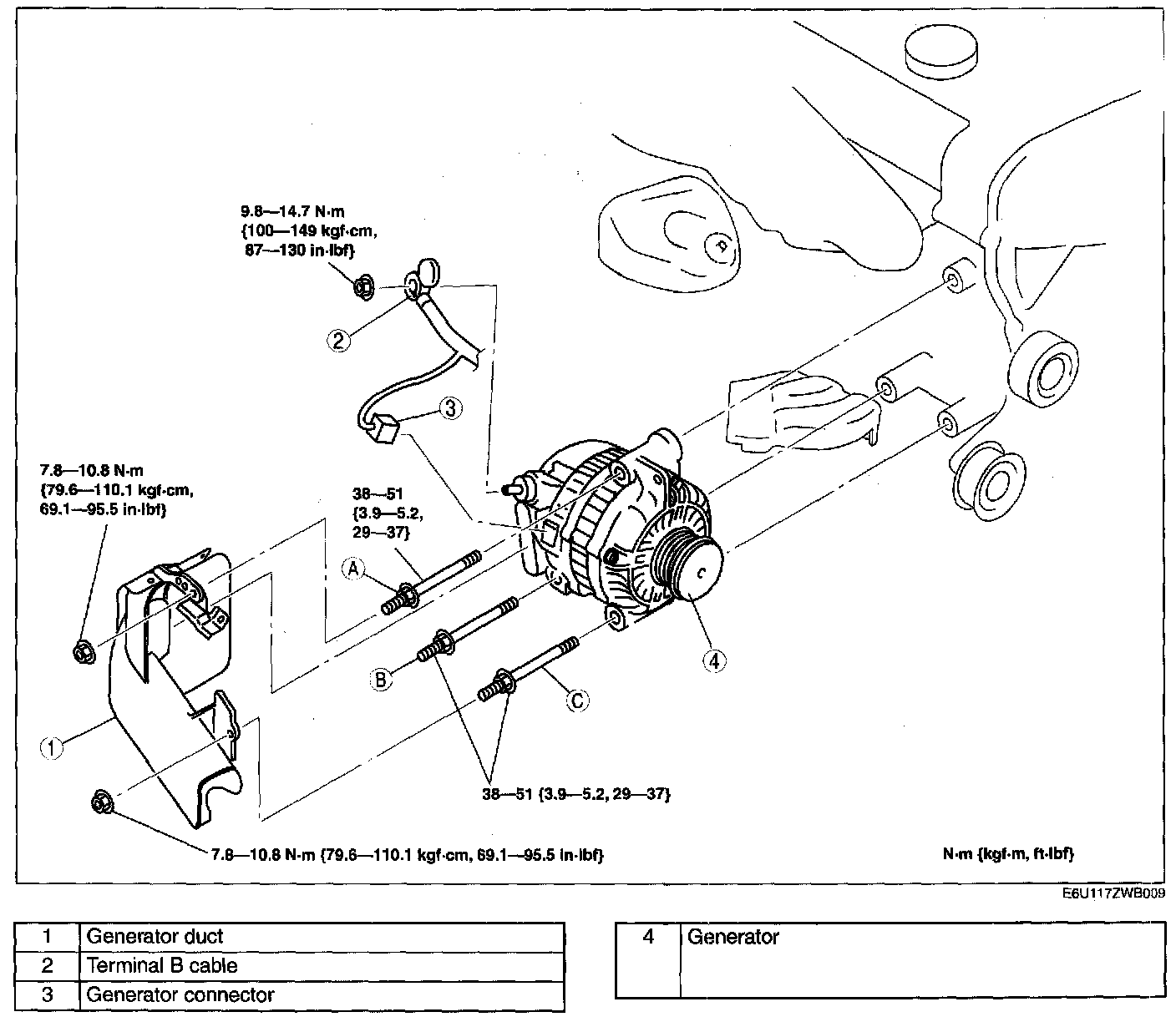

6. Remove in the order indicated in the table.
7. install in the reverse order of removal.

Generator Removal Note
1. Remove the generator from above the engine compartment.

Generator Installation Note
1. Tighten bolt A temporarily.
2. Tighten bolt B, C to the specified tightening torque.
3. Tighten bolt A to the specified tightening torque.
