System Specifications

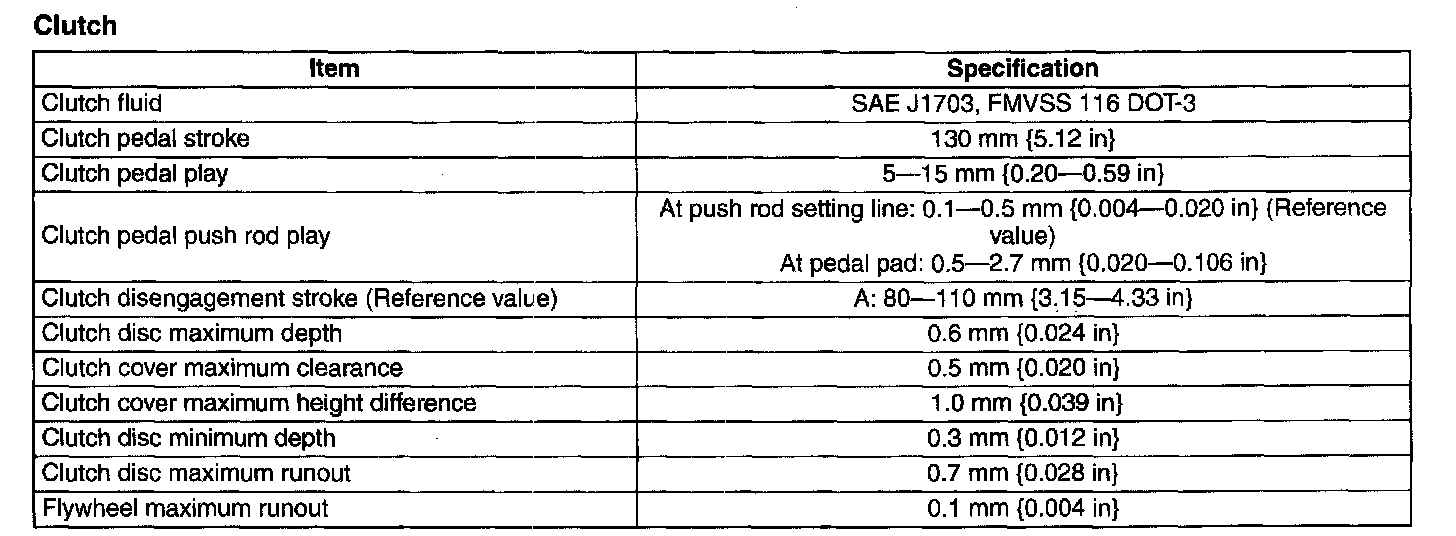

Clutch
Clutch:
Pressure plate bolts
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque 25.0 - 33.0 Nm (2.6 - 3.4 kegs-cm, 18.5 - 24.4 ft. lbs.)
