Main Relay (Computer/Fuel System): Locations

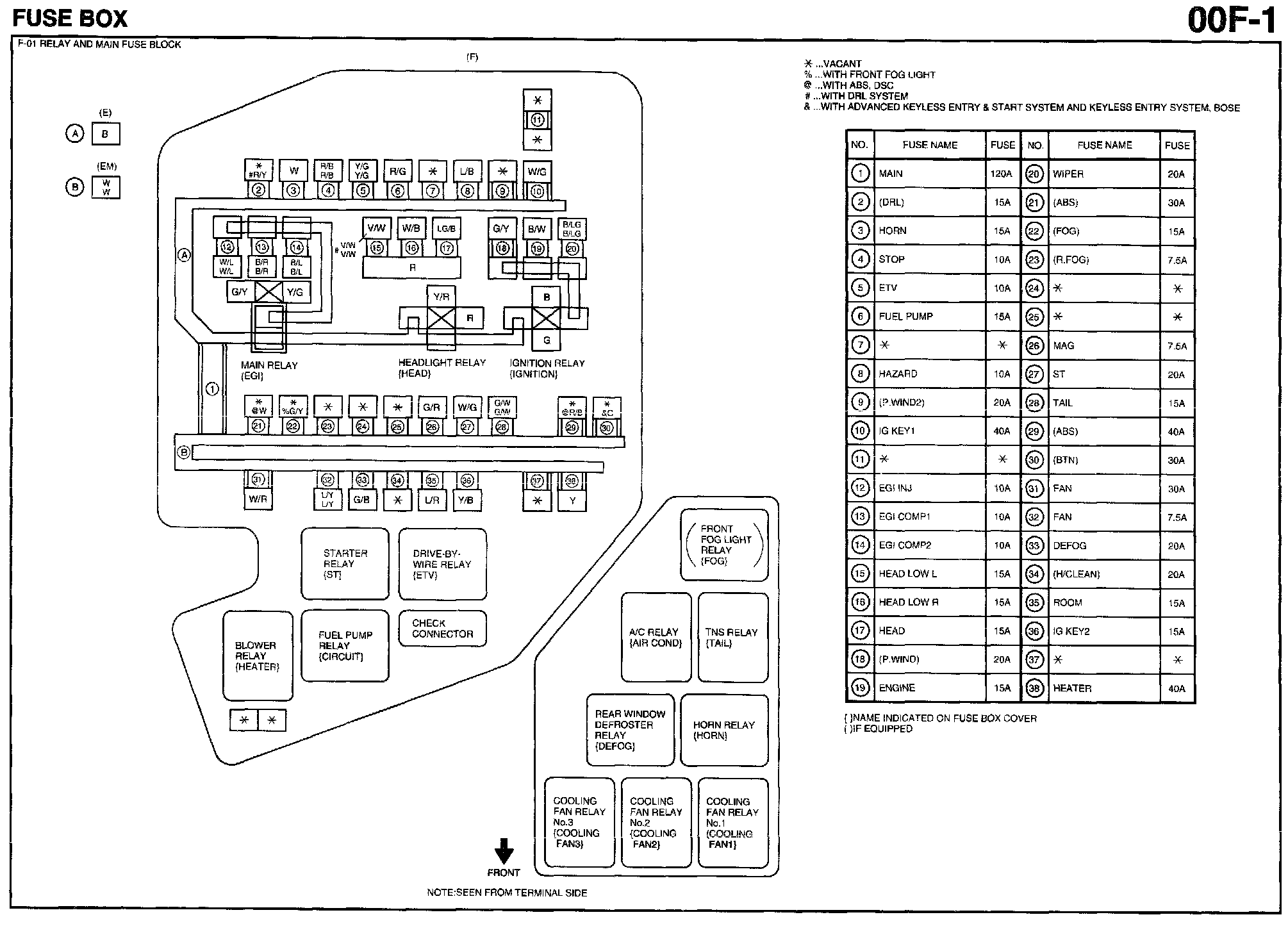

F-01 Relay And Main Fuse Block:

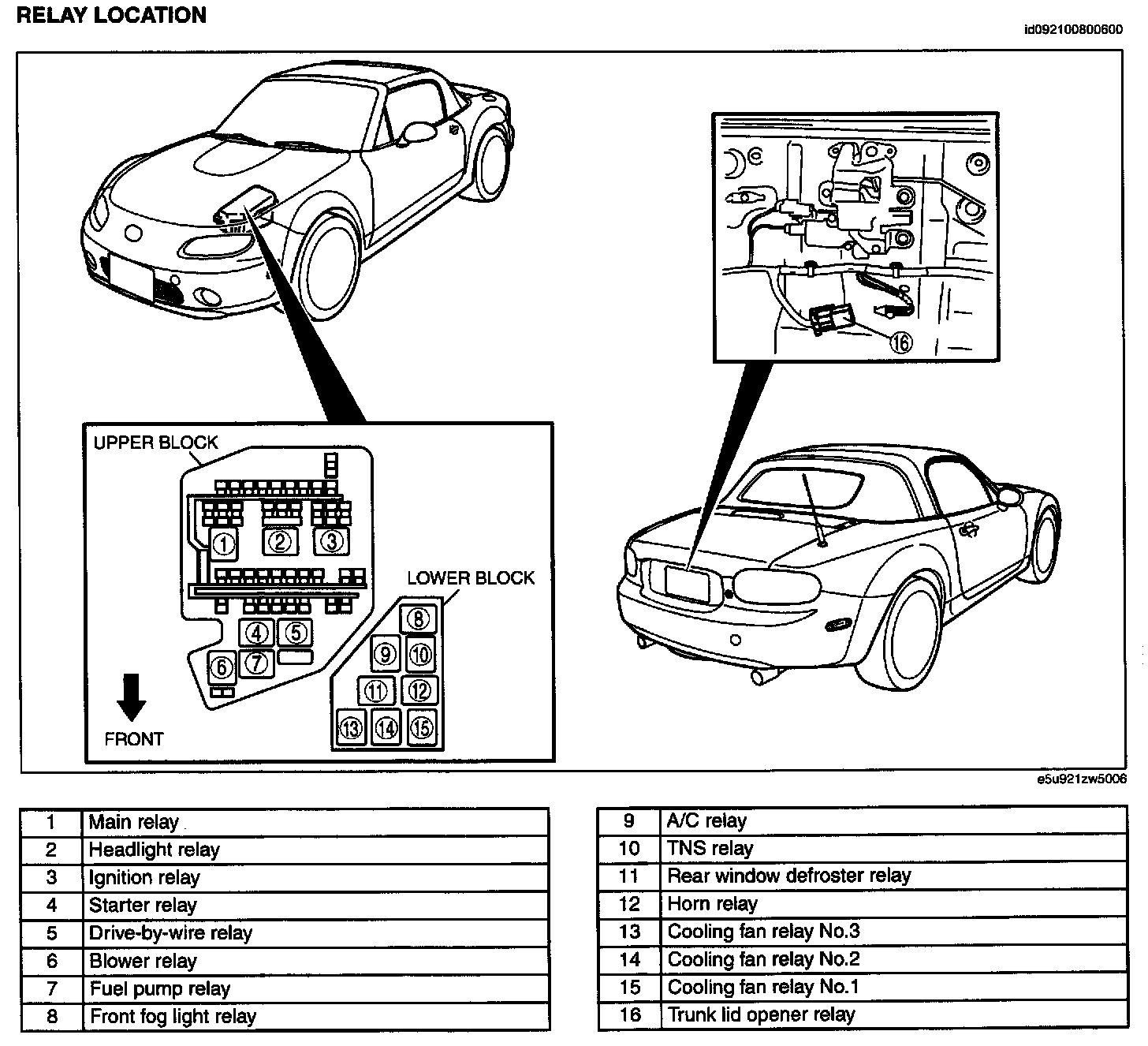

Relay Location:

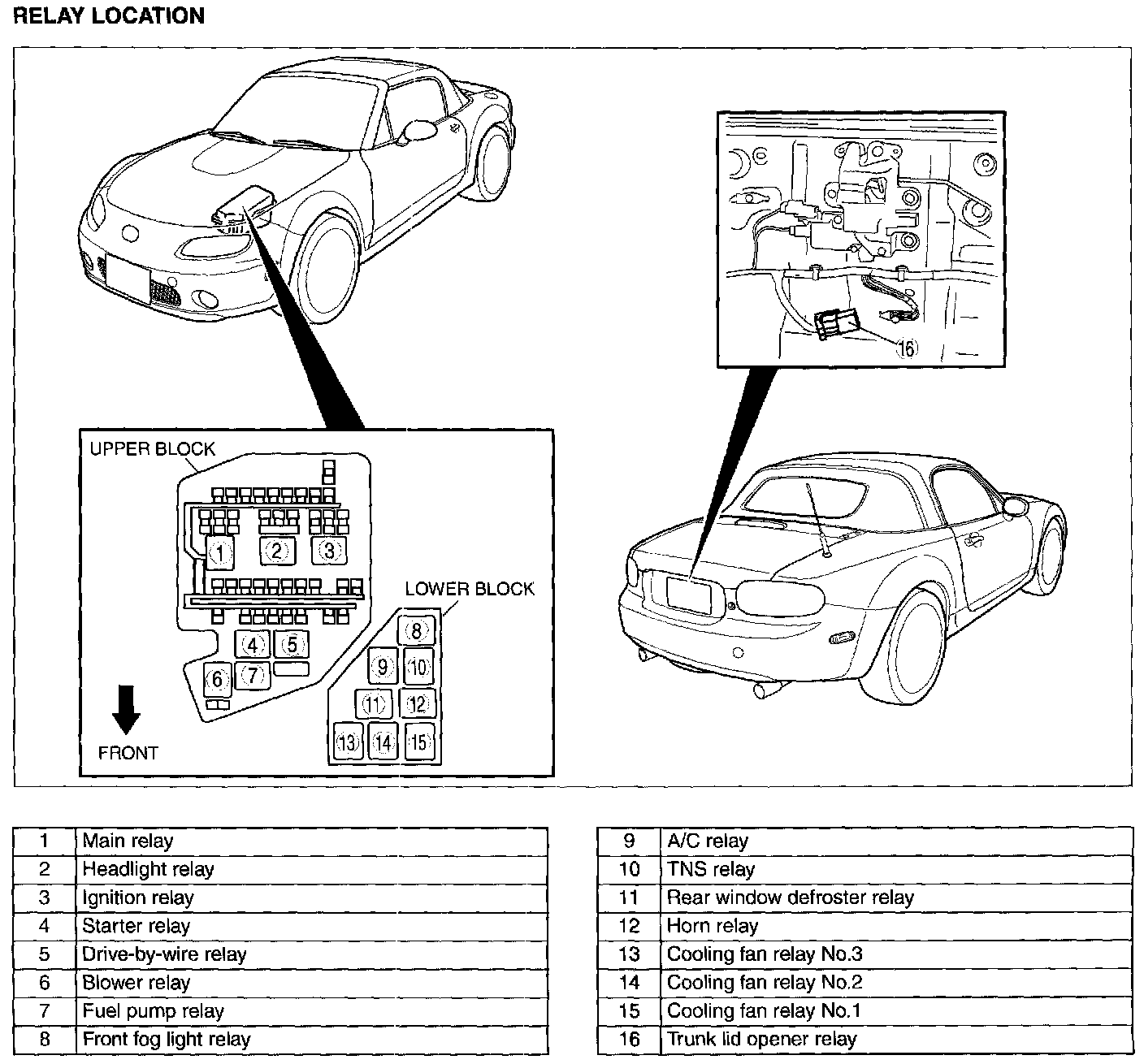

Relay Location:
