Trunk Lid Opener Switch

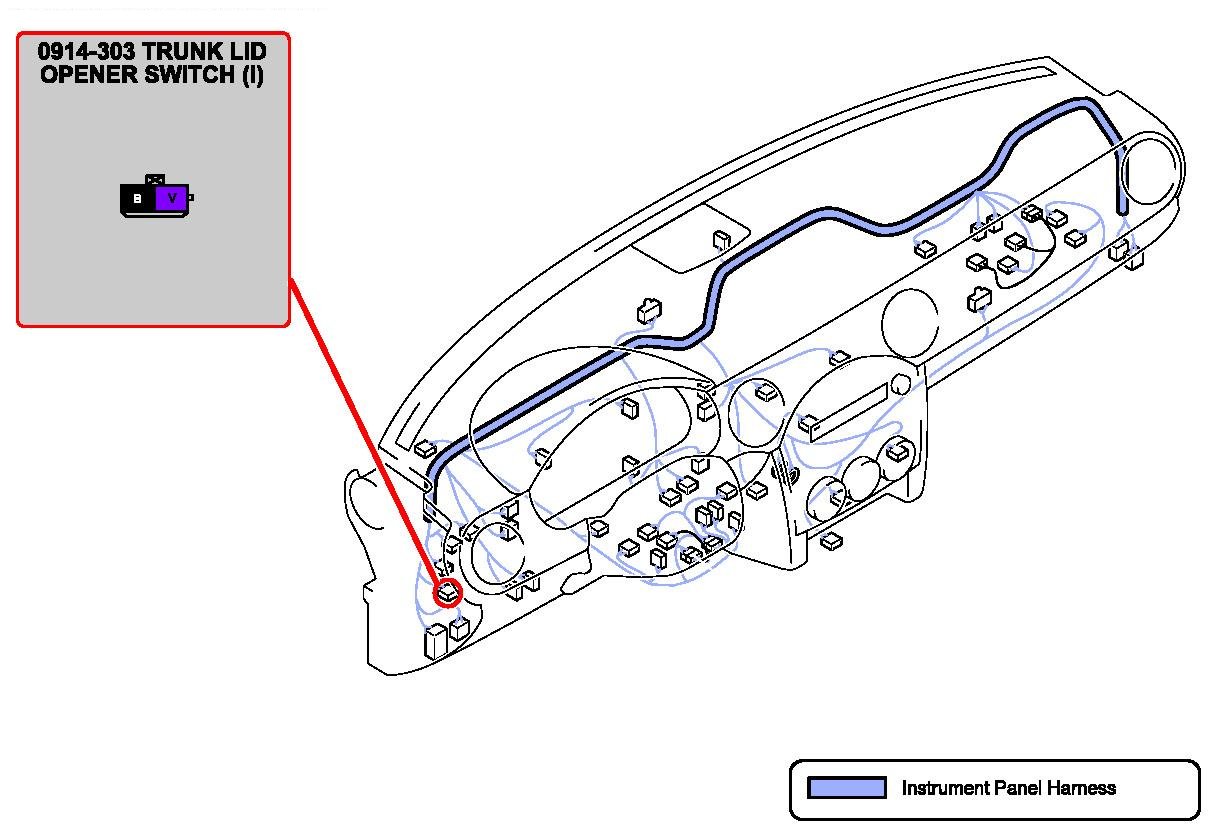

Trunk LID Opener Switch:



Request Switch LH:



Request Switch RH:

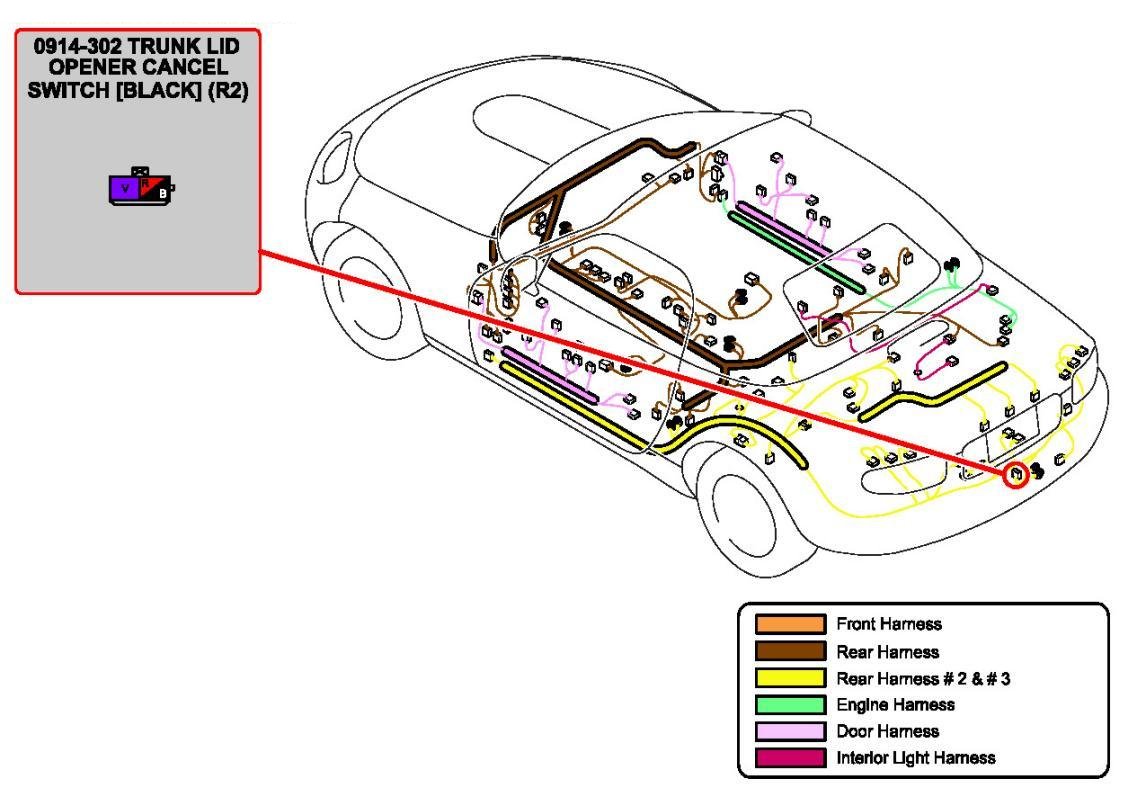

Trunk Lid Opener Cancel Switch:



Request Switch (Lift Gate):
