Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
    • If not as indicated in the table, replace the power outer mirror switch.
    Fig 1: Power Outer Mirror Switch Continuity Chart
    G04971171Courtesy of MAZDA MOTORS CORP.

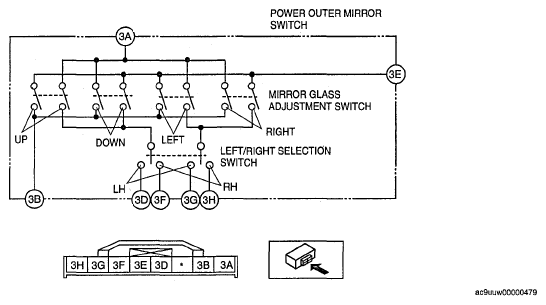

Fig 2: Identifying Power Outer Mirror Switch Connector Terminal
G04971172Courtesy of MAZDA MOTORS CORP.
