Safety Belt Retractor - Front 2-Door, Regular Cab: Notes

NOTE:
  • Shown with interior trim panel removed for clarity.

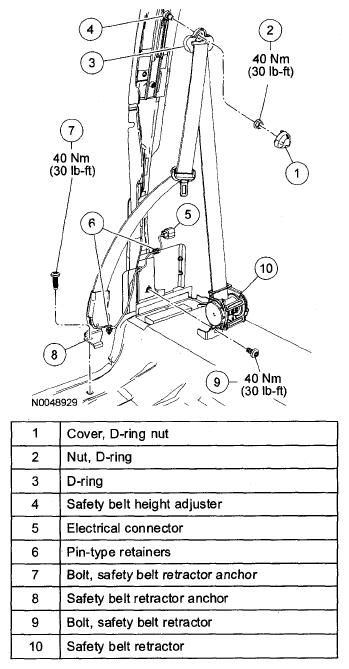

Fig 1: Safety Belt Retractor Replacement Components - Front 2-Door, Regular Cab With Torque Specifications
G04930899
