Smart Junction Box Connector End View (C2280C)

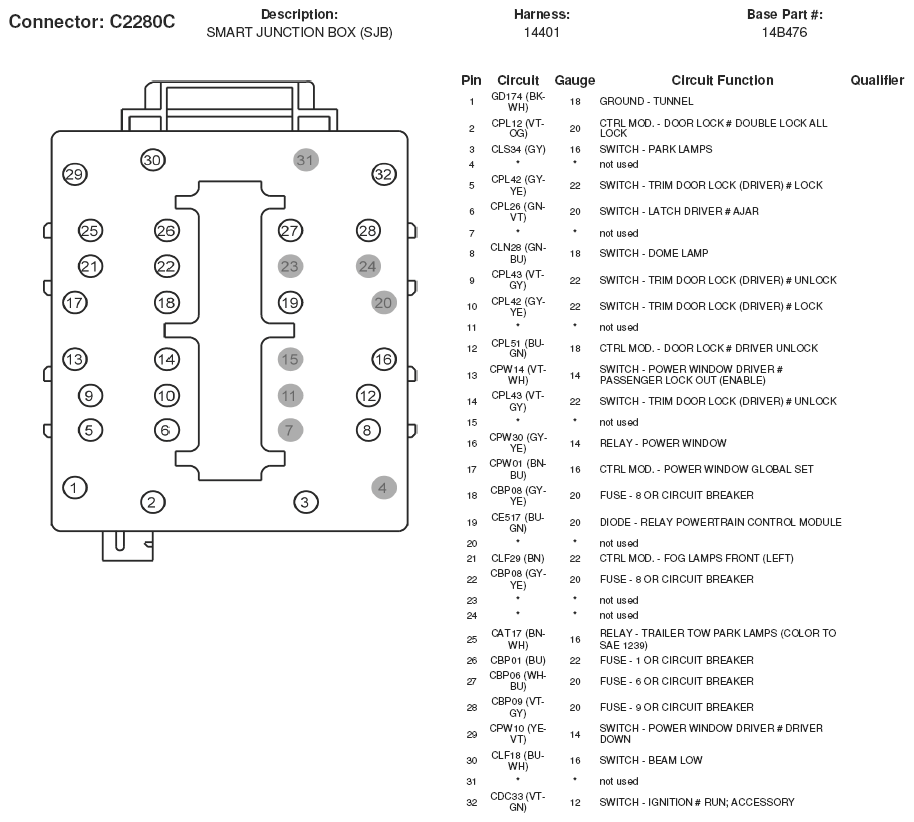

Fig 1: Smart Junction Box Connector End View (C2280C)
G05169327Courtesy of FORD MOTOR CO.
