Power Point Connector End View (C2033)

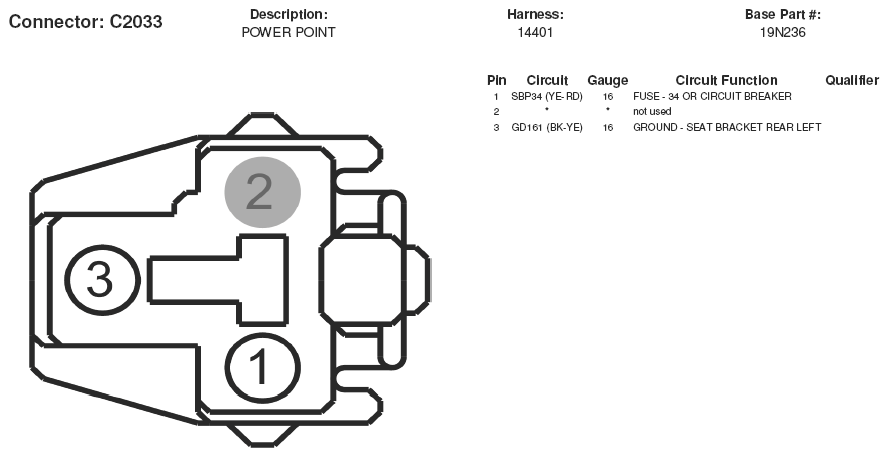

Fig 1: Power Point Connector End View (C2033)
Courtesy of FORD MOTOR CO.
