Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C1454)

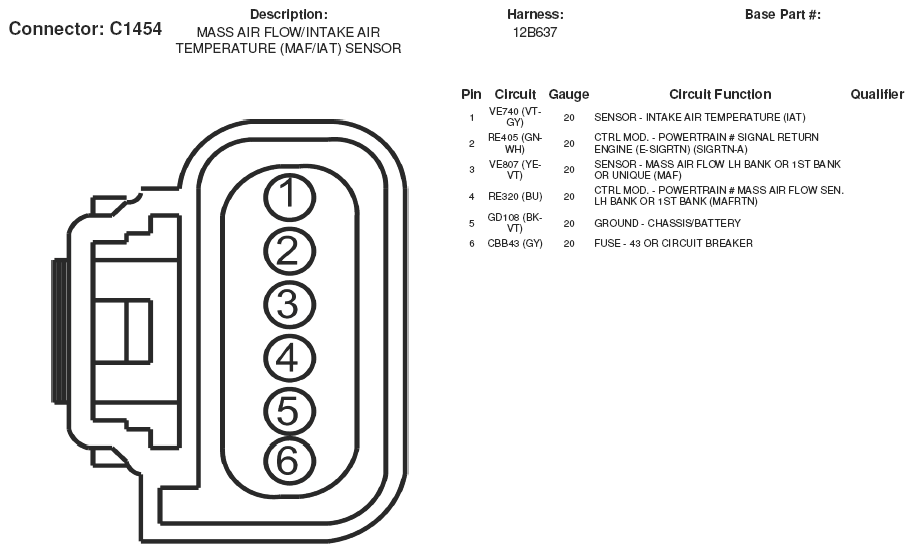

Fig 1: Mass Air Flow Sensor / Intake Air Temperature Sensor Connector End View (C1454)
G05169307Courtesy of FORD MOTOR CO.
