A/C Compressor Cycling Switch Connector End View (C1081)

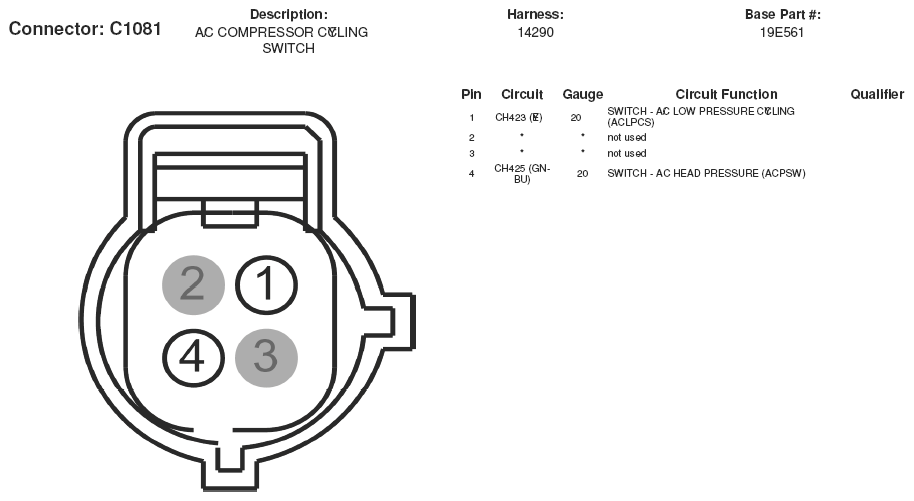

Fig 1: A/C Compressor Cycling Switch Connector End View (C1081)
G05169285Courtesy of FORD MOTOR CO.
